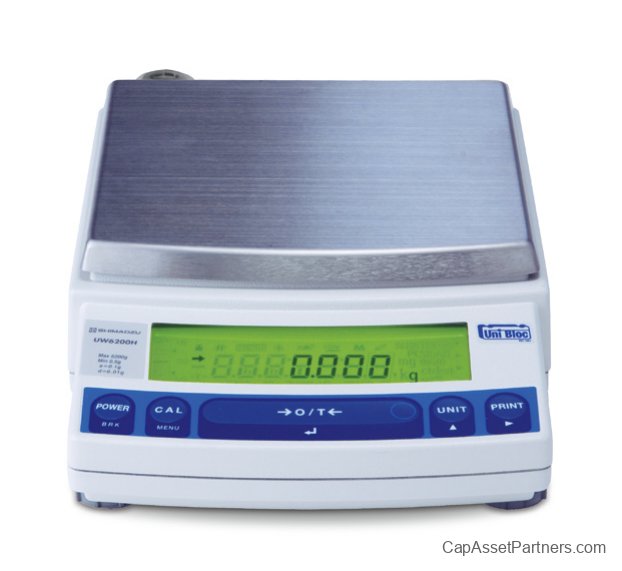

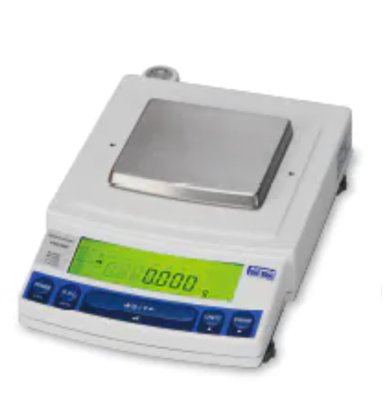

UW Platform Balances (0.001g)
The UW Platform Balances represent the pinnacle of precision weighing technology, designed to meet the rigorous demands of a wide range of applications. Utilizing a robust UniBloc mechanism, these top-loading balances ensure exceptional responsiveness, stability, and longevity. With advanced features and fully automatic calibration functions, the UW Series is a reliable solution for all your weighing needs.
Key Features:
- Fast Weighing: Achieve results in just 0.7 to 1.2 seconds, enhancing efficiency in busy environments.
- Durability: A long life design employs an innovative weighing mechanism for sustained accuracy.
- Illuminated Display: Backlight LCD display ensures visibility in various lighting conditions.
- UniBloc Technology: One-piece force cell technology offers exceptional precision by integrating the core mechanism into a single aluminum alloy block.
- High Resolution: Models feature a remarkable resolution of 1020g/1mg, enabling precise detection of minute weight changes.
- Checkweighing Function: Easily determine if sample weights fall within a specified range, adding versatility to your measuring processes.
- Robust Construction: The base structure is crafted from durable metal die-cast material for enhanced stability.
- Versatile Weighing Options: Incorporates a weigh-below hook for weighing on customized pans tailored to user requirements.
- Piece Counting and Conversions: Standard features include piece counting and seamless unit conversions.
- Automatic Calibration: Touch-key and PSC fully-automatic calibration respond to temperature changes to maintain accuracy.
- Schedule Calibration: Clock-CAL allows automatic calibration at user-set times, up to three times daily.
- Data Management: WindowsDirect® functionality simplifies data transfer to Windows® applications with a single cable connection.
Specifications:
| SKU |
Linearity |
Certification |
Calibration |
| 321-62352-61 |
± 0.002 g |
- |
Built-In |
| 321-62352-62 |
± 0.002 g |
- |
Built-In |
| 321-62352-65 |
± 0.01 g |
- |
Built-In |
| 321-62352-66 |
± 0.02 g |
- |
Built-In |
| 321-62352-68 |
± 0.02 g |
- |
Built-In |
| 321-62352-69 |
± 0.1 g |
- |
Built-In |
| 321-62352-70 |
± 0.1 g |
- |
Built-In |
| 321-62352-91 |
± 0.003 g |
- |
Built-In |
| 321-62352-92 |
± 0.003 g |
- |
Built-In |
| 321-62431-12 |
± 0.002 g |
CSA & UL Approval |
Built-In |
| 321-62431-13 |
± 0.002 g |
CSA & UL Approval |
Built-In |
| 321-62431-17 |
± 0.02 g |
CSA & UL Approval |
Built-In |
Additional Information:
| SKU |
Power Requirement |
Dimensions |
Operating Temperature Range |
| 321-62352-61 |
DC, 10 to 15.5V, 500mA |
12.48 in x 7.48 in x 3.07 in |
5°C to 40°C |
| 321-62352-62 |
DC, 10 to 15.5V, 500mA |
12.48 in x 7.48 in x 3.07 in |
5°C to 40°C |
| 321-62352-65 |
DC, 10 to 15.5V, 500mA |
12.48 in x 7.48 in x 3.07 in |
5°C to 40°C |
| 321-62352-66 |
DC, 10 to 15.5V, 500mA |
12.48 in x 7.48 in x 3.07 in |
5°C to 40°C |
| 321-62352-68 |
DC, 10 to 15.5V, 500mA |
12.48 in x 7.48 in x 3.07 in |
5°C to 40°C |
| 321-62352-69 |
DC, 10 to 15.5V, 500mA |
12.48 in x 7.48 in x 3.07 in |
5°C to 40°C |
| 321-62352-70 |
DC, 10 to 15.5V, 500mA |
12.48 in x 7.48 in x 3.07 in |
5°C to 40°C |
| 321-62352-91 |
DC, 10 to 15.5V, 500mA |
12.48 in x 7.48 in x 3.07 in |
5°C to 40°C |
| 321-62352-92 |
DC, 10 to 15.5V, 500mA |
12.48 in x 7.48 in x 3.07 in |
5°C to 40°C |
| 321-62431-12 |
DC, 10 to 15.5V, 500mA |
12.48 in x 7.48 in x 3.07 in |
5°C to 40°C |
| 321-62431-13 |
DC, 10 to 15.5V, 500mA |
12.48 in x 7.48 in x 3.07 in |
5°C to 40°C |
| 321-62431-17 |
DC, 10 to 15.5V, 500mA |
12.48 in x 7.48 in x 3.07 in |
5°C to 40°C |
