Vacuum Drying Ovens, 0.9-1.9 cu ft.

Get Quote Add to Quote List

Do you have a Vacuum Drying Ovens, 0.9-1.9 cu ft. you want to sell?

We buy used equipment! Learn about selling

Manufactured by: Across International

Category: Vacuum Ovens

Across International Vacuum Drying Ovens, 0.9-1.9 cu ft.

Across International None - Vacuum Ovens

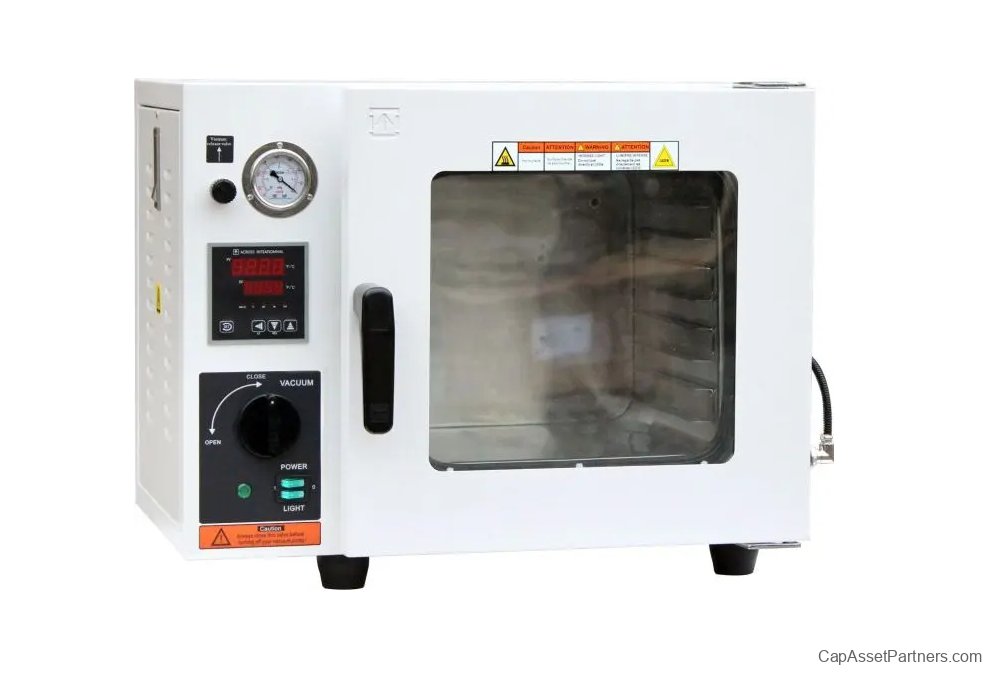

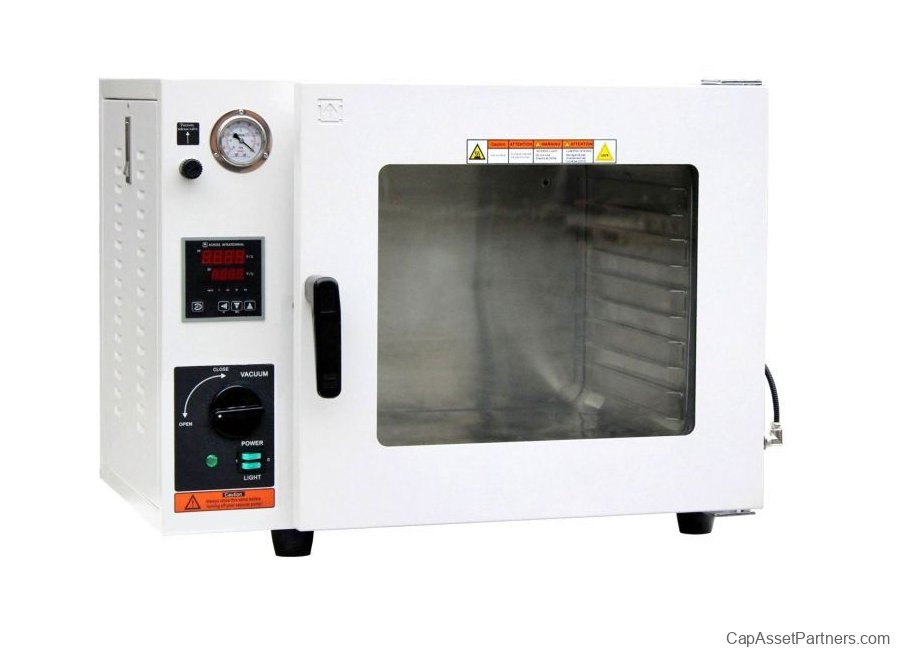

Vacuum Drying Ovens, 0.9-1.9 cu ft.

Experience rapid and efficient drying with our Vacuum Drying Ovens, designed to significantly reduce drying times by maintaining a consistent vacuum level within the chamber. Each unit undergoes a rigorous 100% quality control process, including dual 24-hour vacuum leak tests, ensuring optimal performance.

Key Features:

Precision Measurements: The oil-filled mechanical vacuum gauge delivers accurate readings with an extended lifespan while minimizing the risk of shipping damage.

Temperature Control: Equipped with 3rd generation LCD low proportional gain temperature controllers, these ovens maintain precise temperature settings for consistent results.

Efficient Curing: Specifically designed for the curing and converting of oil extracts, the ovens operate at ideal temperatures to facilitate rapid degassing and purging processes.

Enhanced Visibility: The dual-layer observation window features 1/2" tempered safety glass, allowing for safe and clear monitoring of samples during operation.

Optimal Insulation: A 3" thermal insulation layer minimizes heat loss and keeps the outer surface cool to the touch, improving safety and efficiency.

Durable Design: The easy-to-clean stainless steel interior not only ensures exceptional durability but also simplifies maintenance, making these ovens a practical choice.

Built-in Safety Alerts: An integrated alarm system notifies users when the oven has been deactivated due to out-of-range temperatures, ensuring safe operation.

Important Usage Note:

Before initial use, it is recommended to run the oven at 200°C without vacuum for 15 minutes to eliminate any residues from the manufacturing process.

Specifications:

SKU	Shelf Dimensions	Power Requirement	Temperature Range	Warm Up Time
AT09e.110	11.5" x 11.25"	110V ±10%, 60Hz, 1-PH, 1,500 watts	Ambient to 150°C	To 480°F: 80 minutes
AT09e.220	11.5" x 11.25"	220V ±10%, 60Hz, 1-PH, 1,500 watts	Ambient to 150°C	To 480°F: 80 minutes
AT19e.110	16" x 14.25"	110V ±10%, 60Hz, 1-PH 13.6A, 1,500 watts	Ambient to 150°C	To 480°F: 90 minutes
AT19e.220	16" x 14.25"	220V ±10%, 50/60Hz, 1-PH 6.8A, 1,500 watts	Ambient to 150°C	To 480°F: 90 minutes

Additional Information:

SKU	Dimensions	Max Vacuum	Includes	Temperature Accuracy	Heaters
AT09e.110	23.4" x 17.25" x 19"	~500 microns, varies based on altitude	4 shelves, KF25 quick clamp and centering ring, user's manual	±5% of setpoint	3-sided heating (left 400W, right 400W, bottom 700W)
AT09e.220	23.4" x 17.25" x 19"	~500 microns, varies based on altitude	4 shelves, KF25 quick clamp and centering ring, user's manual	±5% of setpoint	3-sided heating (left 400W, right 400W, bottom 700W)
AT19e.110	28" x 20" x 21.75"	~500 microns, varies based on altitude	5 shelves, KF25 quick clamp and centering ring, user's manual	±5% of setpoint	3-sided heating (left 400W, right 400W, bottom 700W)
AT19e.220	28" x 20" x 21.75"	~500 microns, varies based on altitude	5 shelves, KF25 quick clamp and centering ring, user's manual	±5% of setpoint	3-sided heating (left 400W, right 400W, bottom 700W)
