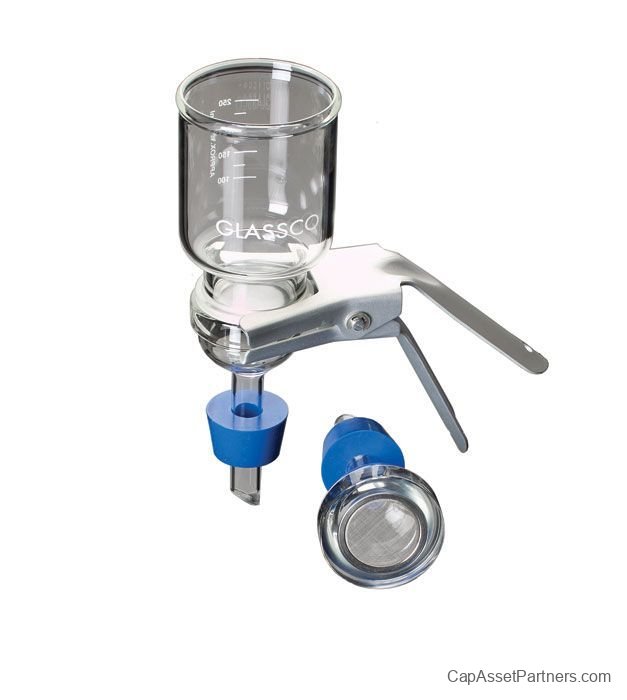

Vacuum Filter Holder Set With Stainless Steel Screen, 47mm
The Vacuum Filter Holder Set with Stainless Steel Screen is expertly designed for analyzing particulate contamination in hydraulic fluids and oils. Utilizing methods such as gravimetric analysis or particulate counting, this versatile tool is ideal for laboratories engaged in material analysis and can also be applied in exfoliative cytology applications.

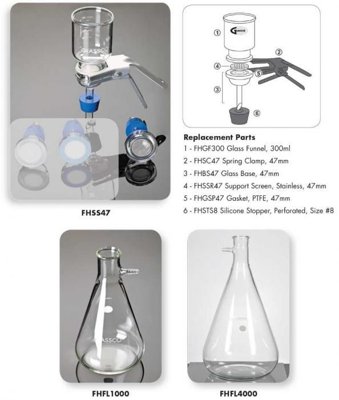

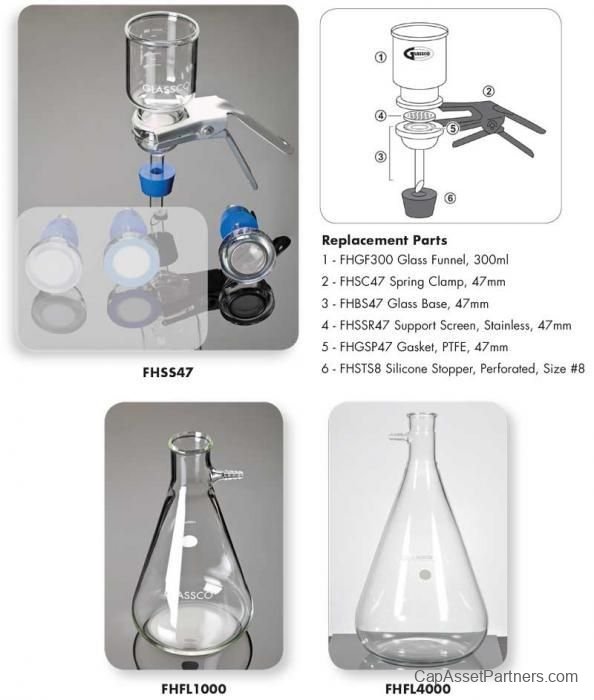

Complete Set Includes:
- Borosilicate Glass Funnel and Base
- Anodized Aluminum Spring Clamp
- Stainless Steel Filter Screen Support
- Perforated Silicone Stopper (#8)
For added convenience, individual parts are also available separately, providing flexibility for your laboratory needs.
Key Specifications:
| SKU |
Diameter |
Height |
For Use With |
| FHSS47 |
7.6 cm (Filter: 47 mm) |
22.9 cm |
Analysis of Contamination in Hydraulic Fluid |
Additional Information:
| SKU |
Inlet/Outlet |
Filtration Area |
Sterilization |
| FHSS47 |
6mm O.D. Tubulated Cap Sidearm to Vacuum |
9.6 cm² |
30 UV Sterilize/Autoclave without Filter in Place |
