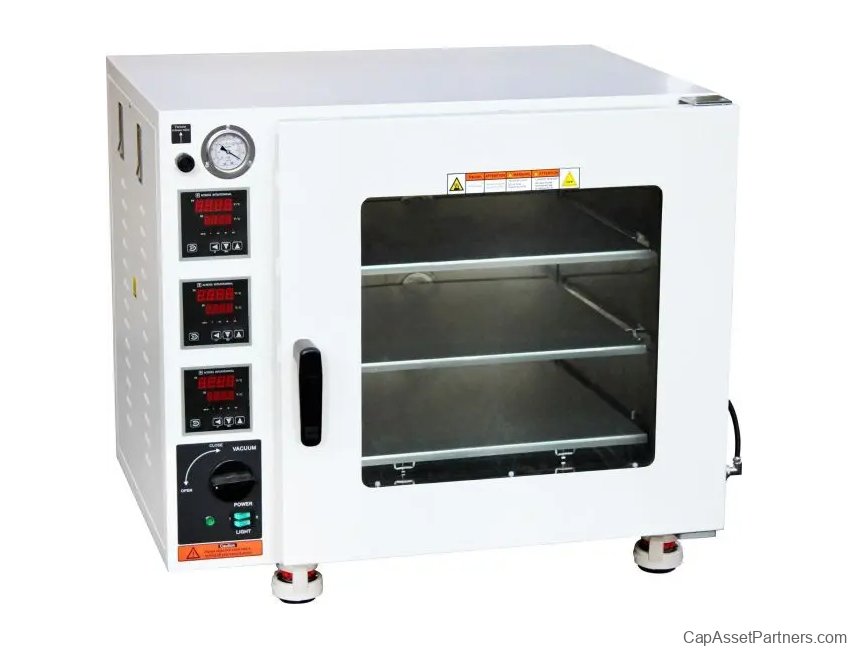

Vacuum Ovens with Heated Shelves, 3.2 cu ft
The 3.2 Cu Ft Vacuum Oven is an essential tool for achieving unparalleled precision in thermal processing. Designed with advanced internal shelf heating technology and an in-shelf temperature sensor, this oven guarantees uniform temperature distribution, rapid heating rates, and minimal heat loss. Each unit undergoes stringent quality control, including a dual 24-hour vacuum leak test to ensure reliability and performance.
Key Features:
- Accurate Measurements: An oil-filled mechanical vacuum gauge provides enhanced accuracy, longevity, and protection against shipping damage.
- Superior Viewing: The dual-layer observation window features 5/8" tempered safety glass, allowing for safe monitoring of samples without compromising the vacuum integrity.
- Flexible Heating Options: Equipped with three non-removable aluminum heating shelves, each featuring individual in-shelf temperature sensors, a temperature controller, and a dedicated heater for precise temperature management.
- Advanced Temperature Control: 3rd generation low proportional gain temperature controllers ensure consistent temperature accuracy throughout the heating process.
- Durable Interior: The easy-to-clean stainless steel interior not only enhances durability but also simplifies maintenance, making it ideal for frequent use.
- Optimized for Sensitive Materials: The vacuum environment effectively lowers the boiling point, making it perfect for processing heat-sensitive materials and significantly reducing drying times for pastes and powders.
- Safety Features: A built-in alarm system alerts operators when the oven shuts down due to safety circuitry triggered by out-of-range temperatures.
- Mobility and Stability: Built-in swivel casters with leveling feet allow for easy movement and secure positioning within any laboratory setting.
- Ideal for Oil Extracts: This vacuum oven is recommended for the rapid curing and converting of oil extracts, operating at temperatures that facilitate efficient degassing and purging processes.
Specifications:
| SKU |
Chamber Size |
# of Shelves |
Warm Up Time |
Shelf Dimensions |
| AT32e.110 |
18" x 18" x 18" |
3 non-removable aluminum shelves |
To 100°F: 35 minutes |
17.5" x 17.25" |
| AT32e.220 |
18" x 18" x 18" |
3 non-removable aluminum shelves |
To 100°F: 35 minutes |
17.5" x 17.25" |
Additional Info:
| SKU |
Dimensions |
Max Vacuum |
Includes |
Temperature Accuracy |
| AT32e.110 |
30.5" x 24" x 29" |
~500 microns, varies based on altitude |
KF25 quick clamp and centering ring, user's manual |
±5% of setpoint |
| AT32e.220 |
30.5" x 24" x 29" |
~500 microns, varies based on altitude |
KF25 quick clamp and centering ring, user's manual |
±5% of setpoint |
