Valleylab Force 1C

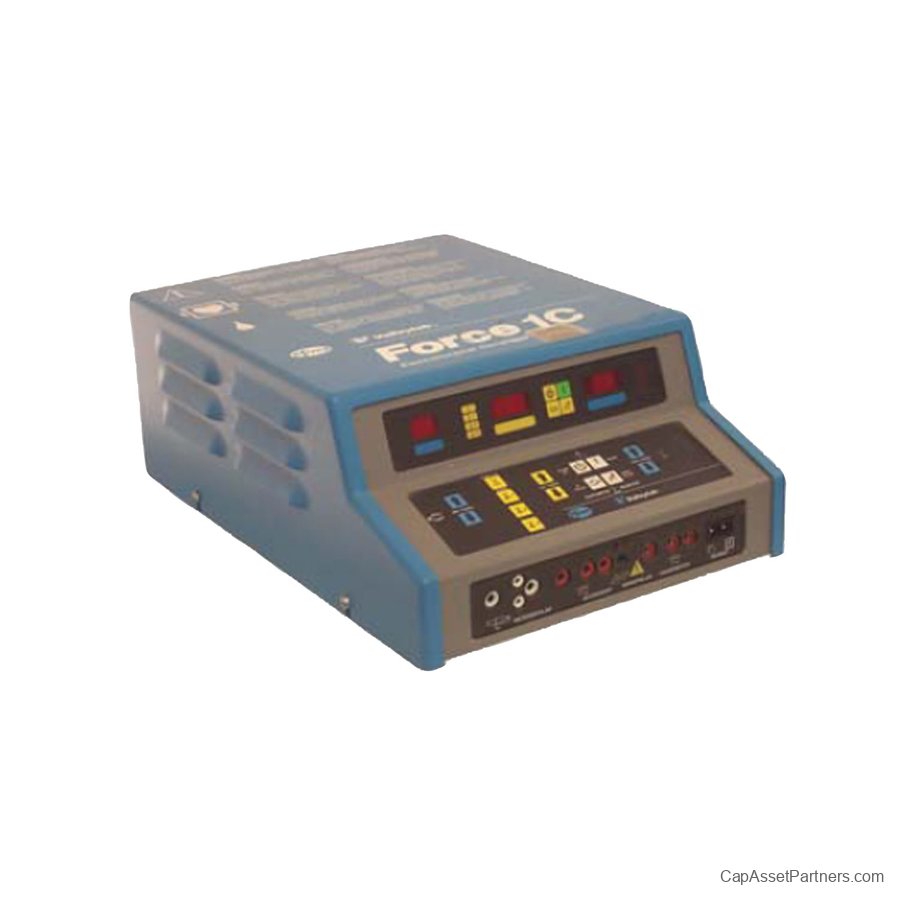

Valleylab Force 1C Electrosurgical Generator

The Valleylab Force 1C is a state-of-the-art digital electrosurgical generator specifically designed to meet the needs of a variety of surgical environments, from outpatient procedures to comprehensive inpatient surgical applications. Its compact design ensures it can seamlessly integrate into any surgical setting, maximizing both space and functionality.
Key Features:

• Versatile Applications: The Force 1C is suitable for a wide range of surgical uses, providing reliable performance for both outpatient and full-scale surgical procedures.

• Monopolar and Bipolar Outputs: This generator offers both monopolar and bipolar outputs, allowing for precise electrosurgical cutting and coagulation in various surgical scenarios.

• Enhanced Safety: Equipped with audible and visual alarms, the Force 1C ensures the safety of both patients and medical personnel, alerting users to any operational issues in real-time.

With the Valleylab Force 1C, healthcare providers can deliver efficient, effective, and safe electrosurgical procedures, making it an essential addition to any surgical toolkit.

Valleylab Force 1C Specifications

---

Physical Weight & Dimensions

• Dimensions: 6 × 11 × 17 inches (15 × 28 × 43 cm)

• Weight: 5 lbs (6.8 kg)

---

Output Waveform

• Cut: 516 kHz sinusoid

• Blend 1: 516 kHz at 70% duty cycle, recurring at 31 kHz

• Blend 2: 516 kHz bursts at 45% duty cycle, recurring at 31 kHz

• Blend 3: 516 kHz bursts at 20% duty cycle, recurring at 31 kHz

• Coag: 516 kHz damped bursts, repetition frequency of 31 kHz

• Micropolar: 516 kHz sinusoid, unmodulated

---

Output Characteristic

• Cut:

• Max P-P Voltage: 2400 V (open circuit)

• Rated Load: 300 ohms

• Nominal Power: 200 W

• Crest Factor: 1.8 @ 100 W

• Blend 1:

• Max P-P Voltage: 2800 V (open circuit)

• Rated Load: 300 ohms

• Nominal Power: 175 W

• Crest Factor: 2.7 @ 100 W

• Blend 2:

• Max P-P Voltage: 3200 V (open circuit)

• Rated Load: 300 ohms

• Nominal Power: 150 W

• Crest Factor: 3.3 @ 100 W

• Blend 3:

• Max P-P Voltage: 3600 V (open circuit)

• Rated Load: 300 ohms

• Nominal Power: 125 W

• Crest Factor: 4.6 @ 100 W

• Coag:

• Max P-P Voltage: 5200 V (open circuit)

• Rated Load: 300 ohms

• Nominal Power: 75 W

• Crest Factor: 8.0 @ 50 W

• Micropolar:

• Max P-P Voltage: 900 V (open circuit)

• Rated Load: 100 ohms

• Nominal Power: 50 W

• Crest Factor: 1.8 @ 40 W

---

Input Power Source

• Operating Range: 85-135 or 170-270 VAC

• Nominal Range: 110-120 or 220-240 VAC

• Idle:

• Max Current: 0.5 A

• Max Power: 60 W

• Cut:

• Max Current: 5.0 A

• Max Power: 600 W

• Coag:

• Max Current: 3.0 A

• Max Power: 400 W

• Micropolar:

• Max Current: 2.0 A

• Max Power: 180 W

---

Line Regulation

• Variation in output power into nominal load will be no more than 20% or 5 watts (whichever is greater) for input between 85-135 volts or 170-270 volts.

---

REM Contact Quality Monitor

• Measurement Frequency: 140 kHz ± 20 kHz

• Measurement Current: Max 3.0 mA

---

Low Frequency Leakage

• Nominal polarity, intact chassis ground: <10 µA

• Ground open: <50 µA

• Source current reverse polarity, ground open: <50 µA

• Sink current, 135 VAC applied, all inputs: <20 µA

• Chassis source current, ground open: <100 µA

---

Low Frequency Leakage (Micropolar and Monopolar)

• Micropolar RF leakage current: <150 mA

• Monopolar RF leakage current: <150 mA
