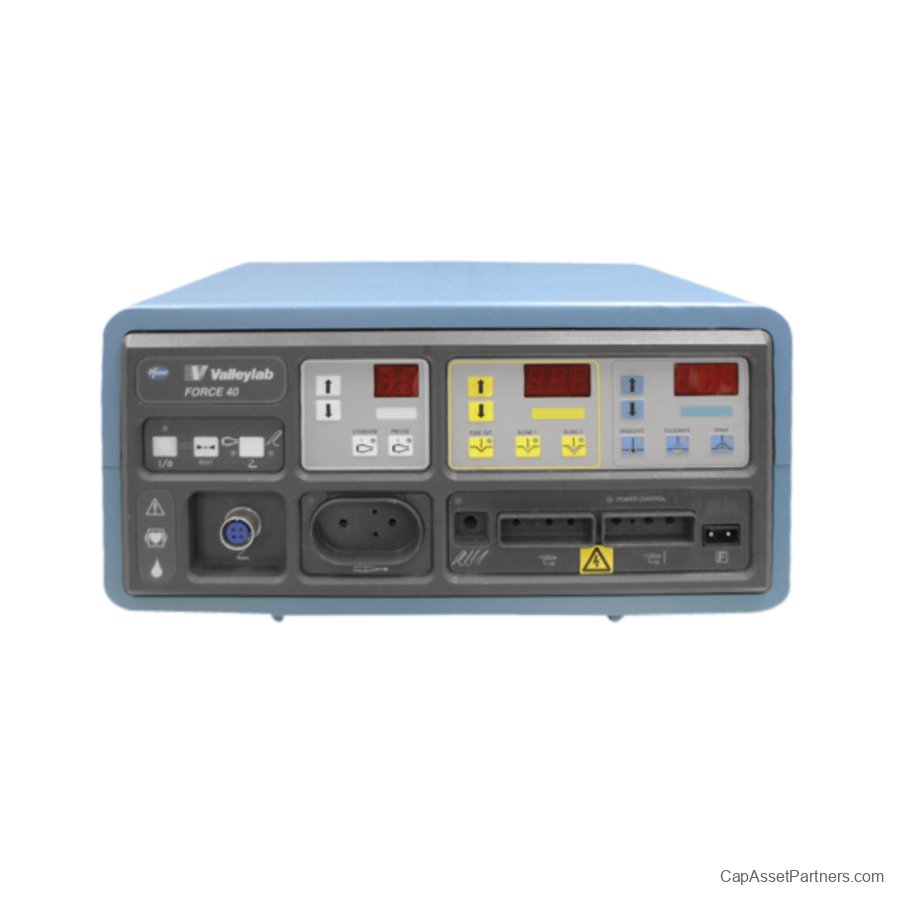

Valleylab Force 40 ESU / Electrosurgical Unit

Introducing the Valleylab Force 40 Electrosurgical Unit (ESU) – a state-of-the-art digital surgical tool designed for precision and versatility in the operating room. The Valleylab Force 40 enhances your surgical experience by delivering reliable power output, allowing for optimal performance across a wide variety of cautery and procedural applications.
With its advanced features, this electrosurgical unit facilitates seamless transitions between cut and bipolar modes, including a blend option for enhanced control during delicate procedures. Surgeons can achieve superior outcomes while ensuring patient safety and comfort.
Upgrade your surgical suite with the Valleylab Force 40 ESU, where innovation meets reliability, making it an essential asset for modern medical practices. Experience the difference in surgical precision and efficiency with this top-tier electrosurgical unit.

Valleylab Force 40 ESU / Electrosurgical Unit Specifications

General

• Automatic Activation Impedance: 40-100 ohms

• Automatic Deactivation Impedance: <20 ohms, >2000 ohms

• Time Delay Range: 0.1 to 5.1 seconds

• Activation Tone: 45 to 65 dBA

• Alarm Tone: >65 dBA

• Weight: 20 lbs (9.1 kg)

• Dimensions: 7.8 in (H) × 16.1 in (W) × 11.9 in (D) inches (199 mm × 409 mm × 303 mm)

• Power Supply: Operates on 110/240V, 50/60Hz

Output Waveform

• Cut: 500 kHz sinusoidal

• Blend 1: 500 kHz bursts of sinusoidal @ 50% duty cycle, recurring @ 31.25 kHz

• Blend 2: 500 kHz bursts of sinusoidal @ 37.5% duty cycle, recurring @ 31.25 kHz

• Desiccate: 500 kHz damped sinusoidal burst with a repetition frequency of 250 kHz

• Fulgurate: 500 kHz damped sinusoidal burst with a repetition frequency of 62.5 kHz

• Spray: 500 kHz damped sinusoidal burst with a repetition frequency of 31.25 kHz

• Standard Bipolar: 500 kHz sinusoidal

• Precise Bipolar: 500 kHz sinusoidal

Output Characteristics

• Cut: Max P-P 3300, Rate Load 300, Max Power 300, Crest Factor 2.1 @ 100W

• Blend 1: Max P-P 3800, Rate Load 300, Max Power 250, Crest Factor 2.1 @ 100W

• Blend 2: Max P-P 4000, Rate Load 300, Max Power 200, Crest Factor 2.1 @ 100W

• Desiccate: Max P-P 3500, Rate Load 300, Max Power 200, Crest Factor 2.1 @ 100W

• Fulgurate: Max P-P 6500, Rate Load 300, Max Power 150, Crest Factor 2.1 @ 100W

• Spray: Max P-P 9000, Rate Load 300, Max Power 150, Crest Factor 2.1 @ 100W

• Standard Bipolar: Max P-P 550, Rate Load 100, Max Power 50, Crest Factor 2.1 @ 100W

• Precise Bipolar: Max P-P 550, Rate Load 100, Max Power 50, Crest Factor 2.1 @ 100W
