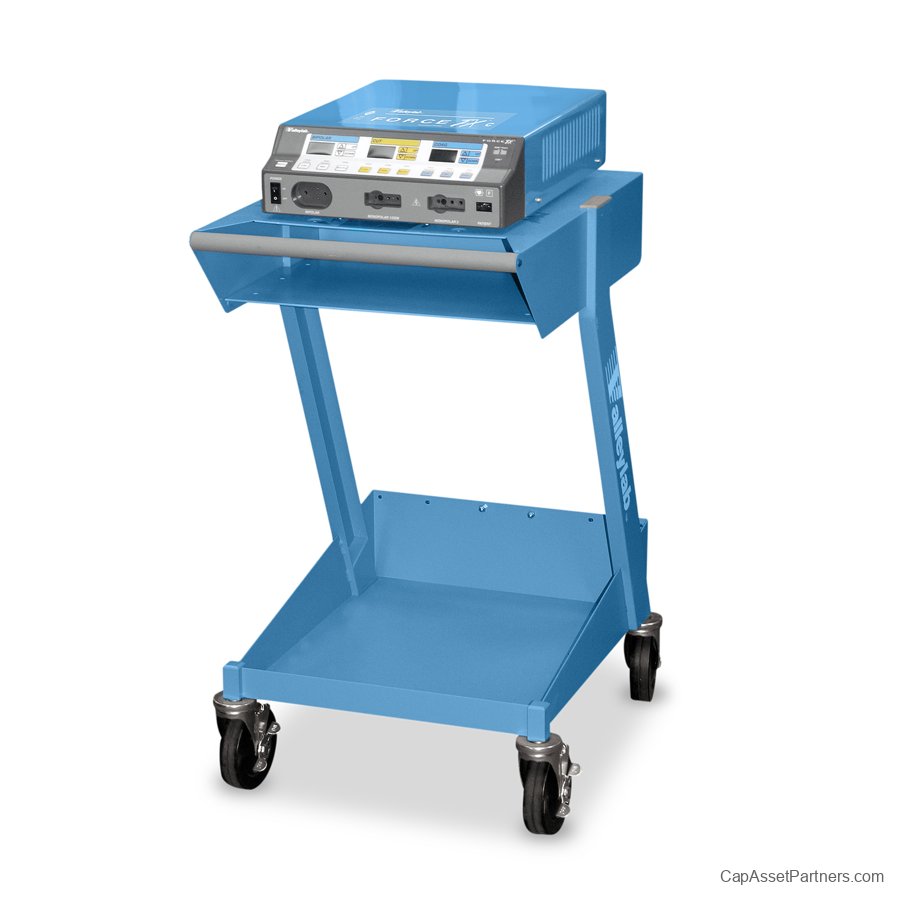

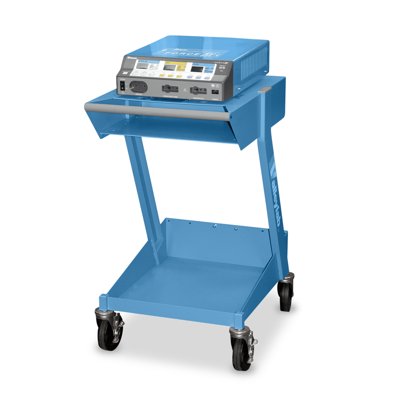

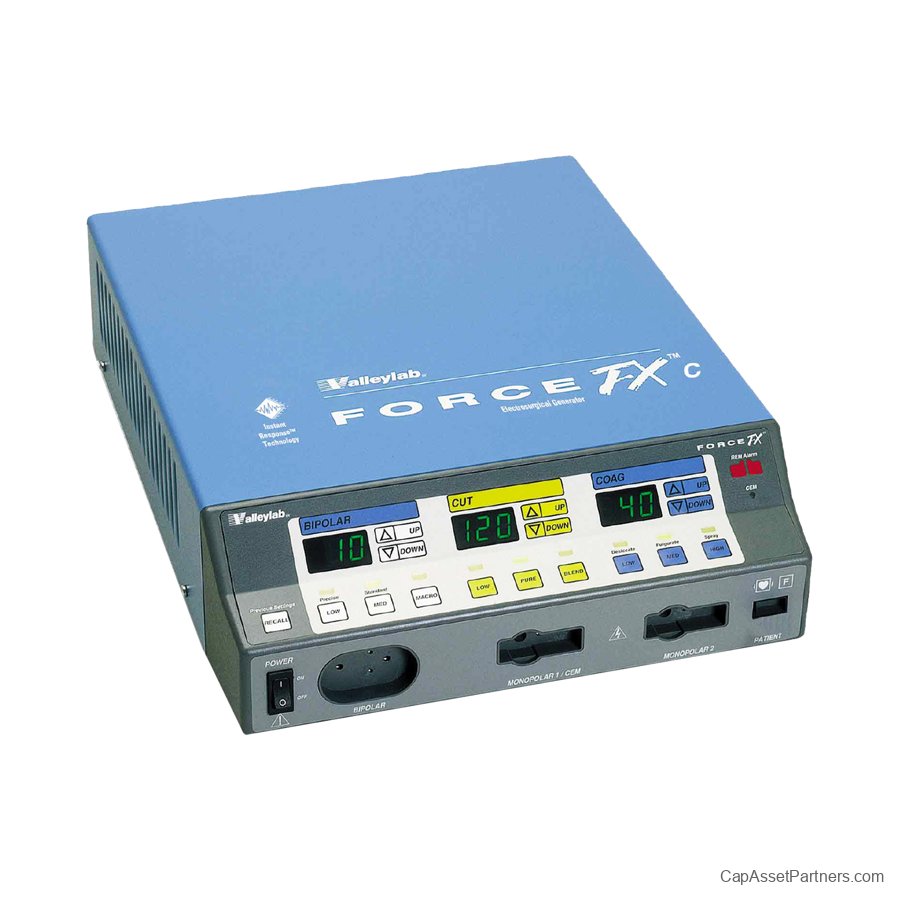

ValleyLab Force FX-C ESU

ValleyLab Force FX-C ESU: Precision Electrosurgery at Your Fingertips
The ValleyLab Force FX-C Electrosurgical Unit (ESU) sets a new standard in surgical efficiency and safety, featuring cutting-edge Instant Response™ Technology. This innovative system delivers enhanced performance at lower power settings, allowing surgeons to minimize tissue damage and reduce the risk of unwanted neuromuscular stimulation, while eliminating the need for increasing generator power.
Superior Cutting Performance Across All Tissue Types
With its advanced automatic adjustment capabilities, the Force FX-C generator skillfully responds to changes in tissue, ensuring consistent power delivery and minimizing drag during surgeries. This ensures smooth and effective cutting through a variety of tissue types, enhancing overall surgical effectiveness.
Enhanced Safety Features for Electrosurgical Procedures
The Force FX-C is designed with safety in mind. Utilizing Instant Response™ technology, it significantly reduces capacitive coupling by 30-50%, mitigating the risk of vacuums and neuromuscular effects associated with electrosurgery. By limiting RMS voltage and high frequency harmonics, this device promotes precise energy delivery and minimizes collateral damage during procedures.
Innovative Instant Response™ Technology Explained
What sets the Force FX-C apart is its sophisticated feedback system, monitoring tissue conditions 200 times per second to adjust voltage and current in real time. This ensures the generator accurately delivers the selected power level across diverse tissue types, achieving an unparalleled Power Efficiency Rating (PER) of

• Surgeons can confidently rely on the consistent performance of the Force FX-C to adapt seamlessly to their surgical needs.

Key Features of the ValleyLab Force FX-C ESU:

• Instant Response™ Technology: Maintains constant power delivery across various tissue types, enhancing surgical outcomes.

• Safety and Efficiency: Operates effectively at lower power settings to reduce tissue damage and neuromuscular risks.

• Versatile Cutting Modes: Offers three distinct cut modes—Low Cut, Pure Cut, and Blend—allowing for tailored surgical techniques.

• Comprehensive Coagulation Options: Four coagulation modes provide flexibility for different procedures, including Desiccate, Fulgurate (high and low crest factor), and Spray.

• Bipolar Functionality: Three controlled bipolar modes—Precise, Standard, and Macrobipolar, designed to accommodate varied surgical applications with low sparking.

• Compatibility with Other Surgical Devices: Works seamlessly with Force Argon™ II, CUSA EXcel™, and OptiMumm™ smoke evacuator among others, ensuring a comprehensive surgical solution.

The ValleyLab Force FX-C ESU combines advanced technology with user-friendly features, making it an essential instrument for modern surgical practices. Experience the difference in precision and reliability with this state-of-the-art electrosurgical unit.

ValleyLab Force FX-C ESU Specifications:

Output Waveforms:

• Bipolar:

• Precise: 470 kHz sinusoid

• Standard: 470 kHz sinusoid

• Macro: 470 kHz sinusoid

• Monopolar Cut:

• Low: 390 kHz sinusoid (maximum voltage limited)

• Pure: 390 kHz sinusoid

• Blend: 390 kHz bursts, recurring at 27 kHz intervals (50% duty cycle)

• Monopolar Coag:

• Desiccate: 240 kHz sinusoid (39 kHz repetition, 8% duty cycle)

• Fulgurate: 390 kHz damped sine bursts (30 or 57 kHz into 500 ohms)

• Spray: 390 kHz damped sine bursts, frequencies 21 kHz < f < 35 kHz, random 250 Hz envelope

Output Power Variation:

• Changes by less than 15% or 5 watts (greater) with line voltage variations from 104-132V and 208-264V (rated load).

Low Frequency Leakage (50-60 Hz):

• Normal polarity, intact chassis ground: < 10 µA

• Normal polarity, ground open: < 50 µA

• Reverse polarity, ground open: < 50 µA

• Sink current, 140V applied: < 50 µA

Power Efficiency Rating (PER):

• PER = 98 (measures ability to deliver selected power into varying tissue types).

Physical Weight & Dimensions:

• Height: 4-3/8 in (11.1 cm)

• Width: 14 in (35.6 cm)

• Depth: 17 in (43.2 cm)

Input Power Requirements:

• Operating range: 85 to 132 AC volts

• Maximum current: 7 A (Cut), 4 A (Coag)

High Frequency Leakage:

• Bipolar: < 60 mA (rms)

• Monopolar: < 150 mA (rms)

REM™ Contact Quality Monitoring System:

• Measurement Frequency: 80 kHz ± 10 kHz

• Measurement Current: < 10 µA

• Acceptable Resistance Ranges:

• REM™ pad: 5-135 ohms

• Non-REM™ pad: < 20 ohms

Output Characteristics:

• Bipolar:

• Precise: Max P-P Voltage: 450V, Rated Load: 100?, Max Power: 70W, Crest Factor: 1.5

• Standard: Max P-P Voltage: 320V, Rated Load: 100?, Max Power: 70W, Crest Factor: 1.5

• Macro: Max P-P Voltage: 750V, Rated Load: 100?, Max Power: 70W, Crest Factor: 1.5

• Monopolar Cut:

• Low: Max P-P Voltage: 1350V, Rated Load: 300?, Max Power: 300W, Crest Factor: 1.5

• Pure: Max P-P Voltage: 2300V, Rated Load: 300?, Max Power: 300W, Crest Factor: 1.5

• Blend: Max P-P Voltage: 3300V, Rated Load: 300?, Max Power: 200W, Crest Factor: 2.5

• Monopolar Coag:

• Desiccate: Max P-P Voltage: 3500V, Rated Load: 500?, Max Power: 120W, Crest Factor: 5

• Fulgurate (High): Max P-P Voltage: 8500V, Rated Load: 500?, Max Power: 120W, Crest Factor: 7

• Fulgurate (Low): Max P-P Voltage: 6900V, Rated Load: 500?, Max Power: 120W, Crest Factor: 5.5

• Spray: Max P-P Voltage: 9000V, Rated Load: 500?, Max Power: 120W, Crest Factor: 8

CEM™ Mode:

• Monopolar Cut (Low): Max P-P Voltage: 1000V, Rated Load: 300?, Max Power: 100W, Crest Factor: 1.5

• Monopolar Coag (Desiccate): Max P-P Voltage: 3500V, Rated Load: 500?, Max Power: 70W, Crest Factor: 5

Crest Factor indicates the waveform's ability to coagulate without cutting.
