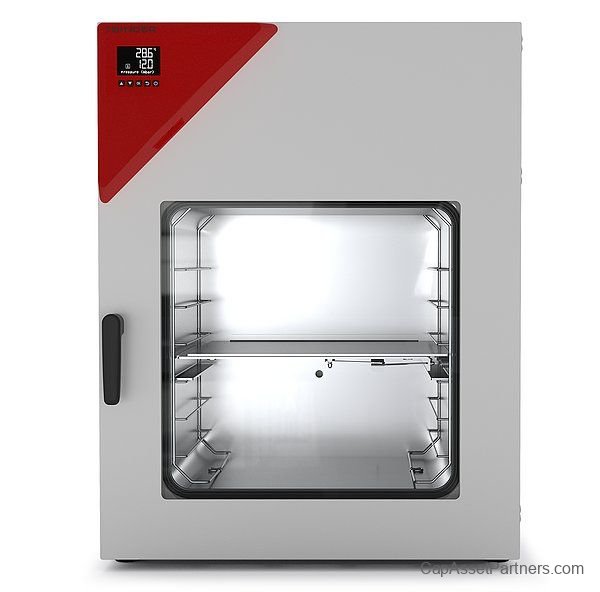

VD Series Vacuum Drying Chambers for Non-Flammable Solvents
The VD Series Vacuum Drying Chambers are engineered to provide exceptional performance for drying applications involving non-flammable solvents. With precise temperature control and a focus on gentle drying techniques, these chambers are equipped with BINDER's patented expansion rack technology, enhancing heat transfer efficiency. The flexible shelving system allows for easy adjustment to accommodate various drying requirements, while the smooth interior surfaces ensure effortless cleaning.
Key Features:
- Temperature Range: Offers a range from +9°C above ambient temperature up to +220°C.
- User-Friendly Controller: Digital display for real-time monitoring of both pressure and temperature.
- Automated Drying Monitoring: Program-controlled process with automatic ventilation at the drying cycle's conclusion.
- Data Logging: An internal logger records measurable values, with data accessible in an open format via USB.

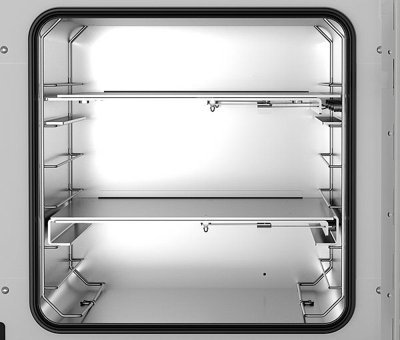

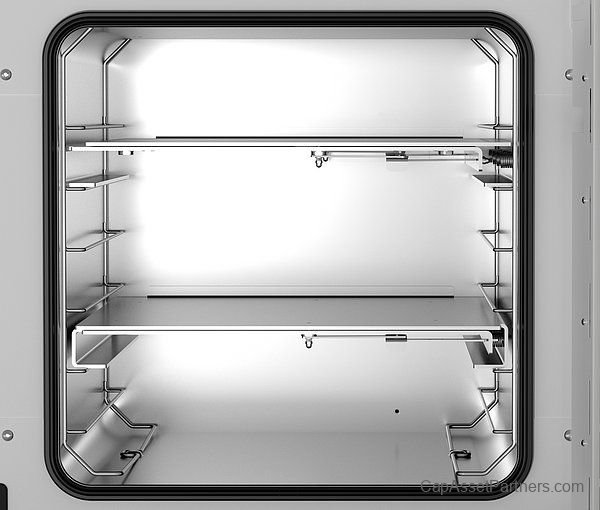

- Customizable Shelving: Comes with 1 aluminum expansion rack, which can be repositioned as needed.
- Inert Gas Connection: Designed to facilitate safe operations in sensitive applications.
- Universal Access Port: DN 16 port allows for easy integration of external measuring devices.

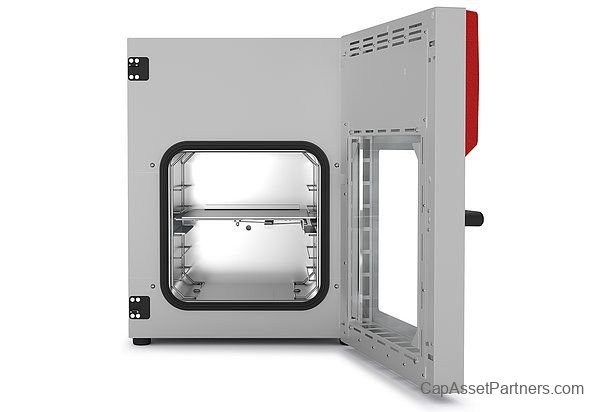

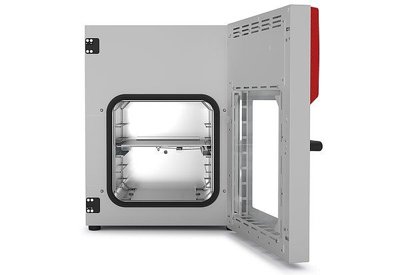

- Safety Features: Shatterproof, spring-mounted safety glass panel enhances user safety.
- Large Viewing Window: Features an optional interior lighting system for improved visibility.
- Computer Interface: Equipped with Ethernet for seamless connectivity.
- Relay Outputs: Two relay outputs available at 24 V DC, with a maximum current of 0.4 A.
Benefits:
- Rapid and gentle drying capabilities tailored to preserve material integrity.

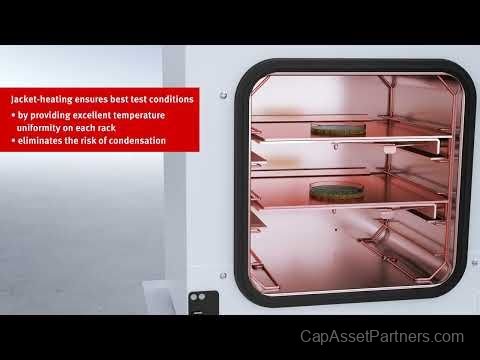

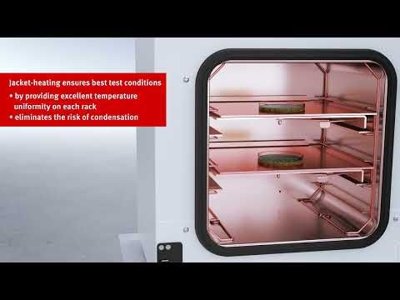

- Superior heat transfer thanks to expansive thermal conducting plates.
- Enhanced safety measures ensure secure operation during use.
- Optional integration into a modular system that includes vacuum pump and pump chamber enhancements.
Specifications:
| SKU |
Temperature Range |
Temperature Fluctuation |
Temperature Variation |
| 9630-0001 |
220°C +9°C |
± 0.1 at 100°C |
± 1.0 at 100°C |
| 9630-0005 |
220°C +9°C |
± 0.1 at 100°C |
± 1.0 at 100°C |
| 9630-0002 |
220°C +9°C |
± 0.1 at 100°C |
± 1.2 at 100°C |
| 9630-0006 |
220°C +9°C |
± 0.1 at 100°C |
± 1.2 at 100°C |
| 9630-0003 |
220°C +9°C |
± 0.1 at 100°C |
± 2.9 at 100°C |
| 9630-0007 |
220°C +9°C |
± 0.1 at 100°C |
± 2.9 at 100°C |
Additional Technical Specifications:
| SKU |
# of Shelves |
Depth |
Height |
Width |
Power Requirement |
| 9630-0001 |
1 std./4 max. |
16.27 in |
27.5 in |
20.61 in |
230 V, 50/60 Hz |
| 9630-0005 |
1 std./4 max. |
16.27 in |
27.5 in |
20.61 in |
120 V, 50/60 Hz |
| 9630-0002 |
1 std./5 max. |
18.16 in |
32.11 in |
25.14 in |
230 V, 50/60 Hz |
| 9630-0006 |
1 std./5 max. |
18.16 in |
32.11 in |
25.14 in |
120 V, 50/60 Hz |
| 9630-0003 |
1 std./6 max. |
22.89 in |
37.11 in |
29.27 in |
230 V, 50/60 Hz |
| 9630-0007 |
1 std./6 max. |
22.89 in |
37.11 in |
29.27 in |
120 V, 50/60 Hz |
