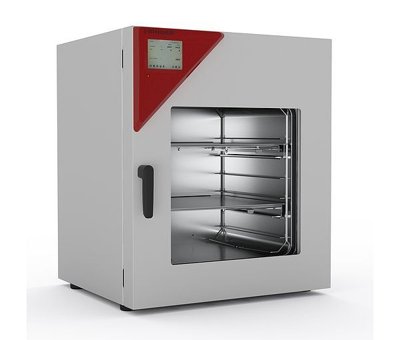

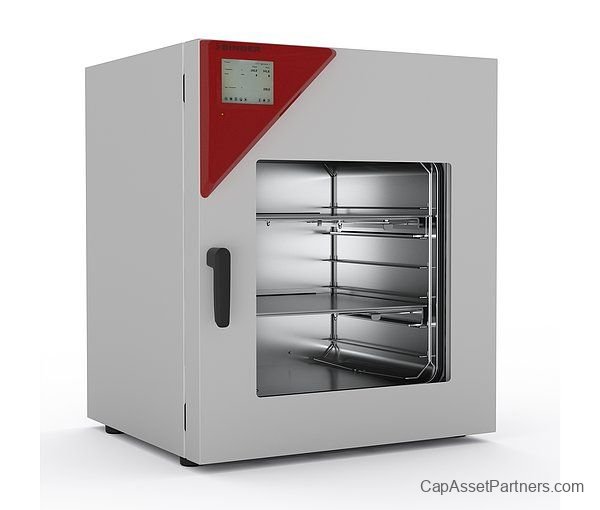

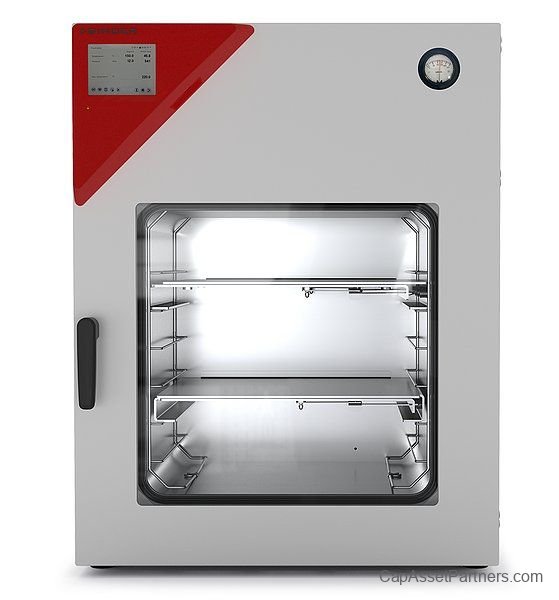

VDL Series Vacuum Drying Chambers for Flammable Solvents
The VDL Series Vacuum Drying Chambers are expertly designed to provide utmost safety during the drying of organic solvents. These explosion-protected units conform to the ATEX directive 2014/34/EU, classified as EX II 2/3/- G IIB T3 Gb/Gc/- X, ensuring a reliable and compliant operation.
Key Features:
- Temperature Range: +9°C above ambient temperature to +110°C
- ATEX Compliance: EX II 2/3/- G IIB T3 Gb/Gc/- X classification

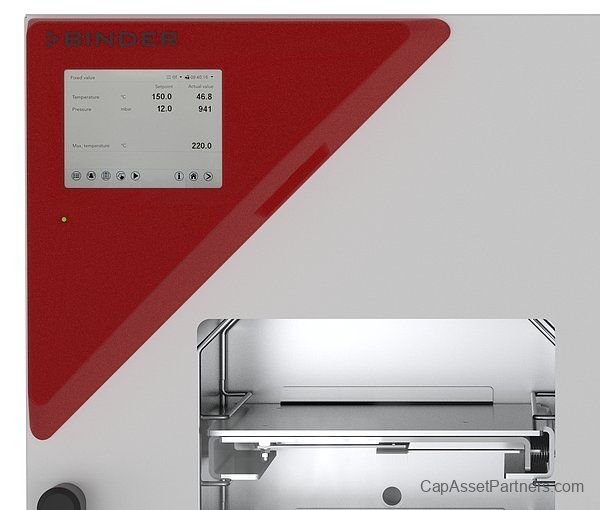

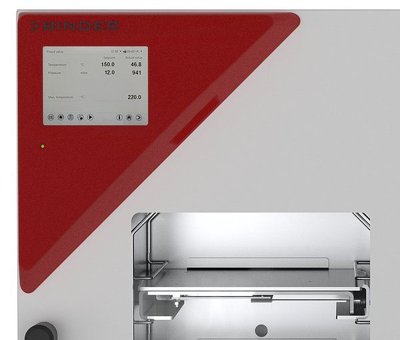

- Intuitive Touchscreen Controller with graphical pressure and temperature display
- Program-controlled drying monitoring with automatic ventilation post-process
- Integrated Data Logger - measured values easily retrievable in open format via USB
- Pressure control device activated from <100 mbar for precise heating

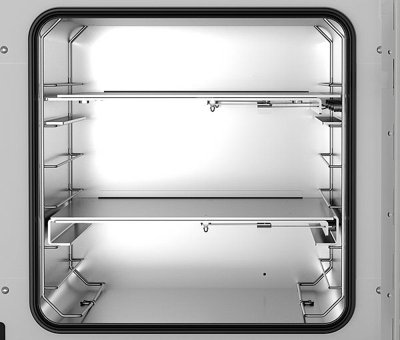

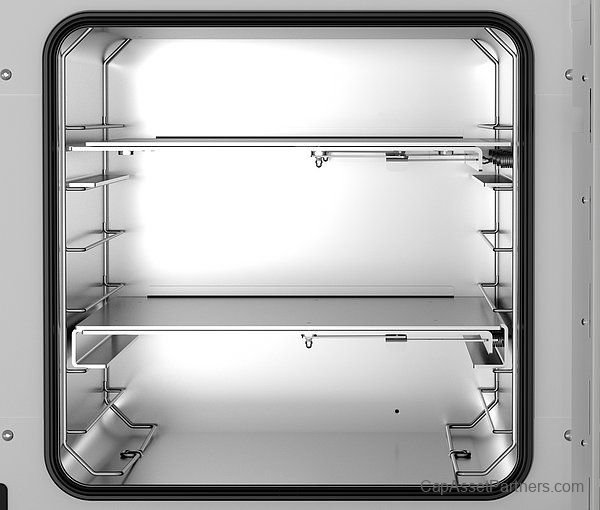

- Includes 2 adjustable aluminum expansion racks for versatile configuration
- Universal connection options for ventilation with ambient air or inert gases
- Universal Access Port DN 16 for external measuring devices

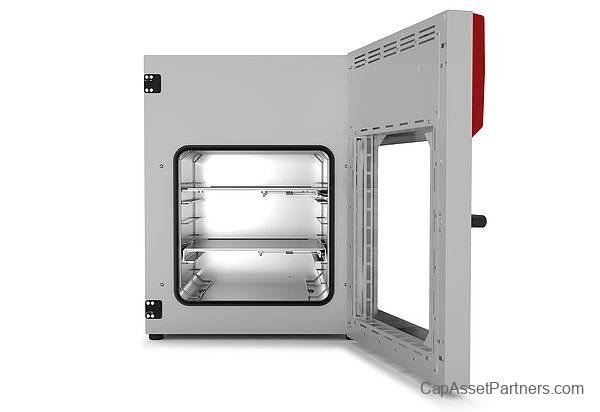

- Shatterproof, spring-mounted safety glass panel for added protection
- Large viewing window facilitates optimal monitoring
- Computer Interface: Ethernet connectivity for seamless data integration
Benefits:
- Achieve fast, gentle drying without compromising safety

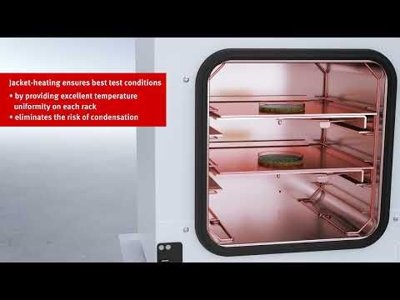

- Enhanced heat transfer capabilities thanks to large thermal conducting plates
- Assured safe operation with a comprehensive ATEX-compliant safety concept
- Optionally available as a modular complete system with vacuum pump and pump chamber for expanded functionality
Specifications:
| SKU |
Temperature Range |
Temperature Fluctuation |
Temperature Variation |
| 9630-0009 |
110°C +9°C |
± 0.1 at 100°C |
± 1.0 at 100°C |
| 9630-0013 |
110°C +9°C |
± 0.1 at 100°C |
± 1.0 at 100°C |
| 9630-0010 |
110°C +9°C |
± 0.1 at 100°C |
± 1.2 at 100°C |
| 9630-0014 |
110°C +9°C |
± 0.1 at 100°C |
± 1.2 at 100°C |
| 9630-0011 |
110°C +9°C |
± 0.1 at 100°C |
± 2.9 at 100°C |
| 9630-0015 |
110°C +9°C |
± 0.1 at 100°C |
± 2.9 at 100°C |
Additional Information:
| SKU |
# of Shelves |
Depth |
Height |
Width |
Power Requirement |
| 9630-0009 |
2 std./4 max. |
16.27 in |
27.5 in |
20.61 in |
230 V, 50/60 Hz |
| 9630-0013 |
2 std./4 max. |
16.27 in |
27.5 in |
20.61 in |
120 V, 50/60 Hz |
| 9630-0010 |
2 std./5 max. |
18.16 in |
32.11 in |
25.14 in |
230 V, 50/60 Hz |
| 9630-0014 |
2 std./5 max. |
18.16 in |
32.11 in |
25.14 in |
120 V, 50/60 Hz |
| 9630-0011 |
2 std./6 max. |
22.89 in |
37.11 in |
29.27 in |
230 V, 50/60 Hz |
| 9630-0015 |
2 std./6 max. |
22.89 in |
37.11 in |
29.27 in |
120 V, 50/60 Hz |
