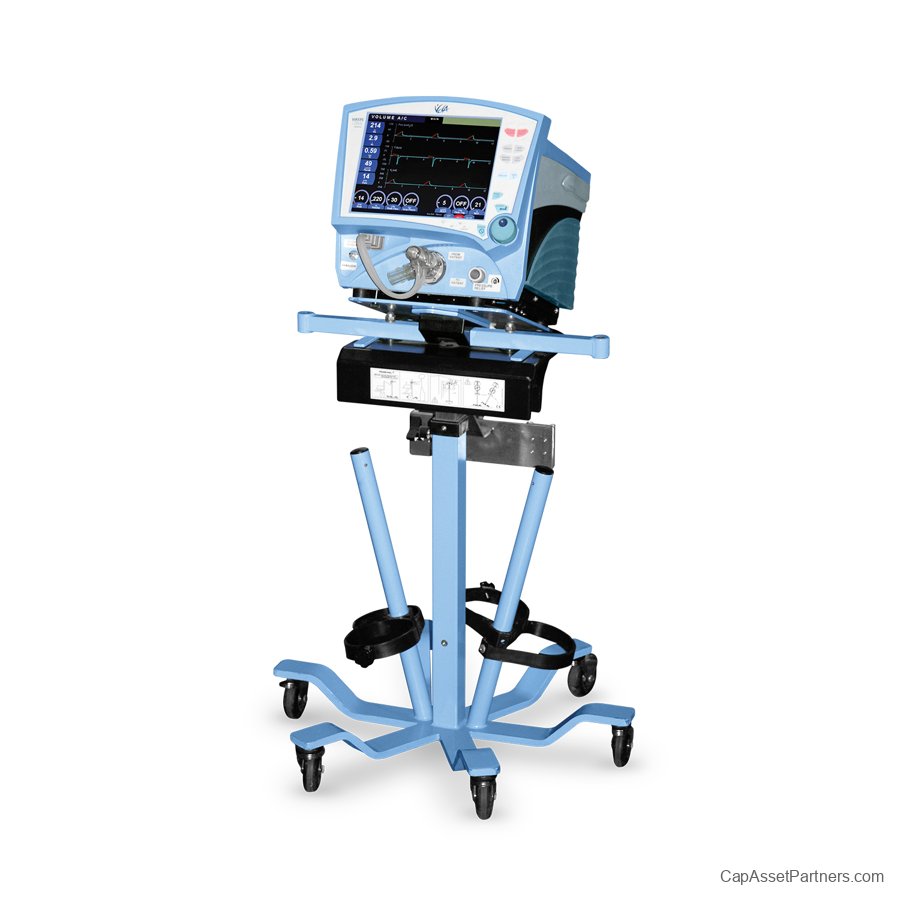

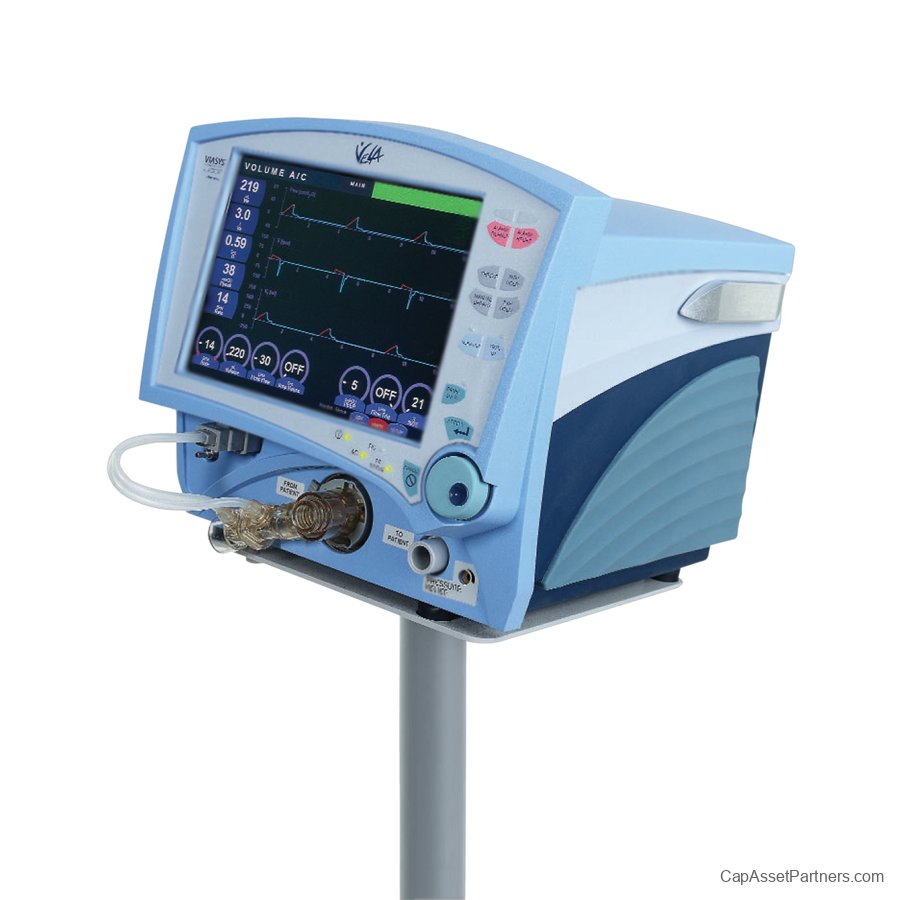

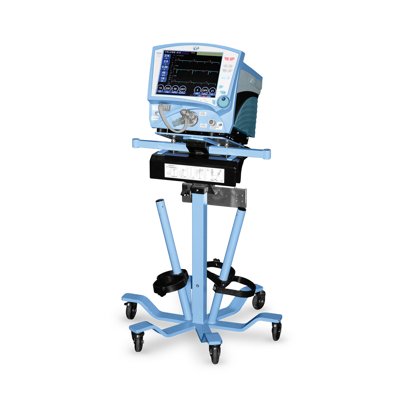

Viasys Vela Comprehensive Ventilator

Product Description: Viasys Vela Comprehensive Ventilator
Discover the Viasys Vela Comprehensive Ventilator, designed to meet the diverse needs of pediatric through adult patients. This compact, mobile ventilator features cutting-edge technology and a robust build, ensuring uncompromising performance in a variety of clinical settings.
Uncompromising Performance
The Vela ventilator is powered by patented turbine technology that optimizes response times and boasts impressive flow and pressure capabilities. This allows healthcare providers to effectively manage even the most challenging respiratory cases. With improved patient-ventilator synchrony, patients experience low work of breathing through responsive inspiratory flow support. The Vela’s reliable platform, characterized by proven turbine performance, guarantees minimal downtime and reduced operating costs.
Safety and accuracy are paramount, thanks to a patented exhalation valve driven by innovative linear-actuated voice coil and Bicore® sensor technology. This ensures consistently accurate volume delivery, crucial for clinical efficacy. The ventilator also features a six-hour internal battery, enabling mobility and continuous support without reliance on compressors or wall air.
Key features include an integrated high and low pressure oxygen inlet system with FiO2 monitoring, ensuring both flexibility and safety for diverse ventilation needs.
Intuitive User Interface
Designed with user experience in mind, the Vela Ventilator boasts a 10.4-inch active matrix full-color touch screen, providing clinicians with consistent and rapid access to vital physiological data and current ventilator status. The user-friendly interface organizes screen displays for swift navigation, presenting essential controls directly related to the selected mode while keeping inactive controls hidden until required.
Connectivity
Stay connected with the Vela’s robust communication features. It includes a parallel printer port, VGA output, and a nurse call port for remote alarm capabilities. The data output port allows for seamless connection to graphic and information systems, providing vital data access whenever needed.
In summary, the Viasys Vela Comprehensive Ventilator embodies a perfect blend of performance, flexibility, and intuitive design, offering healthcare professionals the support they need to deliver exceptional patient care. Experience how great things can come in small packages with the Vela Ventilator.

Viasys Vela Comprehensive Ventilator Specifications

• Ventilation Modes:

• Assist/Control (A/C)

• Synchronized Intermittent Mandatory Ventilation (SIMV)

• Continuous Positive Airway Pressure (CPAP)

• Bi-Level Positive Airway Pressure (BiPAP)

• Tidal Volume (Vt):

• Range: 50 - 1,200 mL

• Minimum: 50 mL (1.7 oz)

• Maximum: 1,200 mL (40.6 oz)

• Respiratory Rate (RR):

• Range: 2 - 100 breaths per minute

• Peak Inspiratory Pressure (PIP):

• Maximum: 70 cmH2O (68.5 kPa)

• Positive End Expiratory Pressure (PEEP):

• Range: 0 - 20 cmH2O (0 - 19.6 kPa)

• Oxygen Concentration (FiO2):

• Range: 21% - 100%

• Flow:

• Peak Flow: 60 L/min (0 - 2,000 mL/sec)

• Adjustable: Yes

• Patient Safety Features:

• High Pressure Alarm

• Low Pressure Alarm

• Apnea Alarm

• Power Supply:

• Mains: 100 - 240 V AC

• Battery: Built-in backup battery for portability

• Weight:

• Approx. 23.5 kg (51.8 lbs)

• Dimensions:

• Length: 41 cm (16.1 in)

• Width: 36 cm (14.2 in)

• Height: 18 cm (7 in)

• Display:

• 10.4-inch Color Touchscreen

• Communication Ports:

• Ethernet

• USB

• Compliance:

• FDA Cleared

• Additional Features:

• Integrated Capnography (optional)

• Alarm System with visual and audible alerts

Always refer to the manufacturer's documentation for detailed operations and safety instructions.
