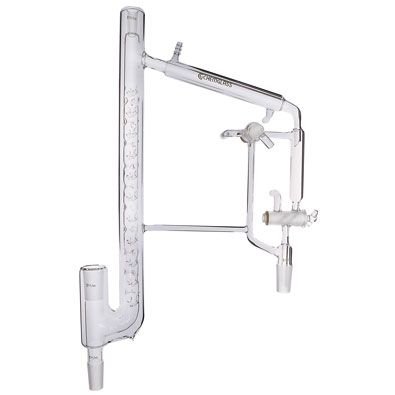

Vigreux, Vacuum-Jacketed Distilling Heads
Enhance your laboratory's distillation capabilities with the Vigreux, Vacuum-Jacketed Distilling Heads. Designed for precision and efficiency, these distilling heads are an essential tool for any professional setting that requires reliable fractionation under vacuum conditions.
Key Features:
- Jacketed Design: Crafted for use under vacuum, enhancing the efficiency of your distillation processes.
- Versatile Thermometer Joints:
- 10/18 top outer joint accommodates a 1-inch immersion thermometer.
- 10/30 joints are designed for a 2-inch immersion thermometer, providing flexibility for temperature monitoring.
- Effortless Receiver Change: The 24/40 joint size supports 4mm glass or PTFE stopcocks, strategically positioned to allow seamless changing of receivers without interrupting the distillation.
- Precision Stopcocks: The 14/20 size utilizes 2mm bore glass or PTFE stopcocks, ensuring accuracy in your operations.
Specifications:
| SKU |
Height |
Width |
| CG-1247-08 |
255 mm |
310 mm |
| CG-1247-09 |
550 mm |
325 mm |
| CG-1247-11 |
255 mm |
310 mm |
| CG-1247-12 |
550 mm |
325 mm |
