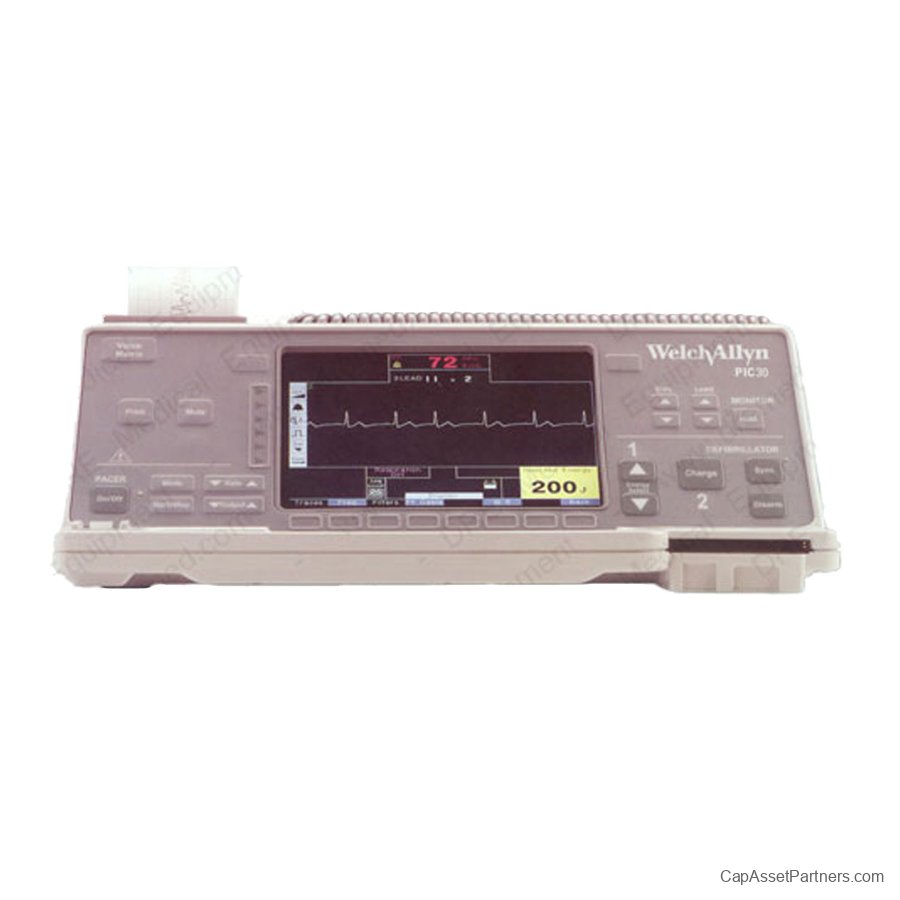

Welch Allyn PIC 30 Monitor / Defibrillator / Pacer

Welch Allyn PIC 30 Monitor/Defibrillator/Pacer
The Welch Allyn PIC 30 is a cutting-edge monitor, defibrillator, and pacer designed to meet the demands of emergency and critical care settings. Ideal for crash carts and various patient treatment environments, this device ensures a rapid response in life-threatening situations. With intuitive quick access controls, the PIC 30 enhances the efficiency of emergency responders and clinicians, making it a reliable choice for hospitals and clinics.
This versatile unit is fully upgradeable, allowing healthcare providers to enhance functionality without the need for a new device. It features comprehensive manual defibrillation capabilities, 3-lead monitoring, and patient documentation options, ensuring that you have the necessary tools at your disposal for effective patient care.
Key Features:

• Biphasic Technology: Provides effective defibrillation with optimal safety.

• Compact Size: Measures 16.7 x 12.5 x 5.3 inches, making it easy to store and transport.

• Lightweight Design: Weighing only 13.5 lbs, the PIC 30 is easy to handle in emergencies.

• Rapid Defibrillation: Capable of charging to 360 J in less than 7 seconds for quick intervention.

• Hands-Free Defibrillation: An optional feature that enhances usability during critical situations.

• Bright Display: A large 6.4 inch (16.5 cm) backlit screen provides clear visibility of vital information.

• Customizable Heart Rate Alarms: User-selectable alarms with automatic setting adjustments.

• Advanced Documentation: Annotating recorder captures critical patient data including date, time, heart rate, ECG lead, and delivered energy.

• Event Log Summary: A comprehensive log of all critical events for thorough documentation and review.

• User-Replaceable Battery: Ensures uninterrupted service with AC back-up power capability.

• Optional Features: Includes shock advisory and external pacing functions, enhancing the device's versatility.

• Display Options: Available with both color and monochrome display options to suit your facility’s needs.

The Welch Allyn PIC 30 is not only a powerful defibrillator and monitor; it is an essential tool for effective patient management in emergency care. Upgrade your emergency response capabilities with this innovative device that prioritizes reliability, ease of use, and future adaptability.

Welch Allyn PIC 30 Monitor / Defibrillator / Pacer Specifications

General

• Weight: 13.5 lbs (6.1 kg)

• Size: 16.7 × 12.5 × 5.3 inches (41.75 × 32 × 13 cm)

• Operating Time: 2 hours

• Operating Temperature: 0 to 45°C (32 to 113°F)

• Humidity: 15 to 95% RH (Non-Condensing)

• Vibration: MIL-STD 810E

• Shock / Drop: MIL-STD 810E

• Altitude: Up to 15,000 feet

• Transport and Storage:

• Temperature: -30 to 70°C (-22 to 158°F)

• Humidity: 15 to 95% non-condensing

• Atmospheric Pressure: 860 to 1060 hPa

• Shock/Vibration: ISTA 1A

• Enclosure Protection:

• Solid Foreign Objects: IEC 529, IP2X

• Water: IEC 529, IPX4

• Operating Power: Battery pack or auxiliary power supply

Defibrillator

• Biphasic: Low current, impedance compensated, optimized terminating current, truncated exponential biphasic

• Energy Select:

• External: 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 J

• Internal: 2, 3, 4, 5, 6, 7, 8, 9, 10, 20, 30, 50 J

• Charge Time:

• < 7 seconds @ 360 J (with charged battery)

• < 15 seconds @ 360 J (without battery, 90% AC mains voltage)

• Charge Indicator: Audible and graphic

• Output: Adult paddles, internal paddles, pediatric adapter, multipurpose hands-free adapter

• Synchronizer: Delivers energy within 60 msec

• Disarm: Front panel switch

Power

• Mains Voltage: 100-240 VAC (auto ranging)

• Mains Frequency: 50/60 Hz

Battery (User Replaceable)

• High Capacity Type: NiMH 12 volt - Welch Allyn SuperPac™

• Low Battery Indicator: Flashing low battery icon on display

• Multiple Paired Contacts: Ensures quick, error-free insertion and backup reliability

• Recharge Rate:

• 80% in 7.5 hours

• 100% in 9.5 hours (for high capacity batteries)

Monitor/Display

• Input: 3-lead or 5-lead patient cable, paddles, or multipurpose hands-free adapter

• Size: 6.4 inch (16.5 cm) diagonal, non-fade

• Type: LCD Monochromatic

• Display Resolution: 640 x 480 pixels

• Sweep Speed: 25 mm/sec

• Lead Selections: Paddles (Pads), I, II, III, AVR, AVL, AVF, V

• Frequency Response:

• User-selectable: 2 to 20 Hz Limited mode, 0.5 to 40 Hz Monitor mode, 0.05 to 150 Hz

• Common Mode Rejection: Complies with AAMI EC13-1992 section 3.2.9.10

• Heart Rate Meter: 20 to 300 BPM

• Heart Rate Alarms: User-selectable

• Size: 0.125, 0.25, 0.5, 1, 2, 4 cm/mV and auto-ranging

Recorder

• Type: High-resolution thermal array

• Annotation: Time, date, ECG lead, ECG gain, heart rate, defibrillation and pacing parameters, treatment summary and ACLS events

• Paper Width: 50 mm

• Paper Speed: 25 mm/sec

• Delay: 6 seconds

• Frequency Response: Automatically set to monitor's frequency response

• Treatment Summary: Records defibrillation, pacing, and status events

• Automatically logs into memory: Type of event, time, and ECG sample

• TX Summary Log: 28 ECG events or 300 non-ECG events

• Record Modes: Manual and automatic
