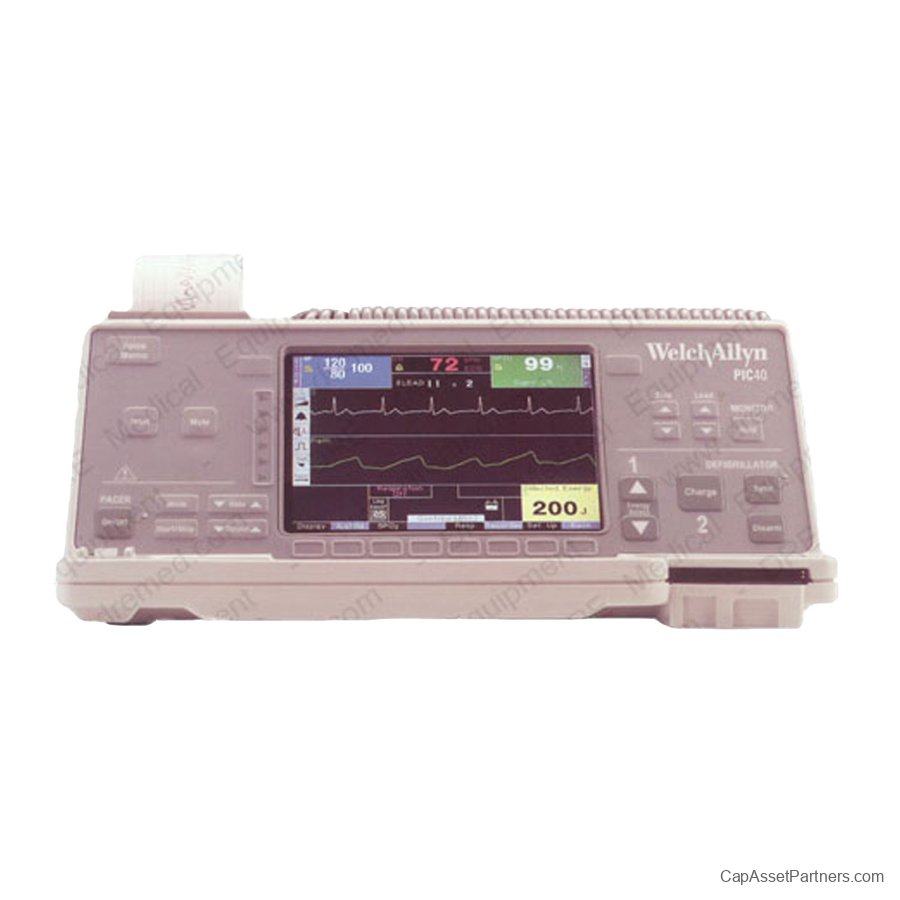

Welch Allyn PIC 40 Monitor / Defibrillator / Pacer

Welch Allyn PIC 40 Monitor/Defibrillator/Pacer
Experience advanced life-saving technology with the Welch Allyn PIC 40, a sophisticated and versatile unit that seamlessly integrates essential monitoring functions with defibrillation and pacing capabilities. Designed for healthcare professionals in pre-hospital, hospital, and primary care settings, this compact device ensures comprehensive patient monitoring and emergency response in one easy-to-use package.
The PIC 40 offers standard features including 3 or 5 lead ECG monitoring, SpO2 readings, and both manual and automated defibrillation options. In AED mode, it delivers escalating energy levels of 200j, 300j, and 360j, adhering to the latest AHA guidelines, while the manual defibrillation function ranges from 2j to 360j, providing healthcare practitioners with the flexibility needed for various patient scenarios.
Its vibrant 6.5-inch color display guarantees that crucial information—such as ECG waveforms, SpO2 levels, and real-time alarms for heart rate and SpO2—are clearly visible from any angle. With simple operation controls and dedicated treatment parameters, the PIC 40 is designed for efficiency during critical care situations.
Additionally, this innovative device supports optional enhancements, including non-invasive blood pressure (NIBP) monitoring and external pacing capabilities, enabling you to tailor the PIC 40 to fit your specific healthcare needs. The ability to upgrade the unit without altering its physical dimensions ensures that your investment remains relevant as technology advances.
Key Features:

• Biphasic defibrillation with customizable energy settings

• Manual defibrillation (2 - 360 joules) and synchronized cardioversion

• Automated External Defibrillation with voice prompts and escalating energy options

• Nellcor SpO2 monitoring for reliable oxygen saturation readings

• User-friendly 6.5” color display showcasing waveforms and patient data

• Future-proof design allowing for easy upgrades

• Compatible with pediatric adapters and various power options available separately

Choose the Welch Allyn PIC 40 Monitor/Defibrillator/Pacer for a reliable and efficient solution that meets the diverse needs of your healthcare facility. Whether in acute care settings or ambulatory environments, this device combines advanced monitoring and defibrillation to enhance patient care and ensure readiness during emergencies.

Welch Allyn PIC 40 Monitor / Defibrillator / Pacer Specifications

General

• Weight: 10.5 lbs (4.76 kg)

• Size: 16.7 x 12.5 x 5.3 inches (41.75 x 32 x 13 cm)

• Operating Time: 2 hours

• Temperature: 0 to 45°C (32 to 113°F)

• Humidity (Non-condensing): 15 to 95% RH

• Vibration: MIL-STD 810E

• Shock / Drop: MIL-STD 810E

• Altitude: Up to 15,000 feet

• Transport and Storage:

• Temperature: -30 to 70°C (-22 to 158°F)

• Humidity: 15 to 95% (non-condensing)

• Atmospheric Pressure: 860 to 1060 hPa

• Shock/Vibration: ISTA 1A

• Solid Foreign Object Protection: IEC 529, IP2X

• Water Protection: IEC 529, IPX4

Monitor/Display

• Input: 3-lead or 5-lead patient cable, paddles, multipurpose hands-free adapter

• Size: 6.4 inch (16.5 cm) diagonal, non-fade

• Type: LCD color active matrix

• Display Resolution: 640 x 480 pixels

• Sweep Speed: 25 mm/sec

• Lead Selections: Paddles (Pads), I, II, III, AVR, AVL, AVF, V

• Frequency Response:

• Limited mode: 2 to 20 Hz

• Monitor mode: 0.5 to 40 Hz

• Full mode: 0.05 to 150 Hz

• Common Mode Rejection: Complies with AAMI EC13-1992

• Heart Rate Meter: 20 to 300 BPM

• Heart Rate Alarms: User-selectable

• Size options: 0.125, 0.25, 0.5, 1, 2, 4 cm/mV and auto-ranging

AED

• Configurable: Basic & Basic+ modes

• Operation: Continuous analysis of ECG, advises shock on VFIB and shockable VTACH

• Biphasic Energy Levels: 150/200/300/360J

• Factory Default: Biphasic at 150/200/300J, prompts via audible voice and visual text

Defibrillator

• Biphasic: Low current, impedance compensated

• Energy Select:

• External: 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 J

• Internal: 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 50 J

• Charge Time: < 10 seconds @ 360 J (typical, SuperPak™)

• Output: Compatible with adult and internal paddles, pediatric adapter

• Synchronizer: Delivers energy within 60 msec

• Disarm: Front panel switch

Recorder

• Type: High-resolution thermal array

• Annotation: Time, date, ECG lead, ECG gain, heart rate, defibrillation, pacing parameters, and treatment summary ACLS events

• Paper Width: 50 mm

• Paper Speed: 25 mm/sec

• Delay: 6 seconds

• Frequency Response: Automatically set to monitor's frequency response

• Tx Summary Log: 60 ECG events or 300 non-ECG events

Battery

• Type: NiMH 12 volt - Welch Allyn SuperPac™

• Low Battery Indicator: Flashing icon on display

• Multiple Paired Contacts: Ensures quick, reliable insertion

• Recharge Rate:

• 80% in 7.5 hours

• 100% in 9.5 hours (for high capacity batteries)

Power

• Mains Voltage: 100-240 VAC (auto ranging)

• Mains Frequency: 50/60 Hz

Pulse Oximeter

• Measurement Range: 31 to 99%

• Heart Rate Range: 30 to 250 BPM ±5% or 5 BPM (whichever is less)

• Accuracy:

• 81-99%: ±2%

• 70-80%: 3%

• 0-69%: unspecified

• Update Period: Every pulse after 4 valid pulses

• Alarm Limits: 60% lower limit, 70% upper limit to 99%

• Probe: Reusable finger or multi-site probe
