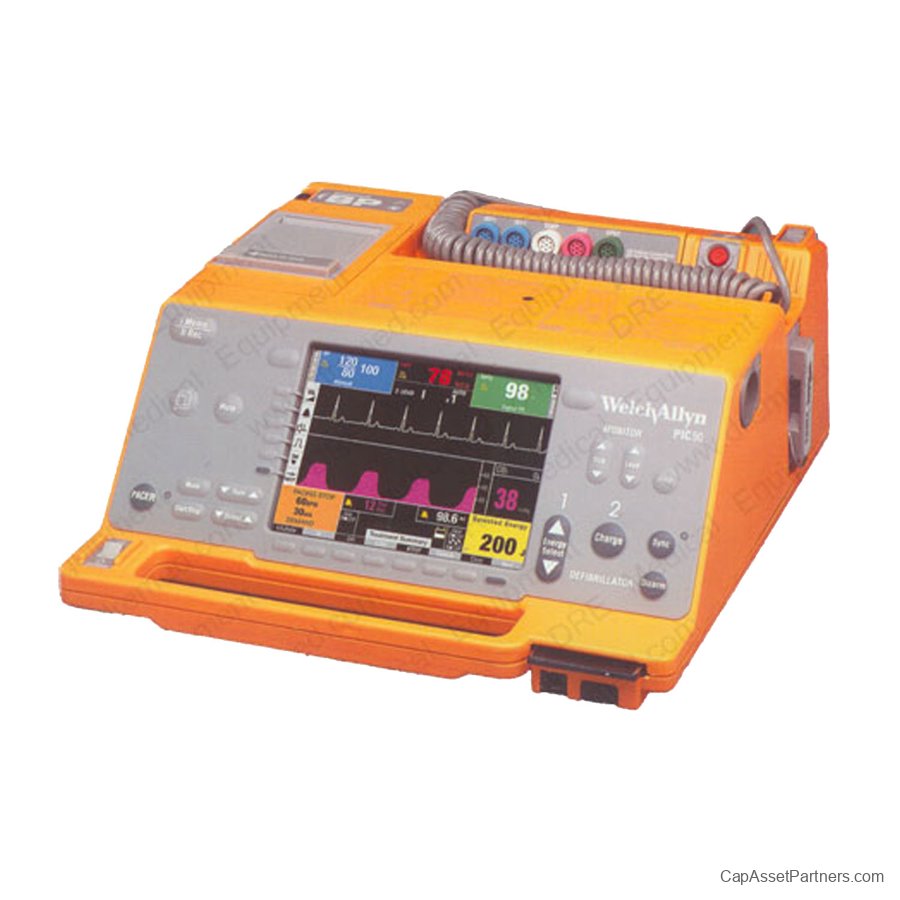

Welch Allyn PIC 50 Monitor / Defibrillator / Pacer

Introducing the Welch Allyn PIC 50 Monitor/Defibrillator/Pacer – the cutting-edge solution for emergency medical care. Engineered for both reliability and ease of use, the PIC 50 is designed to meet the demanding needs of critical care professionals. Weighing in at just 10 lbs, it is the lightest defibrillator model available, offering a wide range of monitoring options while maintaining portability.
The PIC 50 boasts a rugged design, making it ideal for use in both out-of-hospital environments and hospital settings. Its intuitive controls and user-friendly menus ensure that medical personnel can focus on what matters most: patient care. The device allows for custom configurations and is upgradeable, ensuring that it can adapt to your evolving treatment needs without increasing its size or weight.
Key Features of the Welch Allyn PIC 50:

• Exceptional portability at only 10 lbs, combined with comprehensive monitoring capabilities.

• Built to withstand the rigors of transport for critical care situations, ensuring durability and reliability.

• Future-proof design allows for tailored configurations and upgrades, designed to grow with your practice.

• Effortless operation with dedicated controls for monitoring, defibrillation, pacing, and treatment summaries.

• Offers pediatric adapters and additional power options that can be purchased separately to enhance functionality.

Elevate your emergency response capabilities with the Welch Allyn PIC 50 Monitor/Defibrillator/Pacer, where innovation meets practical design for optimal patient outcomes. Explore our various configurations to find the perfect fit for your medical facility today.

Welch Allyn PIC 50 Monitor / Defibrillator / Pacer Specifications

Defibrillator

• Biphasic: Low current, impedance compensated, optimized terminating current, truncated exponential biphasic.

• Energy Select:

• External: 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 J

• Internal: 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 50 J

• Charge Time: < 10 seconds @ 360 J (typical)

• Charge Indicator: Audible and graphic.

• Output: Adult paddles, internal paddles, peds adapter, and multipurpose hands-free adapter available.

• Synchronizer: Delivers energy within 60 msec.

• Disarm: Front panel switch.

Monitor/Display

• Input: 3-lead PIC: 3-lead or 5-lead patient cable, paddles, or multipurpose hands-free adapter. 12-lead PIC: 3-lead, 12-lead patient cable, paddles, or multipurpose hands-free adapter.

• Size: 6.5 inch (16.5 cm) diagonal, non-fade.

• Type: Color active matrix TFT display.

• Display Resolution: 640 x 480 pixels.

• Sweep Speed: 25 mm/sec.

• Lead Selections: Paddles (Pads), I, II, III, AVR, AVL, AVF, V.

• Frequency Response: User-selectable, 2 to 20 Hz Limited mode, 1 to 40 Hz Monitor mode, 0.05 to 40 Hz Limited.

• Diagnostic mode: 0.05 to 150 Hz (automatically sets chart recorder response).

• Common Mode Rejection: 90 dB (Complies with AAMI EC13-1992 section 3.2.9.10).

• Heart Rate Meter: 20 to 300 BPM.

• Heart Rate Alarms: User-selectable.

• Size: 0.125, 0.25, 0.5, 1, 2, 4 cm/mV and auto-sizing.

• ECG Output: 1 V/mV.

Recorder

• Type: High-resolution thermal array.

• Annotation: Time, date, ECG lead, ECG gain, heart rate, defibrillation and pacing parameters, and treatment summary ACLS events.

• Paper Width: 50 mm.

• Paper Speed: 25 mm/sec.

• Delay: 6 seconds.

• Frequency Response: Automatically set to monitor's frequency response.

• Treatment Summary: 7 switches to record key ACLS events (IV, INTUB, EPI, LIDO, ATROP, etc.).

• Tx Summary Log: 60 ECG events or 4000 non-ECG events logged automatically.

Battery

• High Capacity Type: NiMH 12 volt - Welch Allyn SuperPac™.

• Low Battery Indicator: Flashing low battery icon on display.

• Multiple Paired Contacts: Ensures quick, error-free insertion and backup reliability.

• Recharge Rate: 80% in 7.5 hours, 100% in 9.5 hours (for high capacity batteries).

General

• Weight: 10 lbs (4.5 kg) (basic configuration).

• Size: 12.5 × 12.5 × 5.3 inches (32 × 32 × 13 cm).

• Operating Time: 2.0 hours of continuous ECG, SpO2, CO2, and BP monitoring or 120 shocks at 360 Joules (typical).

• Actual operating times: Varies according to the condition of the battery and the number of additional options activated.

• Temperature: 0 to 45 °C (32 to 113 °F).

• Humidity: 15 to 95% RH (non-condensing).

• Vibration: MIL-STD 810E.

• Shock / Drop: MIL-STD 810E.

• Altitude: Up to 15,000 feet (4,572 meters).

• Transport and Storage:

• Temperature: -30 to 70 °C (-22 to 158 °F)

• Humidity: 15 to 95% non-condensing

• Atmospheric Pressure: 860 to 1060 hPa

• Shock/Vibration: ISTA 1A.

• Solid Foreign Object: IEC 529, IP2X.

• Water: IEC 529, IPX4.

Pulse Oximeter

• Measurement Range: 31 to 99%.

• Heart Rate Range: 30 to 250 BPM ±5% or 5 BPM, whichever is less.

• Accuracy:

• 81-99% = ±2%

• 70-80% = 3%

• 0-69% = unspecified.

• Update Period: Every pulse after 4 valid pulses.

• Alarm Limits: 60 lower limit, 70 upper limit to 99%.

Certification

• North American certification: UL and cUL.
