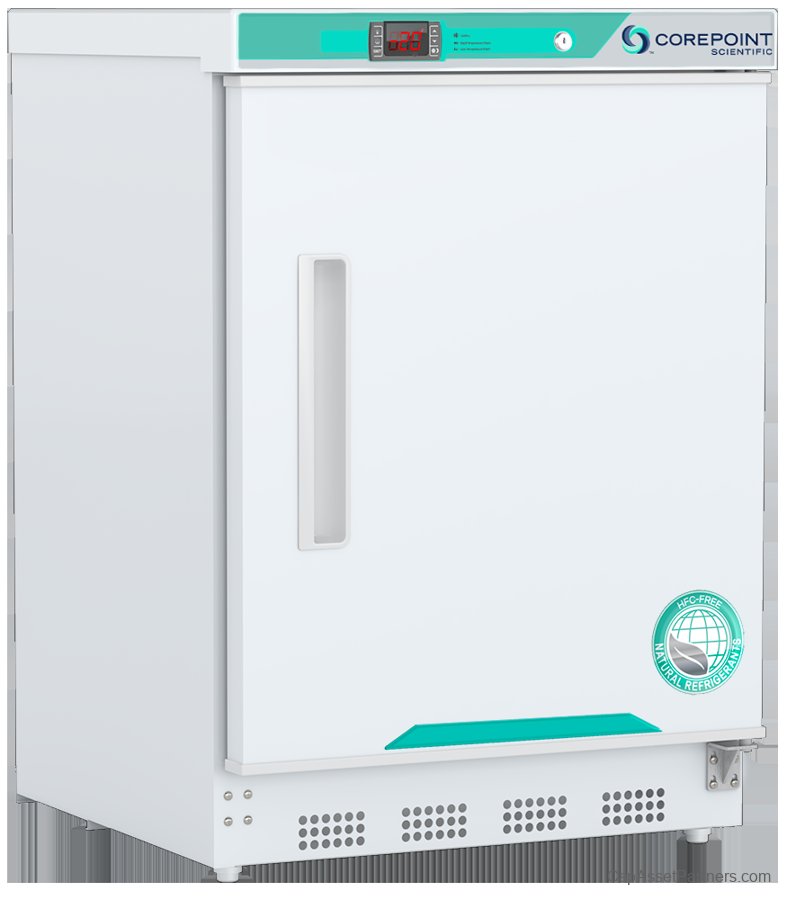

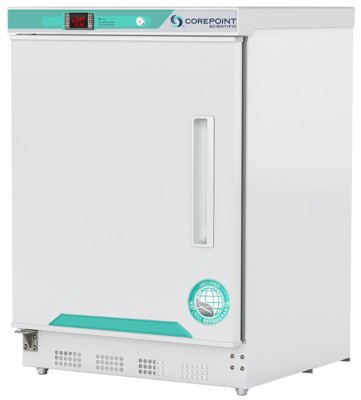

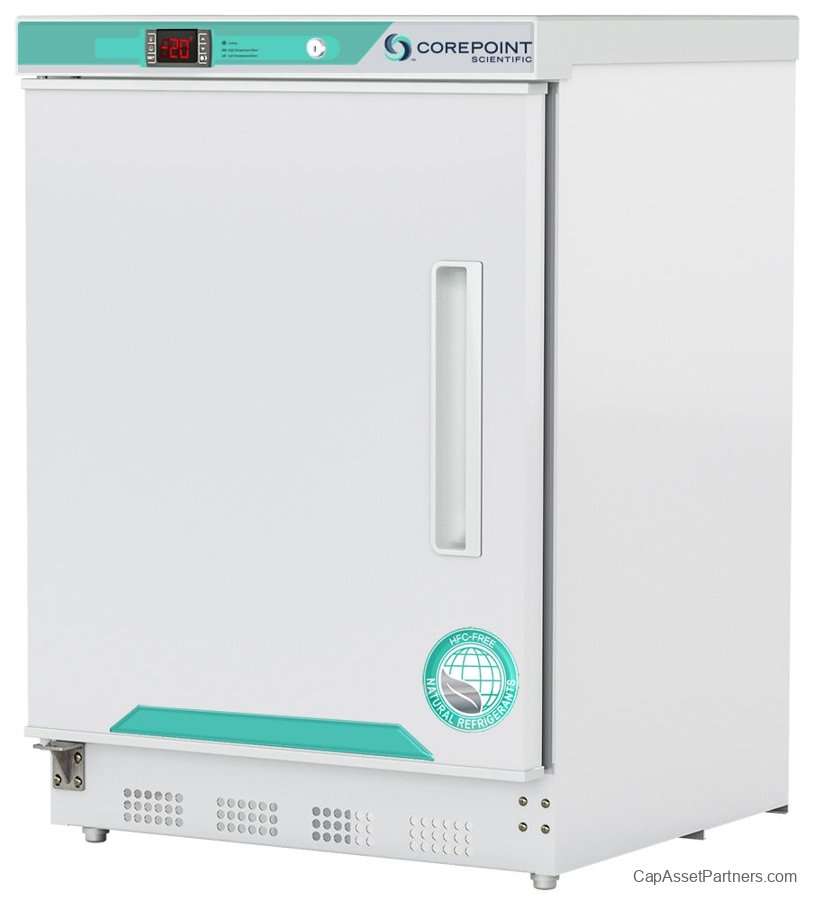

White Diamond Series Built-In Undercounter Auto Defrost Freezers
Discover the ultimate in temperature management with the White Diamond Series Built-In Undercounter Auto Defrost Freezers. Designed for precision and reliability, these freezers are equipped with advanced features that guarantee the safety and integrity of your critical samples.
Key Features:
- Microprocessor Temperature Controller: Ensures precise temperature control, verification, and quick recovery.
- Digital Temperature Display: Offers clear visual feedback on temperature conditions for easy monitoring.
- Audible and Visual Alarms: High and low-temperature alarms with battery backup provide constant security for stored items.
- Remote Alarm Contacts: For immediate notifications in case of temperature fluctuations.
- Dual Probes: Features one probe in air and another in the sample bottle for accurate readings.
- Guard Rails: Shelves designed with guard rails to prevent products from touching the back wall.
- Bottom-Footed Shelf: Enhances air circulation for optimal cooling performance.
- Keyed Door Lock: Adds an extra layer of security for valuable samples.
- Magnetic Door Gasket: Ensures a positive seal, enhancing energy efficiency and temperature stability.
- Leveling Legs: Allow for easy adjustment to accommodate uneven surfaces.
- Probe Access Port: 3/8 inch access for easy monitoring.
- Durable Construction: Powder coat exterior with high-density urethane foam insulation for superior energy efficiency.
- Environmentally Friendly: Features HFC-free refrigerant (R600a) and foam insulation for sustainable operation.
Compatibility:
These freezers are compatible with various systems including Pyxis®, Omnicell®, and AcuDose RX®.
Certifications:
Each unit is UL and C-UL listed, ensuring compliance with rigorous safety and performance standards.
Specifications:
| SKU |
Door Type |
Operating Temperature Range |
Certification |
Warranty |
Hinge |
| PF051WWW/0A |
Solid Swing Door |
-15°C to -25°C |
UL, C-UL Listed |
3 Year |
Right |
| PF051WWWLH/0A |
Solid Swing Door |
-15°C to -25°C |
UL, C-UL Listed |
3 Year |
Left |
Additional Specifications:
| SKU |
Dimensions |
Electrical Information |
Refrigerant |
Controller |
| PF051WWW/0A |
23.75 in x 24.5 in x 33.125 in |
115V, 60Hz, 1.8A, 1/8 HP |
R290 |
Microprocessor |
| PF051WWWLH/0A |
23.75 in x 24.5 in x 33.125 in |
115V, 60Hz, 1.8A, 1/8 HP |
R290 |
Microprocessor |
Note: Automatic defrost provides the convenience of a frost-free interior, although chamber air temperatures may experience a moderate rise during defrost cycles.
