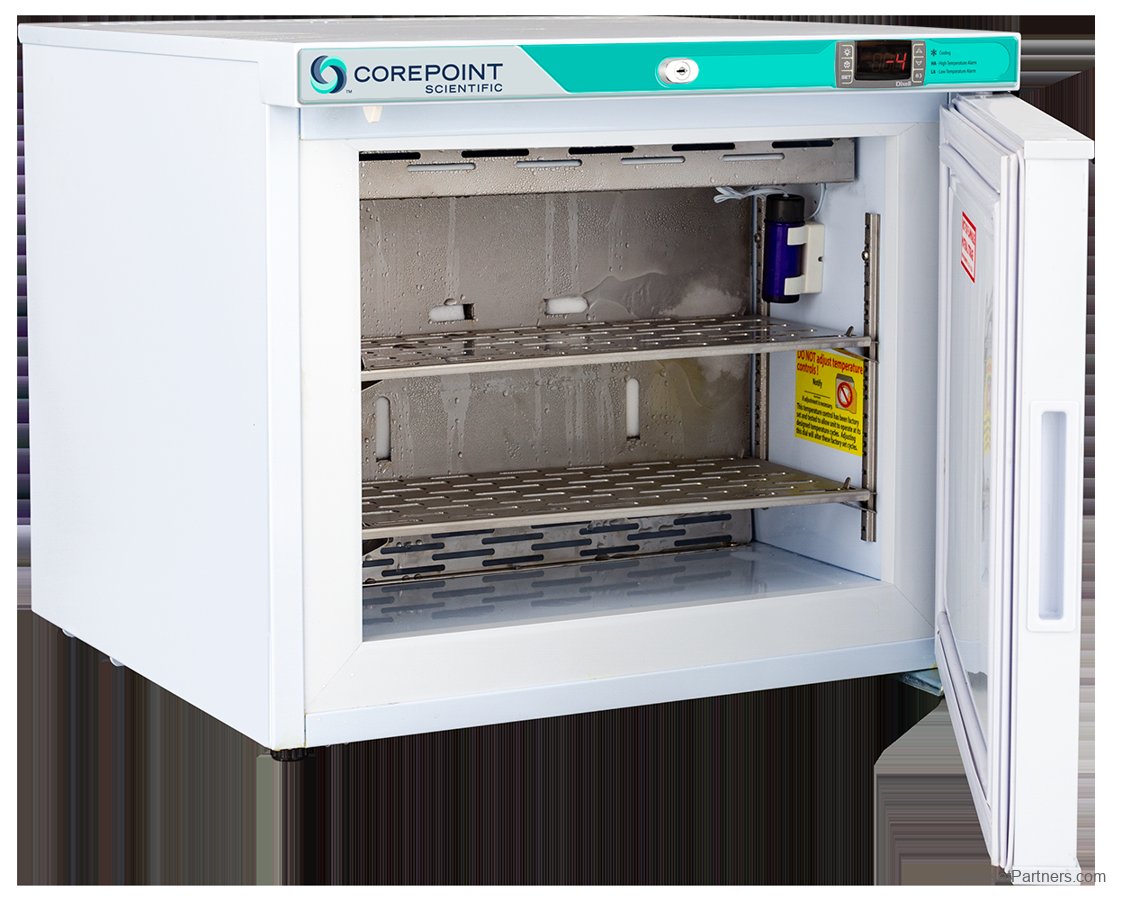

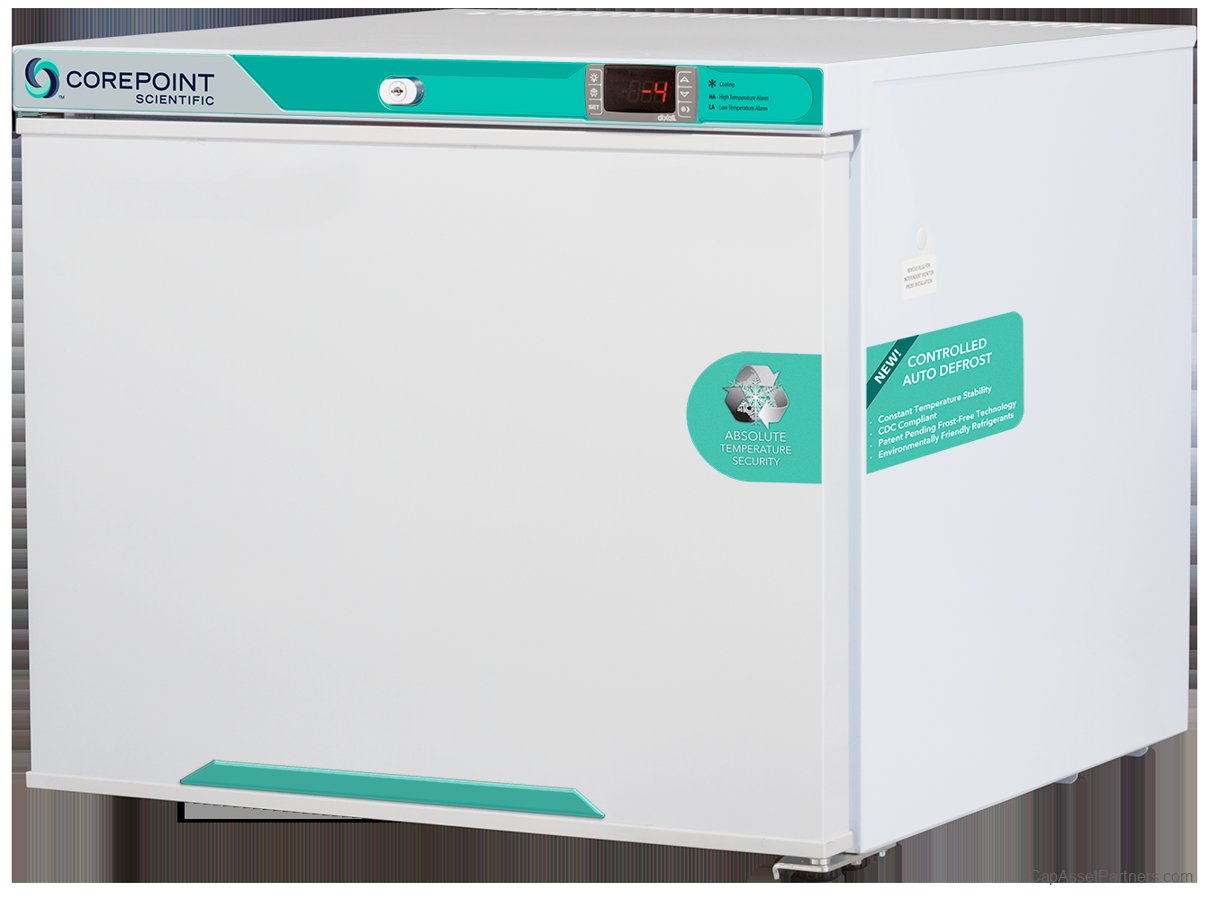

White Diamond Series Countertop Vaccine Freezers
The White Diamond Series Countertop Vaccine Freezers are designed to offer unparalleled performance for the safe storage of vaccines and critical samples. Equipped with controlled auto defrost technology, these freezers maintain consistent and stable temperatures below 5°F (-15°C), ensuring the integrity of your valuable storage items.
Advanced Temperature Management
These freezers utilize patented CDC-compliant Frost-Free Technology, providing impressive frost removal without compromising temperature stability. A microprocessor temperature controller lies at the core of this unit, featuring a digital display that allows for precise temperature verification and recovery, making it superior to conventional mechanical thermostats.
Key Features:
- Microprocessor temperature controller for accurate management
- Digital temperature display along with a sample simulated probe
- Min/max memory feature for historical data tracking
- Switchable temperature display between °C and °F
- Audible and visual high and low-temperature alarms with remote alarm contacts
- Auto defrost cycle every 6 hours at a set point of -24°C
- Maximum air temperature in an empty freezer: -15°C
- Maximum air temperature in a loaded freezer: -16°C
- Maximum sample temperature in an empty freezer: -18°C
- Maximum sample temperature in a loaded freezer: -20°C
- Keyed door lock for added security
- Magnetic door gasket for an effective seal
- Integrated leveling legs for stability
- Probe access port (3/8") for easy monitoring
- Durable powder coat exterior
- High-density urethane foam insulation for maximum efficiency
- Includes a pharmacy refrigerator/freezer toolkit and temperature logs
- Controlled auto defrost mechanism
Certifications & Compliance:
- UL and C-UL listed for safety assurance
- ADA compliant for enhanced accessibility
- CDC-compliant Temperature Monitoring Device (TMD) complete with a three-year certification of calibration
Specifications:
| SKU |
Door Type |
Operating Temperature Range |
Certification |
Compliance |
Hinge |
| PF021WWW/0CAD |
Solid Swing Door |
-15°C to -25°C |
UL, C-UL Listed |
ADA Compliant |
Right |
Electrical Information:
| Dimensions |
Electrical Specifications |
Refrigerant |
Controller |
| 23.75 in x 24.0 in x 28.375 in |
115V, 60Hz, 1A, 1/8 HP |
R600a |
Microprocessor |
For optimal performance and longevity, ensure that this unit has a 4" clearance on the sides and back for adequate ventilation. Improper installation may void the warranty and lead to temperature maintenance issues, overheating, and potential failure.
