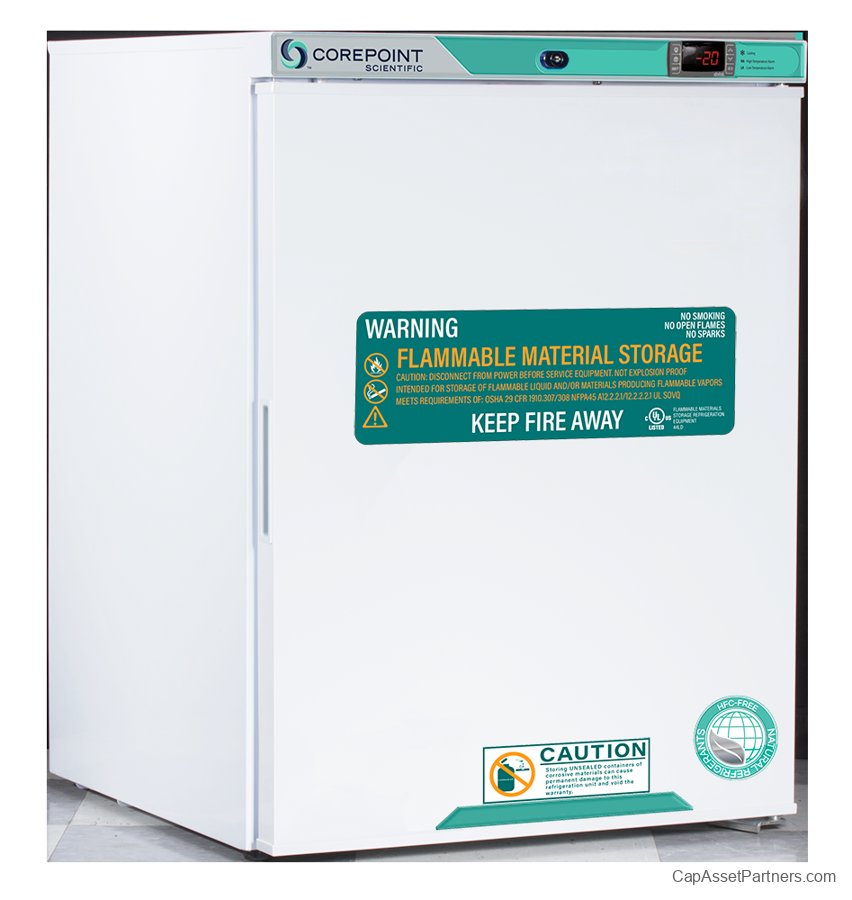

White Diamond Series Freestanding Undercounter Flammable Storage Freezers
The White Diamond Series Freestanding Undercounter Flammable Storage Freezer is designed to offer secure and reliable storage for temperature-sensitive materials. With enhanced features tailored for medical and laboratory environments, this freezer ensures optimal safety and performance.
Key Features:
- Microprocessor Temperature Controller: Provides precise temperature management.
- Digital Temperature Display: Easy-to-read screen for real-time monitoring.
- High and Low Temperature Alarms: Audible and visual alerts to notify users of temperature fluctuations.
- Remote Alarm Contacts: Allows for integration with external alarm systems for added safety.
- Dual Probes: One probe in air and another in sample bottles for accurate temperature readings.
- Probe Access Port: One 3/8 inch port for easy access to internal temperature probes.

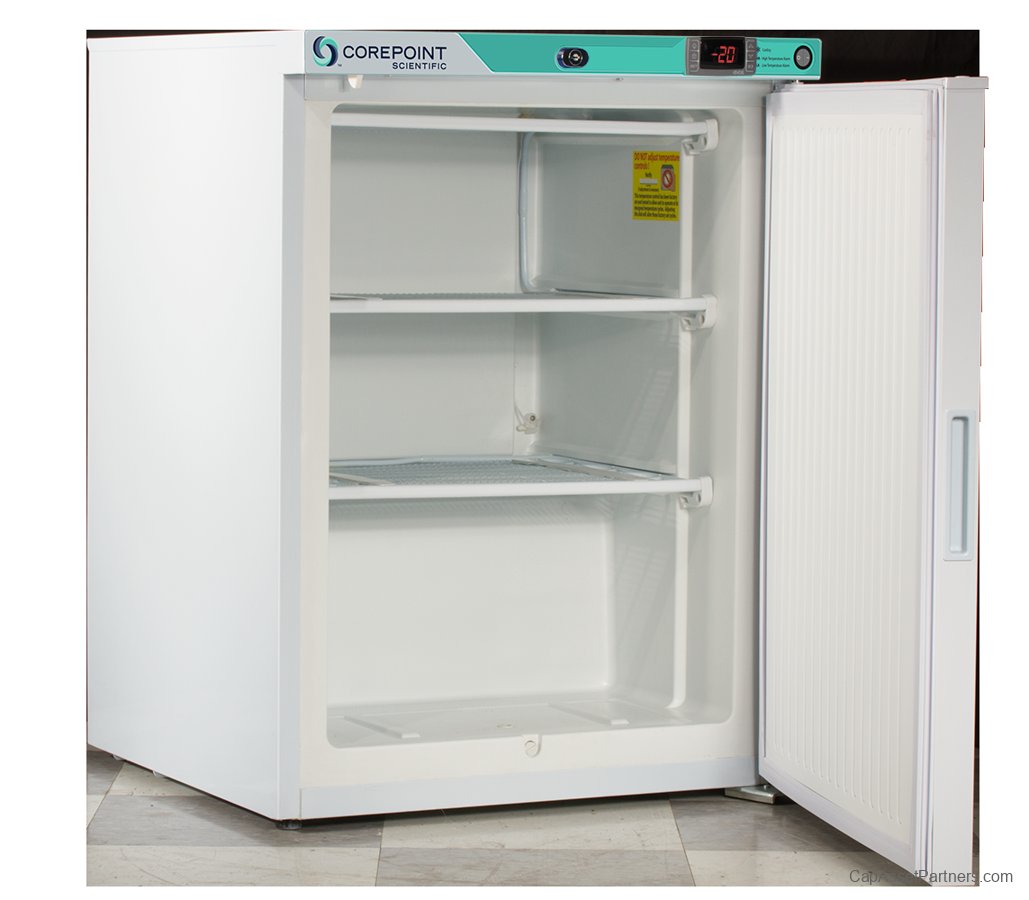

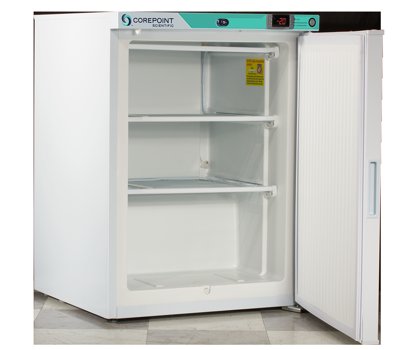

- Storage Configuration: Two fixed shelves complemented by three removable baskets for flexible storage options.
- Keyed Door Lock: Provides secure access to stored materials.
- Magnetic Door Gasket: Ensures a tight seal to maintain internal temperature.
- Integrated Door Handle: For easy opening and closing.
- Aesthetic Design: Sleek white finish on the cabinet and door.
- Insulation: High-density urethane foam for superior thermal efficiency.
- Environmentally Friendly Refrigerant: Utilizes HFC-free refrigerant (R600a) for reduced environmental impact.
Certifications & Compliance:
- UL/C-UL listed, ensuring adherence to safety protocols.
- Meets NFPA and OSHA guidelines (45 and 70) for flammable storage.
Specifications:
| SKU |
Door Type |
Operating Temperature Range |
Certification |
Hinge |
| FF051WWW/0M |
Solid Swing Door |
-15°C to -25°C |
UL, C-UL Listed |
Right |
Additional Information:
| SKU |
Controller |
Electrical Information |
Dimensions |
Refrigerant |
| FF051WWW/0M |
Microprocessor |
115V, 60Hz, 1.4A, 1/8 HP |
23.625 in x 24.25 in x 32.19 in |
R600a |
Note: This unit requires 4 inches of clearance on the sides and back for adequate ventilation. Electrical components are not located in the interior of the freezer, and the compressor’s electrical components are sealed in a vapor-proof enclosure, enhancing safety.
