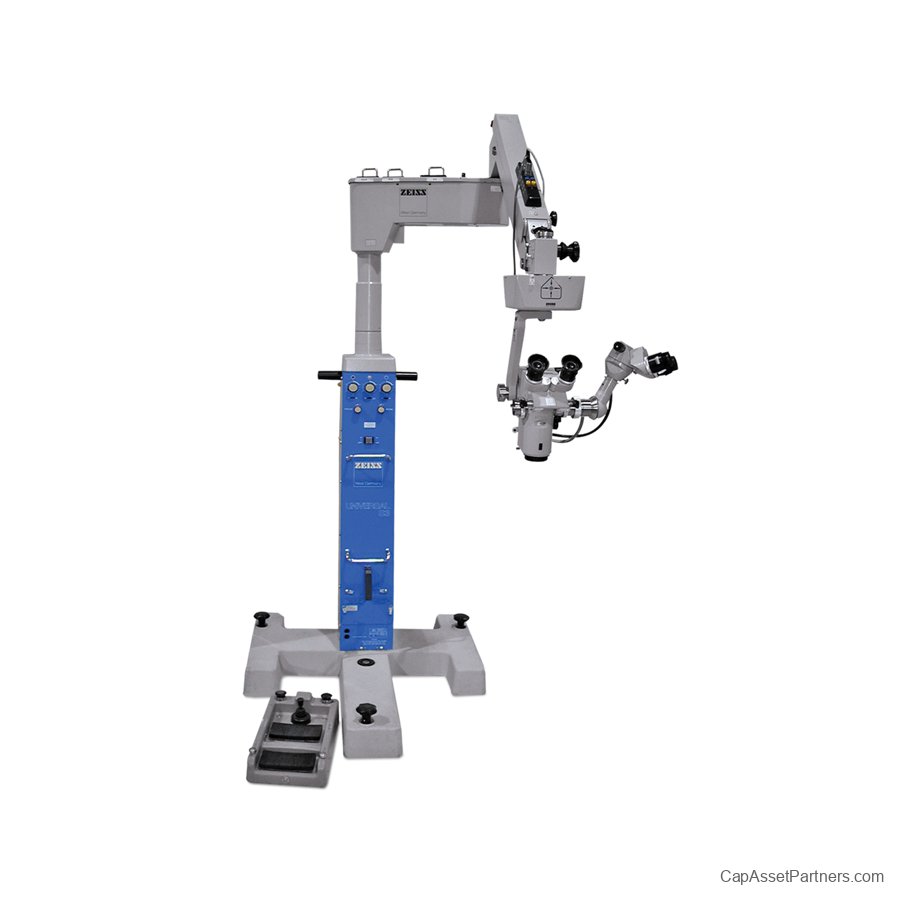

Zeiss OPMI-6S-FC on S3 Stand: Premium Surgical Microscope
Experience precision and clarity in your surgical procedures with the Zeiss OPMI-6S-FC mounted on the S3 Stand. Engineered with advanced optics and user-friendly features, this surgical microscope is designed to enhance visual acuity and support intricate procedures.

Key Features:

• Inclinable Binocular: Offers a range of 0-60 degrees for optimal viewing angles, ensuring comfort and reducing strain during operations.

• Two 12.5X Screw-In Eyepieces: Provides powerful magnification for detailed observations, making it ideal for various surgical applications.

• Fiberoptic Illumination: Delivers bright and consistent lighting directly onto the surgical field, facilitating clear visibility of intricate anatomical structures.

• f=200mm Objective: The high-quality objective lens enhances image sharpness and detail, essential for precision surgery.

• Twelve Function Foot Control: Allows for seamless operation and adjustments without interrupting workflow, improving the efficiency of surgical practices.

• X/Y with Auto-Center: Ensures smooth maneuverability and centering, enhancing the ease of use during delicate procedures.

The Zeiss OPMI-6S-FC on S3 Stand is a powerful addition to any surgical setting, combining technical prowess with user-centric design to meet the highest standards of medical excellence. Upgrade your practice and provide your patients with the best in surgical care.

Zeiss OPMI-6S-FC on S3 Stand Specifications:

• Optical System:

• Magnification Range: 4x - 25x

• Total Working Distance: 200 mm (7.87 in)

• Objective Lenses: 200 mm and 300 mm

• Illumination:

• Light Source: Halogen lamp

• Light Intensity: Adjustable

• Fiber Optic Illumination: Yes

• Mechanical Features:

• Height Adjustment: 800 mm - 1200 mm (31.5 in - 47.2 in)

• Arm Reach: 680 mm (26.8 in)

• Base Dimensions: 700 mm x 700 mm (27.6 in x 27.6 in)

• Ergonomics:

• Eyepiece Type: Binocular

• Eye Relief: 200 mm (7.87 in)

• Diopter Adjustment: Yes

• Accessories:

• Camera System: Compatible with various SLR and CCD cameras

• Surgical Loupes: Attachments available

• Laser compatibility options

• Weight:

• Total Weight: Approximately 112 kg (247 lbs)

• Power Supply:

• Voltage: 220-240 V / 110-120 V

• Frequency: 50/60 Hz

• Environmental:

• Operating Temperature: 10°C to 40°C (50°F to 104°F)

• Humidity: 30% to 75% non-condensing

Note: Ensure to check for specific configurations and additional features available for the OPMI-6S-FC model, as specifications can vary based on individual setups.
