Zeiss Opmi Visu 200 Ophthalmology Microscope

Do you have a Zeiss Opmi Visu 200 Ophthalmology Microscope you want to sell?

We buy used equipment! Learn about selling

Manufactured by: Zeiss

Category: Surgical Microscopes

Zeiss Zeiss Opmi Visu 200 Ophthalmology Microscope

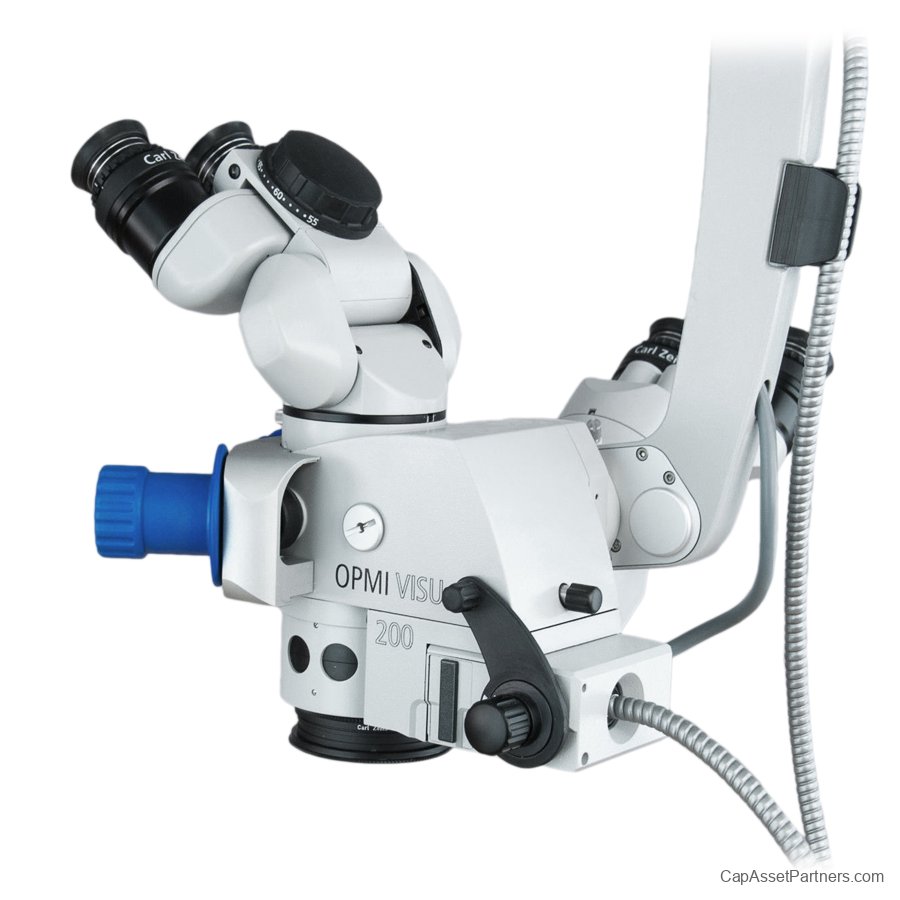

Zeiss OPMI Visu 200 Ophthalmology Microscope: Elevate Your Surgical Precision
Discover the Zeiss OPMI Visu 200 Ophthalmology Microscope, a state-of-the-art solution designed to enhance your surgical experience with its exceptional maneuverability and advanced optical features. Built on a mobile stand, this versatile microscope offers unparalleled positioning flexibility, allowing clinicians to tailor it to a wide range of surgical workflows with ease.

Key Features:

  • Apochromatic Optics: Enjoy stunning brilliance, definition, and contrast in every observation, ensuring high-quality visuals for optimal decision-making during procedures.
  • Maximized Image Quality: Designed to minimize eye fatigue, the OPMI Visu 200 promotes longer, more comfortable operating sessions.
  • Enhanced Red Reflex Light: Experience rich contrast and low reflections, making this microscope ideal for intricate eye surgeries.
  • Customizable Performance: Adjust magnification levels, lamp brightness, zoom, focus, and X/Y speeds to perfectly suit specific surgical needs.
  • Effortless Positioning: The user-friendly locking button design simplifies adjustments, allowing for swift and precise repositioning during procedures.
  • Intelligent Motor Speeds: The microscope smartly adapts motor speeds for XY movement and focus based on the current magnification, enhancing workflow efficiency.
  • Independent Operation: Both the main and assistant’s microscope can function independently, making collaborative surgeries more seamless.
  • Convenient Mobility: The large casters and ergonomic handle on the mobile floor stand allow for easy maneuvering within the surgical environment.

Upgrade your ophthalmic surgeries with the Zeiss OPMI Visu 200 Ophthalmology Microscope—where advanced technology meets user-centric design for superior surgical performance.
Zeiss Opmi Visu 200 Ophthalmology Microscope Specifications (Old)

Main Microscope
  • Apochromatic optics
  • Motorized zoom system, zoom ratio 1:6
  • Focusing range: 50 mm (1.97 in)
  • Tiltable tube: 50°, f=170 mm (6.69 in)
  • Objective lens: f=175 mm (6.89 in); f=200 mm (7.87 in) optional
  • Magnification: 5x - 30.1x
  • Field of view diameter: 7.5 - 44.9 mm (0.30 - 1.77 in)

Assistant’s Microscope
  • 5-step magnification changer
  • Separate fine focusing
  • Adjustable tilt angle, 30° optical wedge (optional)
  • Eyepieces: 10x

XY Coupling
  • Range of adjustment: 40 mm x 40 mm (1.57 in x 1.57 in)
  • Control for automatic reset of XY, zoom, focus
  • Inversion of XY direction of travel possible via foot control panel

Illumination
  • Fiber light guide, two lamp housings, each with two 12 V 100 W halogen lamps
  • Fully automatic change to back-up lamp in event of lamp failure
  • Filter against UV radiation
  • Protection against IR exposure
  • Footswitch control of illumination intensity

Weights
  • VISU 200 (without accessories): 13 kg (28.66 lbs)
  • S8 Floor Stand: approx. 200 kg (440.92 lbs)
  • Max. weight capacity of suspension arm (including VISU 200): 20 kg (44.09 lbs)

Electrical Design
  • Protection class 1, type B

Accessories
  • Fiber slit illuminator
  • Co-observation tubes (mono and stereo)
  • Video and 35 mm photography
  • Dual fiber illumination
