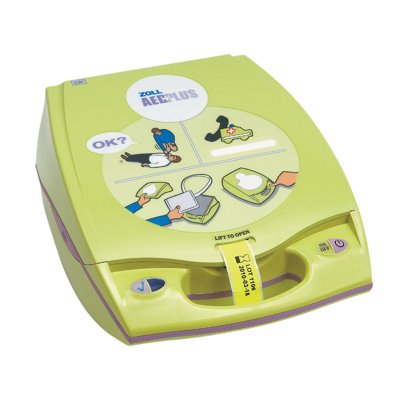

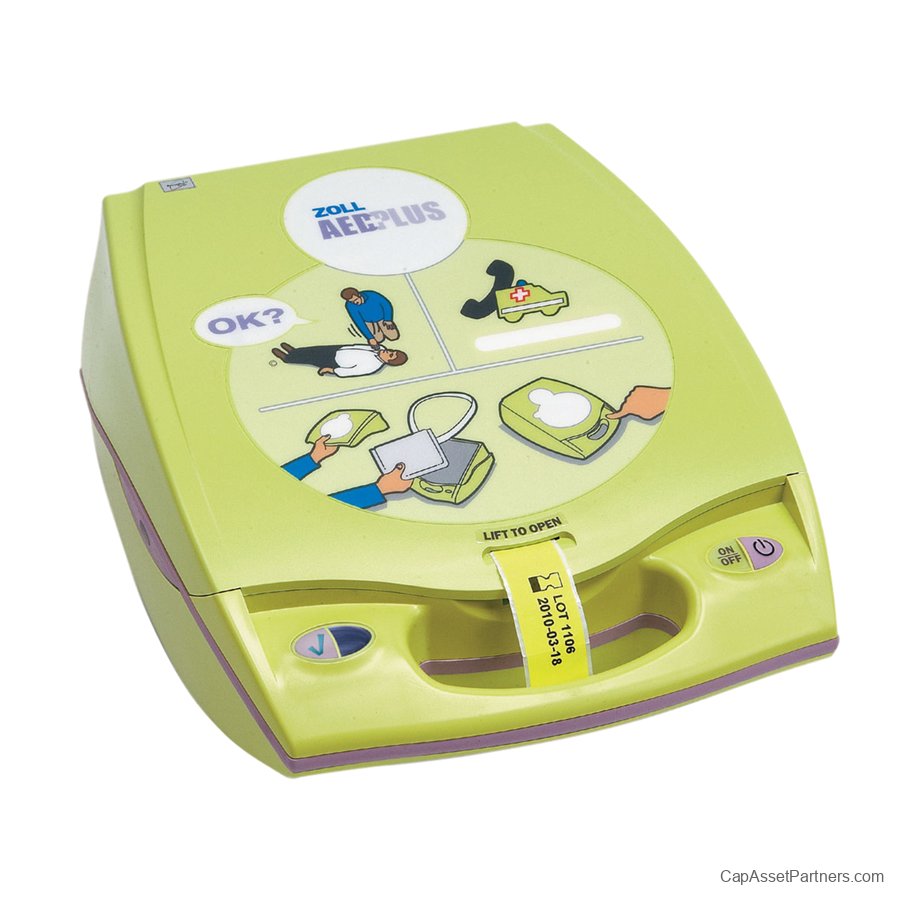

Zoll AED Plus Defibrillator

Zoll AED Plus Defibrillator: Your Lifesaving Companion
The Zoll AED Plus Defibrillator is an advanced life-saving device designed to empower both seasoned professionals and everyday individuals in emergency situations. With a unique graphical interface that combines clear pictures, text displays, and intuitive voice prompts, this AED guides rescuers step-by-step through the resuscitation process, ensuring every action is performed correctly and efficiently.
A Complete Road Map for Resuscitation
Confidence in a crisis is critical. The Zoll AED Plus provides essential feedback, allowing even infrequent rescuers to effectively respond to sudden cardiac arrest (SCA) incidents. Illuminated graphics draw attention to key actions, while voice and text cues help ensure that each life-saving step is followed in the proper sequence. This functionality not only enhances the likelihood of successful defibrillation but also streamlines the entire rescue process.
Comprehensive Support for Rescuers
In emergencies, every second counts. The Zoll AED Plus goes beyond standard defibrillation by incorporating Integrated CPR feedback, allowing rescuers to deliver high-quality cardiopulmonary resuscitation (CPR). This device supports the entire Chain of Survival, guiding users from assessing the victim's responsiveness to performing CPR and delivering defibrillation when necessary. With its innovative technology, including the CPR-D padz, rescuers receive instant feedback on their compression techniques, significantly improving the chances of survival.

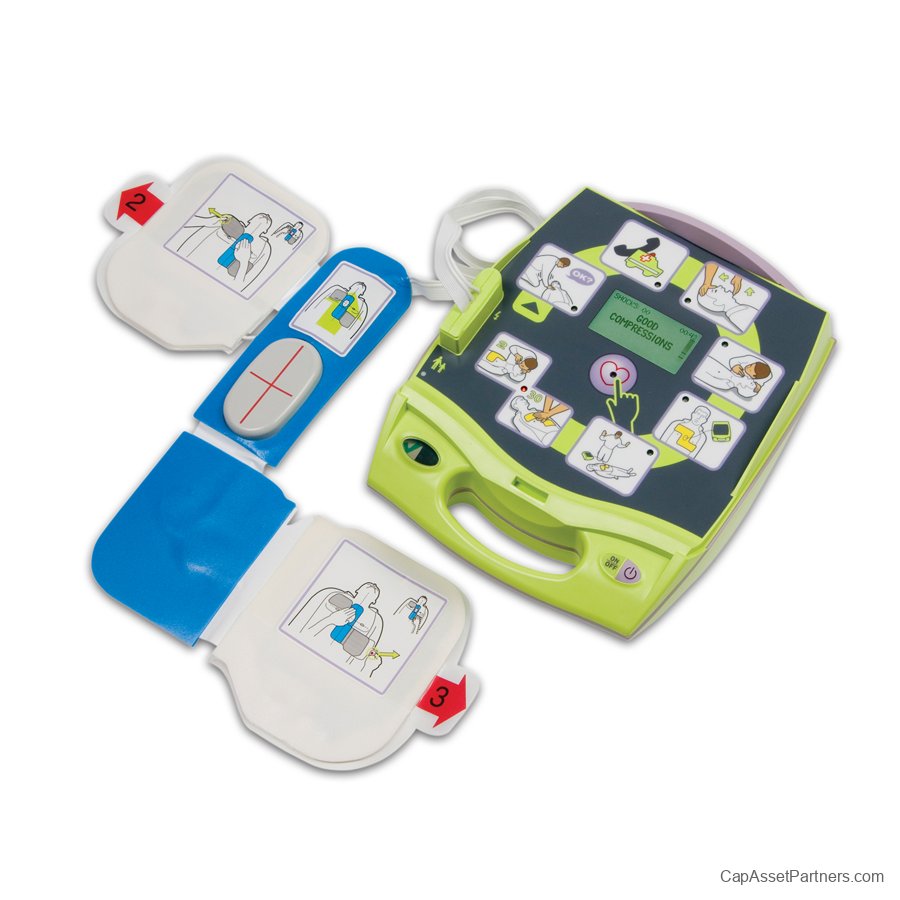

One Electrode Size Fits All
The Zoll AED Plus features a one-piece electrode design that accommodates the anatomical diversity within the patient population. Based on comprehensive anthropometric research, the CPR-D padz ensure a proper fit for 99% of human chest anatomies, while also providing flexibility to address unique cases. This thoughtful design maximizes efficiency in emergency situations, making it an ideal choice for various settings, from public spaces to healthcare facilities.
With the Zoll AED Plus Defibrillator, you are not just getting a device; you are gaining a vital tool that enhances your ability to respond effectively in emergencies. Trust Zoll to be your partner in saving lives.

Zoll AED Plus Defibrillator Specifications

Defibrillator

• Waveform: Rectilinear Biphasic

• Defibrillator Charge Hold Time: 30 seconds

• Energy Selection: Automatic preprogrammed selection (120J, 150J, 200J)

• Patient Safety: All patient connections are electrically isolated

• Charge Time: Less than 10 seconds with new batteries

• Electrodes: ZOLL CPR-D padz or stat padz II

• Built-in Defibrillator Self Test: Included

• CPR Metronome Rate: Variable 60 to 100 CPM

• Depth: 0.5 to 3 inches (1.3 to 7.8 cm)

• Defibrillation Advisory: Evaluates electrode connection and patient ECG for shockable rhythms (Ventricular fibrillation with average amplitude > 100 microvolts and wide complex ventricular tachycardia > 150 BPM)

• Patient Impedance Measurement Range: 0 to 300 ohms

• Defibrillator: Protected ECG Circuitry

• Display Format: Optional LCD with Moving Bar

• Size: 2.6 × 1.3 inches (6.6 × 3.3 cm)

• Viewing Time: 2.6 seconds

• Display Sweep Speed: 25 mm/sec (1 inch/sec)

• Battery Capacity:

• Typical new (20°C): 5 years (300 shocks) or 1.5 hours continuous monitoring/defibrillation

• End of life designated by Red X (typical remaining shocks = 100, 0.5 hours continuous monitoring/defibrillation)

• PC Minimum Requirements: Windows® 98, 2000, NT, XP; IBM-compatible PII or higher; 64MB RAM; VGA or better; CD-ROM drive; IrDA port; 2MB disk space

Device

• Size: 5.25 (H) × 9.50 (W) × 11.50 (D) inches (13.3 × 24.1 × 29.2 cm)

• Weight: 6.7 lbs (3.1 kg)

• Power: User Replaceable Batteries, 10 Type 123A Photo Flash lithium manganese dioxide batteries

• Device Classification: Class II, internally powered per EN60601-1

• Design Standards: Meets requirements of UL 2601, AAMI DF-39, IEC 601-2-4, EN60601-1, IEC60601-1-2

Environment

• Operating Temperature:

• PS Model: 32°F to 122°F (0°C to 50°C)

• PA Model: 50°F to 104°F (10°C to 40°C)

• Storage Temperature:

• PS Model: -22°F to 158°F (-30°C to 70°C)

• PA Model: 32°F to 122°F (0°C to 50°C)

• Humidity: 10% to 95% relative humidity, non-condensing

• Vibration: MIL Std. 810F, Min. Helicopter Test

• Shock:

• PS Model: IEC 68-2-27; 100G

• PA Model: IEC 68-2-27; 50G

• Altitude:

• PS Model: -300 to 15,000 ft (-91 m to 4573 m)

• PA Model: -300 to 7,500 ft (-91 m to 2287 m)

• Particle and Water Ingress: IP-55

• CPR-D padz Shelf Life: 4 years

• Conductive Gel: Polymer Hydrogel

• Conductive Element: Tin

• Packaging: Multilayer foil laminate pouch

• Impedance Class: Low

• Cable Length: 36 inches (91 cm)

• Sternum Dimensions:

• Length: 6.1 inches (15.5 cm)

• Width: 5.0 inches (12.7 cm)

• Conductive Gel Length: 3.5 inches (8.9 cm)

• Conductive Gel Width: 3.5 inches (8.9 cm)

• Conductive Gel Area: 12.3 sq inches (79.0 sq cm)

• Apex Dimensions:

• Length: 6.1 inches (15.5 cm)

• Width: 5.6 inches (14.1 cm)

• Conductive Gel Length: 3.5 inches (8.9 cm)

• Conductive Gel Width: 3.5 inches (8.9 cm)

• Conductive Gel Area: 12.3 sq inches (79.0 sq cm)

• Complete Assembly Dimensions (Folded):

• Length: 7.6 inches (19.4 cm)

• Width: 7.0 inches (17.8 cm)

• Height: 1.5 inches (3.8 cm)

• Design Standards Compliance: Meets ANSI/AAMI/ISO DF-39-1993 requirements
