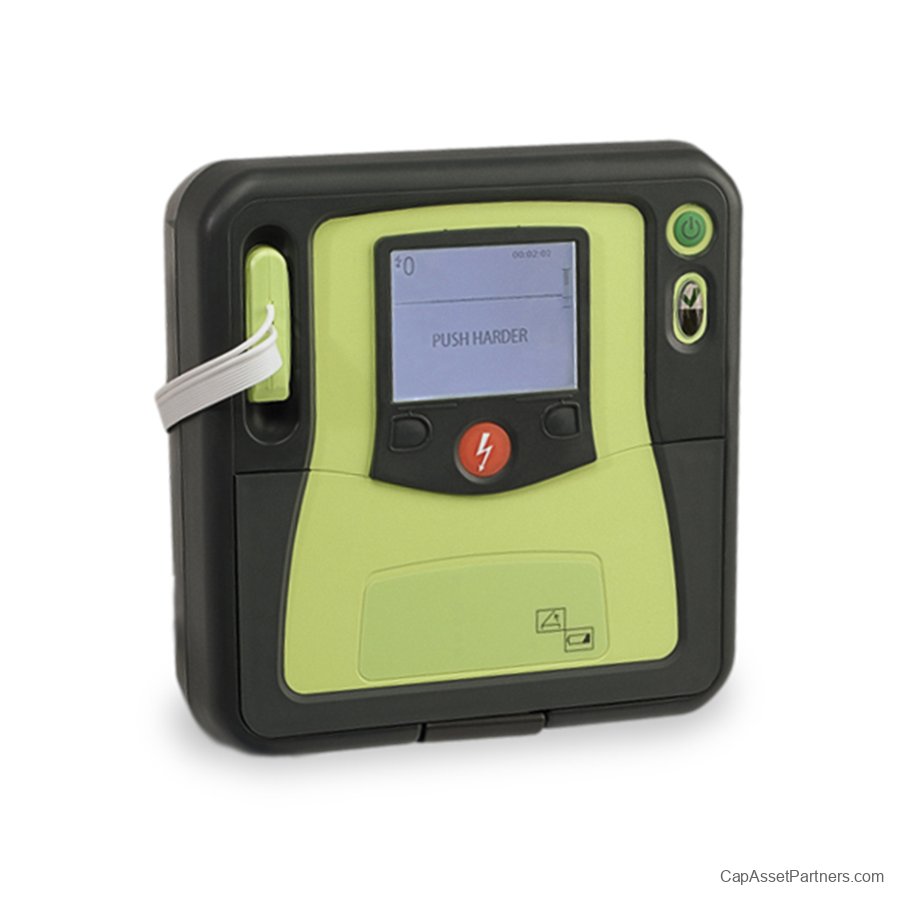

Zoll AED Pro Defibrillator

Zoll AED Pro Defibrillator

• Advanced Life-Saving Technology

The Zoll AED Pro Defibrillator sets a new standard in emergency response equipment, combining innovative features and rugged construction to ensure reliability in critical situations. Designed for both Basic Life Support (BLS) and Advanced Life Support (ALS) professionals, this durable AED delivers unmatched performance with its high-resolution LCD display, allowing responders to visualize a patient's ECG in real-time.
Key Features:

• Real CPR Help®: The Zoll AED Pro stands out with its unique Real CPR Help technology, providing real-time feedback that guides rescuers in delivering effective chest compressions. Benefit from a metronome set to the American Heart Association's recommended 100 beats per minute, along with visual and audible prompts to achieve optimal compression rate and depth.

• See-Thru CPR™: This innovative feature allows clinicians to monitor the patient's underlying cardiac rhythm without interruptions during CPR. By filtering out compression artifacts, rescuers can perform high-quality CPR while still assessing the effectiveness of their resuscitation efforts in real time.

• Rugged Durability: Built to withstand the rigors of emergency environments, the Zoll AED Pro's robust design enhances its usability for both BLS and ALS personnel, making it an essential tool for hospitals and emergency responders alike.

• Cost-Effective Compatibility: Simplify your emergency response training and operation with electrodes and batteries that are compatible with the Zoll M Series™ professional defibrillators, ensuring both functionality and savings.

• Comprehensive Data Storage: Equipped with seven hours of internal memory for data storage, the Zoll AED Pro also offers wireless or USB data transfer options, making patient data management efficient and accessible.

• Battery Options: Choose from long-life disposable or rechargeable batteries to customize the AED’s energy source according to your specific needs.

The Zoll AED Pro Defibrillator is the ideal choice for organizations looking to enhance their emergency response capabilities with a reliable, user-friendly, and advanced defibrillation solution. Elevate your preparedness today with this top-of-the-line medical equipment designed for excellence in life-saving interventions.

Zoll AED Pro Defibrillator Specifications

General

• Height: 9.2 inches (23.4 cm)

• Width: 9.4 inches (23.9 cm)

• Depth: 3 inches (7.6 cm)

• Weight: < 6.5 lbs (2.9 kg) with disposable battery and electrodes

• Design Standards: Meets or exceeds AAMI DF-80, EN 60601-1, EN 60601-1-2

• Patient Safety: All patient connections are electrically isolated

Environmental

• Temperature Operating: 0°C to 50°C (32°F to 122°F)

• Storage and Shipping: 30°C to 70°C (86°F to 158°F)

• Humidity: 10% to 95% relative humidity, non-condensing

• Vibration: MIL-STD-810F, Integrity Test for Helicopters

• Shock: IEC 60068-2-27; 100G

• Altitude Height: 300 to 15,000 ft (91 to 4573 m)

• Pressure: 768 to 429 mmHg (1024 to 572 millibars)

• Particle and Water Ingress: IEC 60529, IP 55

• Drop Test: 1.5 m per IEC 68-2-32

Defibrillator

• Waveform: ZOLL rectilinear biphasic waveform

• Energy Selection: Configurable preset energy levels for adult and pediatric patients in three-shock stacks

• Charge Time: < 10 seconds with a new, fully charged battery; longer with depleted battery packs

• Charge Hold Time:

• Semiautomatic mode: 30 seconds

• Manual mode: 60 seconds

• Energy Display: Displays selected energy level (manual mode only)

Charge Controls

• Semiautomatic Mode: Automated

• Manual Mode: Softkey

Defibrillation Electrode Pads

• ZOLL Single-Use, Pregelled Electrode Pads:

• CPR-D padz (includes CPR sensor)

• Adult statpadz II

• Pediatric pedipadz II

• Built-in Defibrillator self-test: Verifies proper charging and discharging

• Defibrillation Advisory: Evaluates electrode attachment and patient ECG

• Shockable Arrhythmia:

• Ventricular fibrillation (VF) > 100 µV

• Wide-complex ventricular tachycardia (VT)

• Adult: > 150 beats per minute

• Pediatric: > 200 beats per minute

• Valid Patient Impedance Range: 10? to 300?

CPR Monitoring

• Compression Depth: 0.75 to 3 inches ±0.25 inches (1.9 to 7.6 cm ±0.6 cm)

• Compression Rate: 50 to 150 compressions per minute

ECG Monitoring

• Input Protection: Fully defibrillation-protected

• Bandwidth:

• 1.4 to 22 Hz with defibrillation electrode cable

• 1.4 to 22 Hz (default) with AED Pro ECG cable

• 0.7 to 30 Hz as a configurable option

• ECG Lead: Lead II

• ECG Amplitude Range: ±5 mV

• Heart Rate Range: 30 to 300 beats per minute

• Heart Rate Accuracy: ±5 beats per minute

• Heart Rate Resolution: 1 beat per minute

• Heart Rate Alert:

• Configurable low heart rate limit: 30 to 100 beats per minute

• Off

Data Recording & Storage

• Type: Nonvolatile memory

• Capacity: 7 hours of ECG data

Display Screen

• Display Type:

• Liquid crystal display (LCD)

• High resolution: 320 pixels by 240 pixels

• Viewable Area: 2.27 in x 3.02 in (5.76 cm x 7.68 cm)

• Sweep Speed: 25 mm/s ±5%

• Viewing Time:

• 2.96 seconds (if CPR gauge displayed)

• 3.2 seconds (without CPR gauge)

Sealed Lead Acid

• Type: Rechargeable sealed lead acid

• Weight: 2.2 lbs (1 kg)

• Nominal Voltage: 10 V

• Recharge Time:

• 4 hours or less with:

• ZOLL Base PowerCharger 4x4

• ZOLL Base PowerCharger 1x1

Operating Time

• New, fully charged battery pack at 20°C:

• 170 defibrillator discharges at maximum energy (200 joules)

• 6 hours of continuous ECG monitoring

• CHANGE BATTERY warning appears after 115 maximum-energy discharges

• Standby life: 3 months before recharge or retest
