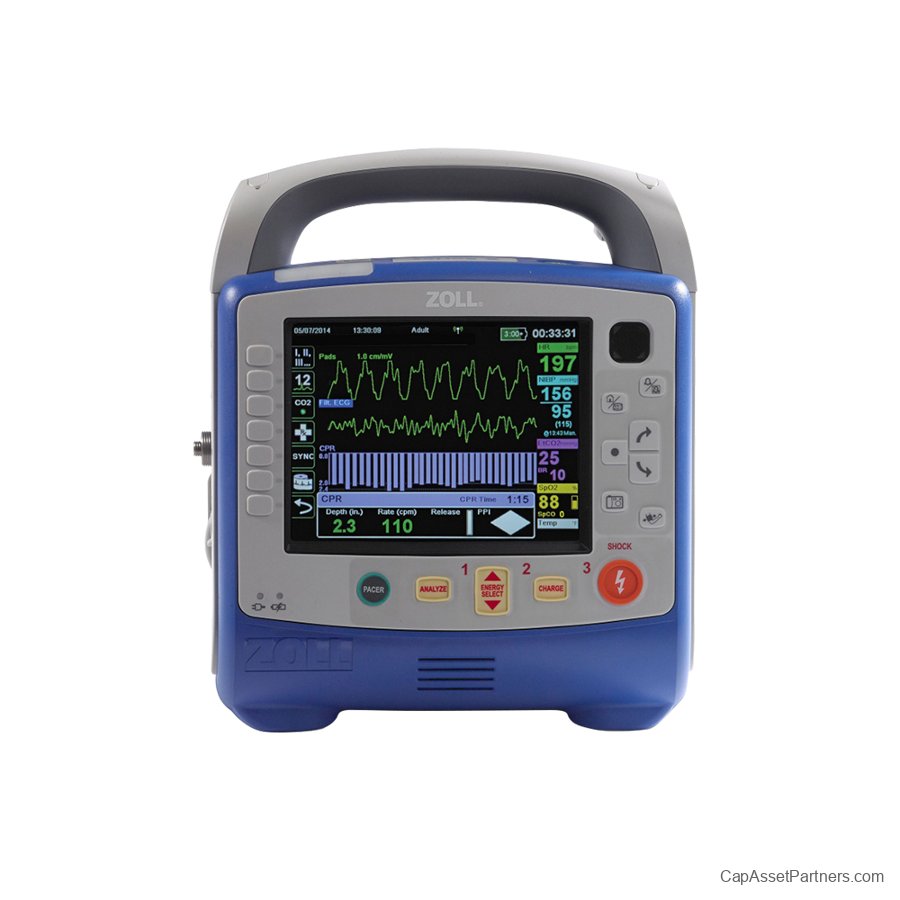

Zoll X Series Monitor / Defibrillator

Zoll X Series Monitor/Defibrillator – Lightweight and Feature-Rich

The Zoll X Series Monitor/Defibrillator redefines portability and performance in emergency medical care. Weighing in at less than 12 pounds, it is approximately half the size and weight of traditional full-featured monitor defibrillators, making it an ideal choice for EMS teams and hospital transport. Despite its compact design, the X Series does not compromise on functionality, offering an impressive display size and robust capabilities.

Key Features:

• Compact Design: Easily transportable with a weight under 12 pounds, enhancing mobility during emergencies.

• Large Color Display: Features a bright, easy-to-read screen for optimal viewing in critical situations.

• Advanced Monitoring: Equipped with comprehensive monitoring capabilities, including:

• ECG

• Masimo SET SpO2

• Masimo rainbow SET SpCO

• Masimo rainbow SET SpMet

• NIBP

• Microstream etCO2

• Impedance Pneumography

• Invasive Pressure

• TEMP

• Split-Screen Capability: Allows simultaneous viewing of a dynamic multi-lead ECG alongside a static 12-lead ECG report, facilitating informed decision-making.

• Multiple-Trace Functionality: Display up to four customizable waveforms or all 12 ECG leads at once for comprehensive monitoring.

• CPR Dashboard: Provides real-time depth and rate values, along with a CPR timer for enhanced life-saving efforts.

• See-Thru CPR: Minimizes disruptions by filtering out artifacts to provide clearer rhythms during CPR, ensuring accurate readings.

• Connectivity Options: Integrated WiFi, Bluetooth, and USB cellular modem enhance communication and data transfer capabilities.

• RescueNet Compatibility: Fully compatible with the RescueNet Link EMS communications system, allowing seamless integration into existing workflows.

• Data Management: Capable of acquiring, storing, and transmitting 12-lead data to Zoll’s price-efficient RescueNet 12-Lead and RescueNet MedGate 12-Lead management systems.

The Zoll X Series Monitor/Defibrillator is engineered to meet the rigorous demands of emergency medical environments, combining lightweight design with cutting-edge technology for reliable patient monitoring and care.

Zoll X Series Monitor / Defibrillator Specifications

General

• Weight: 11.7 lb (5.3 kg) with battery and paper

• Dimensions: 8.9 x 10.4 x 7.9 in (22.6 x 26.4 x 20.1 cm)

• Operating Temperature: 0 - 50°C (32 - 122°F)

• Humidity: 15 - 95% RH (non-condensing)

• Altitude: -170 m to 4572 m (-558 ft to 15000 ft)

Monitor / Display

• Size: 6.5 in (16.56 cm) diagonal

• Input: 3-lead, 5-lead, or 12-lead patient cable, paddles, or multifunction electrodes

• Type: Color LCD, 640 x 480 pixels, 800 MCD

• Sweep Speed: 25 mm/sec or 50 mm/sec (user selectable)

• Lead Selections: Paddles (Pads), I, II, III, AVR, AVL, AVF, V1-6

• Frequency Response (user selectable):

• Limited Mode: 0.67 - 20 Hz

• Monitor Mode: 0.67 - 40 Hz

• 0.25 - 40 Hz

• 0.05 - 150 Hz

Defibrillator

• Waveform: Rectilinear Biphasic

• Energy Selections: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 50, 70, 85, 100, 120, 150, 200 joules

• Energy Display: Indicates selected and delivered energy

• Charge Time: < 7 seconds with a new, fully charged battery

• Charge Controls: Front panel and on apex paddle

• Pads/Paddles: Hands-free pads and external adult and pediatric paddles; adult paddles slide off to expose pediatric paddles

• Synchronized Mode: Synchronizes defibrillator pulse to patient's R wave; “SYNC” message displayed on monitor, and markers shown on both monitor and recorded ECG
