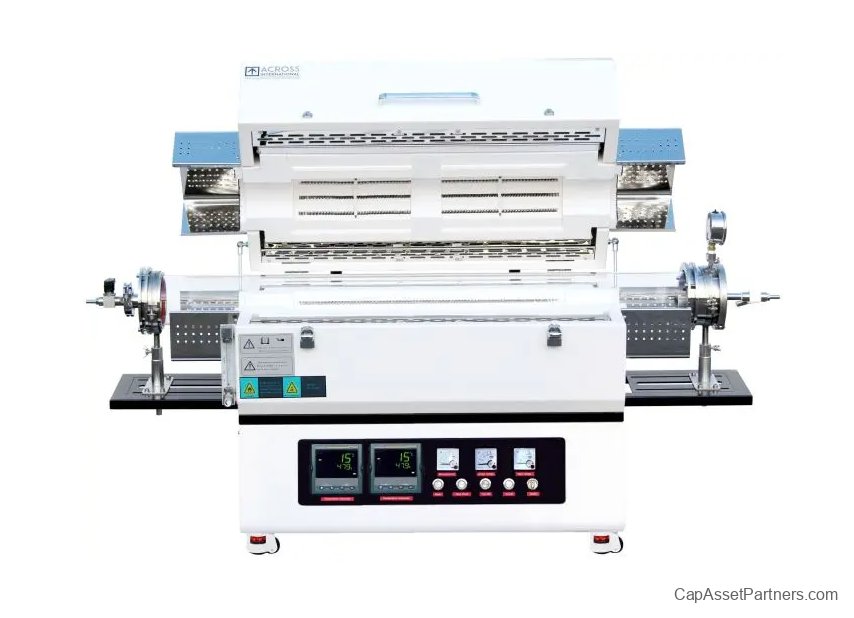

1200°C 2-Zone Top-Open Tube Furnaces

Introducing the advanced 1200°C 2-Zone Top-Open Tube Furnaces, designed for precision sintering of various materials and chemicals. These dual-zone tube furnaces feature a robust construction, utilizing premium heating elements made from renowned Kanthal coil wire sourced from Sweden, complemented by a high-quality fiber hearth manufactured in Japan.

Equipped with a state-of-the-art Shimaden fp93 high-precision temperature controller, these furnaces allow for accurate temperature management to ensure optimal performance in laboratory settings. The built-in computer interface facilitates the saving of temperature curve data, enabling thorough records and studies.

Key Features:

• 40 programmable segments with a remarkable ±1°C accuracy for precise temperature control.
• Double layer steel construction with dual cooling fans for enhanced thermal insulation and safety.
• Smartly designed split furnace chamber enables swift and convenient access to the tube.
• Stainless steel vacuum sealing flanges securely seal the tube, preventing contamination.
• Perfectly suited for the sintering process of a diverse range of materials and chemicals.
• Incorporates a built-in computer interface for seamless data integration.
• CE certified, ensuring compliance with high safety and quality standards.

Safety Features:

• Overheat protection automatically cuts off power when temperatures exceed the preset range.
• Thermocouple protection safeguards against power loss in case of thermocouple malfunction.
• Temperature variation protection cuts off power if the actual temperature deviates significantly from the target temperature.
• Power failure protection restores operation immediately after power is reinstated.
• Secure stainless steel flange support ensures stability and exact positioning of the tube and flanges.
• Important: Never fill the furnace with explosive gases, including Hydrogen, Carbon Monoxide, and Methane.

Included in the TFM2 Series:

Specifications:

Additional Information:
