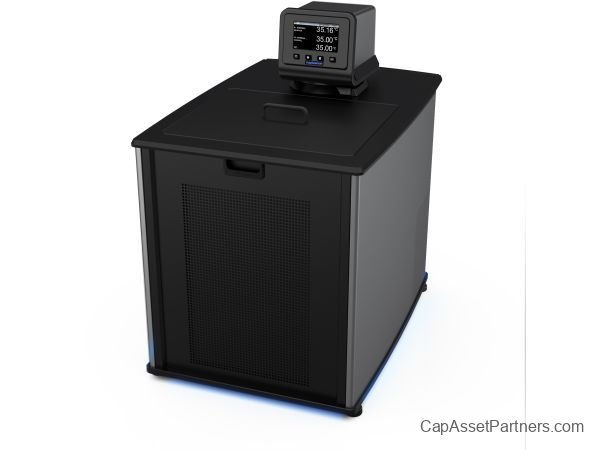

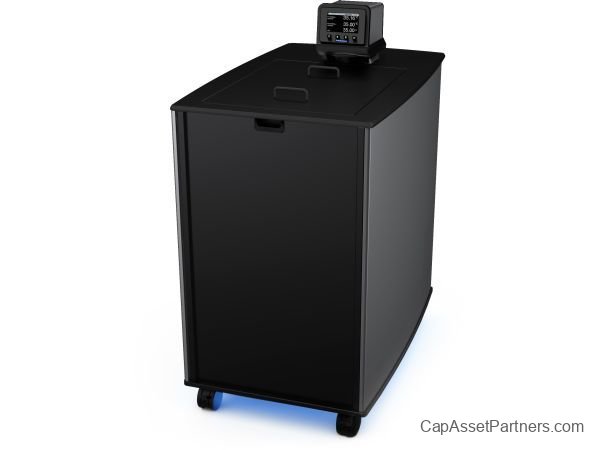

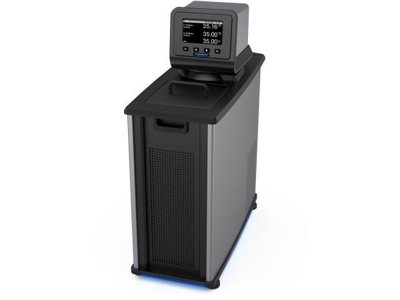

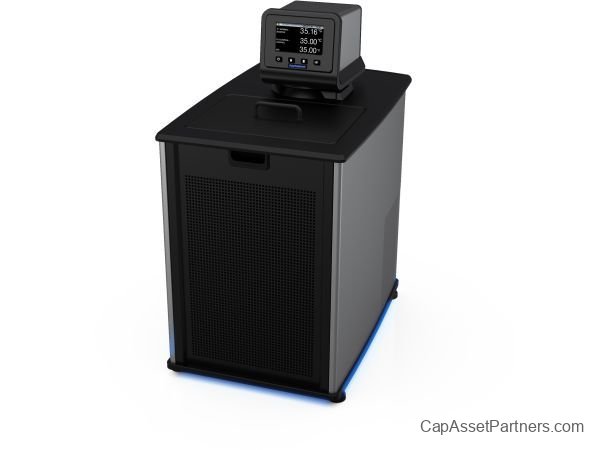

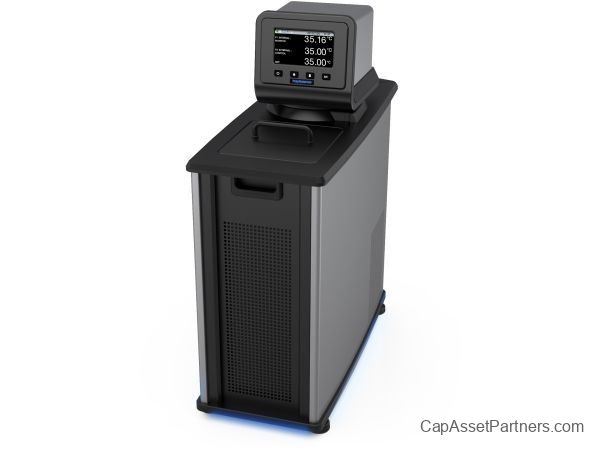

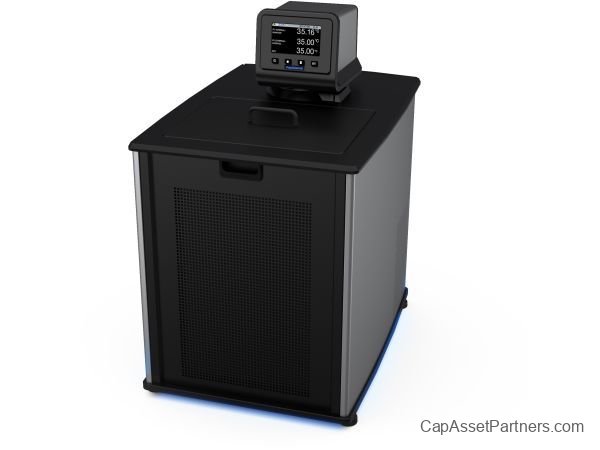

Advanced Programmable Refrigerated/Heated Circulating Baths
Experience precision and reliability with the Advanced Programmable Refrigerated/Heated Circulating Baths, designed for varied applications in laboratories and research environments. These advanced systems provide precise temperature control, exceptional connectivity, and user-friendly operation, ensuring optimal performance for your experiments.
Key Features
- Precise Temperature Control: With a temperature stability of ±0.01°C, the controller shows actual bath temperatures with 1/1000° resolution and trends over periods from 4 minutes to 10 days. Enhance precision with advanced fluid tuning and user-settable temperature averaging.
- Powerful Programming: Create and modify your time/temperature profiles effortlessly. The controller supports up to 10 programs with 100 steps each, featuring settable time or temperature priority for flawless execution. Preview, share, or set programs to run automatically with ease.
- Extensive Connectivity: Compatible with various communication protocols, control your circulator through Ethernet, RS232, RS485, USB-A, and USB-B. Notably, you can also mimic command protocols from other systems, facilitating operation via iPhone®.

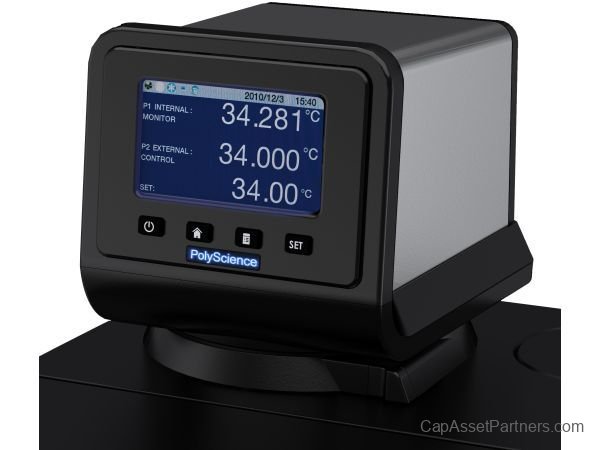

- User-Friendly Interface: The intuitive touch screen operation simplifies temperature adjustments and programming. On-screen assistance guides users through setup and operation.
- Safety Assurance: Compliant with Class III flammability ratings (DIN 12876-1) and featuring redundant over-temperature protection, high/low temperature alarms, and lockout capabilities to prevent unauthorized changes.
Specifications
| Maximum Temperature |
200°C |
| Temperature Stability |
±0.01°C |
| Swivel 180™ Rotating Controller |
Yes |
| Pump |
Variable-Speed |
| Max. Pressure Flow Rate @ 60 Hz |
20.1 LPM |
| Max. Suction Flow Rate @ 60 Hz |
14.7 LPM |
| Closed-Loop Operation |
Yes |
| Open-Loop Operation |
Yes |
| Fluid Optimization / Specific Heat Tuning |
Yes |
| Temperature Calibration Capability |
5-point |
| External Temperature Control Capability (Pt100) |
Yes |
| WhisperCool™ Environment Control System |
Yes |
| Inert Gas Reservoir Purge |
Yes |
| Display Type & Size |
SmartTouch™ Color LCD (4.3 inches) |
| Enhanced Data Display Capability |
7 selectable views |
| Multi-Language Menus or Prompts |
6 languages |
| Displays Temperature Trend |
Yes |
| Time/Temperature Programs & Steps |
Ten 100-Step Programs |
| Date & Time with Calendar Start/Stop |
Yes |
| Timer |
Yes |
| On-Screen Help or Prompts |
Yes |
| RS232/RS485 Serial Output |
Yes |
| USB A and USB B |
Yes |
| Ethernet |
Yes |
| Safety Class (DIN 12876-1) |
III |
| Over-Temperature Protection |
Yes |
| Failsafe Heater Control |
Yes |
| High and Low Temperature Limits/Alarms |
Yes |
| Low-Liquid-Level Safety |
Yes |
| Alarm and Fault Indicators |
Message |
Model Selection and Specifications
| Model |
Temperature Range |
Cooling Capacity @ 20°C |
Heater Capacity |
Electrical |
| 7-Liter Low-Profile |
-20° to +200°C |
200 W |
1100 W (60 Hz) |
120 VAC, 60 Hz |
| 7-Liter |
-20° to +200°C |
200 W |
1100 W (60 Hz) |
120 VAC, 60 Hz |
| 15-Liter |
-30° to +200°C |
915 W |
2200 W (50/60 Hz) |
208-240 VAC, 50/60 Hz |
| 20-Liter |
-30° to +200°C |
915 W |
1100 W (60 Hz) |
120 VAC, 60 Hz |
| 45-Liter |
-25° to +135°C |
1400 W |
2200 W (50/60 Hz) |
208-240 VAC, 50/60 Hz |
