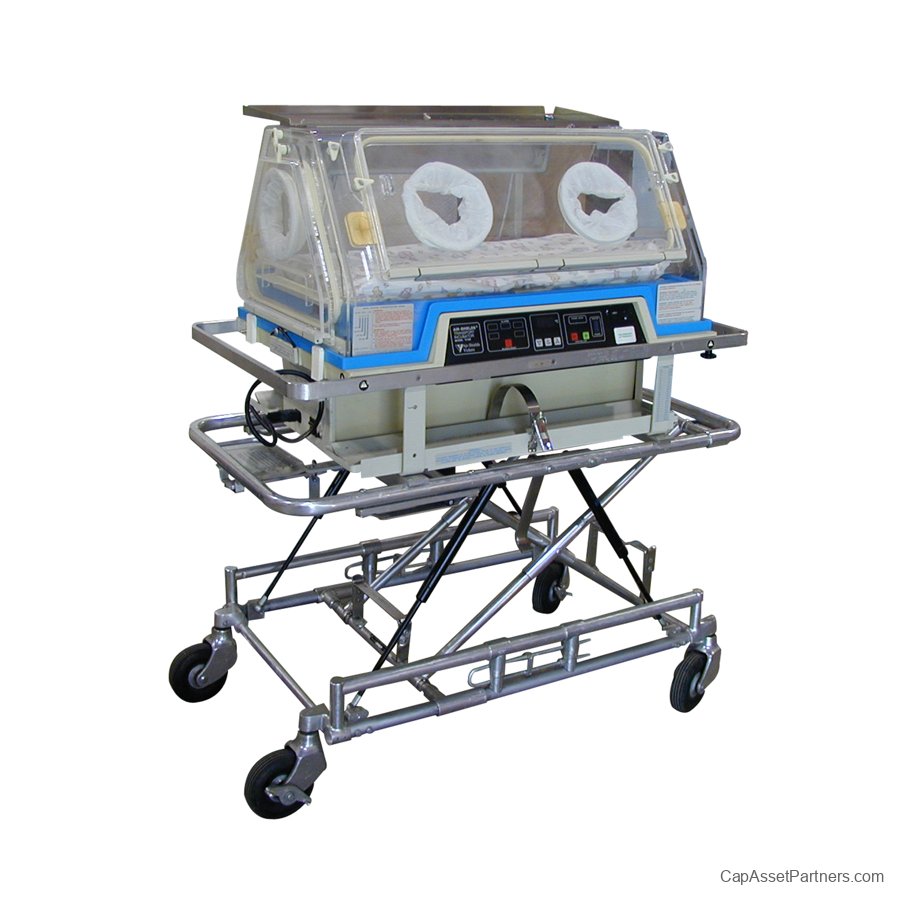

Air-Shields TI-100 Transport Incubator

Air-Shields TI-100 Transport Incubator: Optimal Care for Newborns on the Move
The Air-Shields TI-100 Transport Incubator is designed specifically for the safe transport of high-risk, premature, low birth-weight, or critically ill newborns. With its advanced features, this incubator provides essential environmental control, ensuring that fragile infants receive the care they need during transport.

Key Features:

• Environmental Control: Effectively manages air temperature, oxygen concentrations, and relative humidity, offering a supportive and stable environment.

• Enhanced Visibility: The double-wall hood not only provides full visibility of the infant but also acts as an effective thermal barrier, protecting against environmental fluctuations.

Specifications:

• Dimensions (with stand):

• Length: 40.25 in. (102 cm)

• Width: 22.25 in. (56.5 cm)

• Height: 46.75 in. (118.7 cm) maximum, 34.75 in. (88.3 cm) minimum

• Power Requirements:

• AC: 110-120 VAC, operating at 50/60/400 Hz, drawing between 170/200 Watts and 225/270 Watts with battery charging.

• DC: 12 VDC, consuming 115 Watts.

• Battery Specifications:

• Type: Gel-type, sealed, and rechargeable.

• Voltage: 12 VDC nominal.

• Number of Batteries: 2 with a charging time of 20 minutes from a fully discharged state, and a life expectancy of at least 200 full charge/discharge cycles.

Safety and Alarms:

The Air-Shields TI-100 is equipped with various alarms to ensure the safety of the newborn:

• High Temperature

• Sensor Integrity

• Power Failure

• Heater Overtemperature

• Low DC Voltage

Temperature Control:

• Set Point Range: 21.5 °C ± 1.0 °C to 38 °C

• Rise Time: 30 minutes

• Variability: 0.2 °C

• Overshoot: Maximum of 1.5 °C

• Uniformity: Maintains a steady 1 °C variance.

The Air-Shields TI-100 Transport Incubator exemplifies a commitment to neonatal care, making it an ideal solution for hospitals and clinics focused on the transport of vulnerable infants. Whether you’re looking for new or educational models, explore our range to find the perfect fit for your needs.

Air-Shields TI-100 Transport Incubator Specifications

• Weight: 49 lbs (22 kg)

• Dimensions:

• Length: 32 in (81 cm)

• Width: 20 in (51 cm)

• Height: 17 in (43 cm)

• Temperature Range: 90°F to 104°F (32°C to 40°C)

• Temperature Stability: ± 0.5°F (± 0.3°C)

• Working Volume: 1.5 cu ft (42.5 L)

• Humidity Control: Optional, with range up to 95% RH

• Power Supply: 115V/60Hz (Optional 230V/50Hz)

• Heat Source: Electric, with forced air circulation

• Patient Weight Limit: 10 lbs (4.5 kg)

• Safety Features:

• Alarm system for temperature deviations

• Visual and audible alarms for power failure

• Transport Features:

• Built-in wheels for mobility

• Quick release locking system

Additional Features:

• Transparent acrylic shell for visibility

• Easy-to-read digital display for monitoring

• Removable access ports for easy access to the infant

Note: Ensure compatibility with all required medical standards and regulations in your region when using this device.
