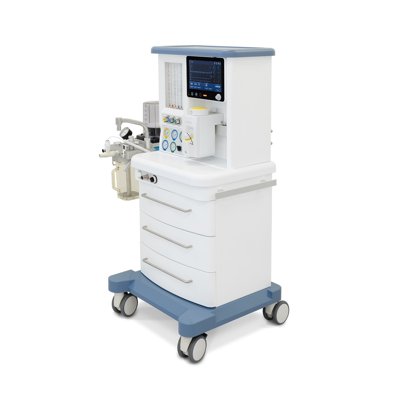

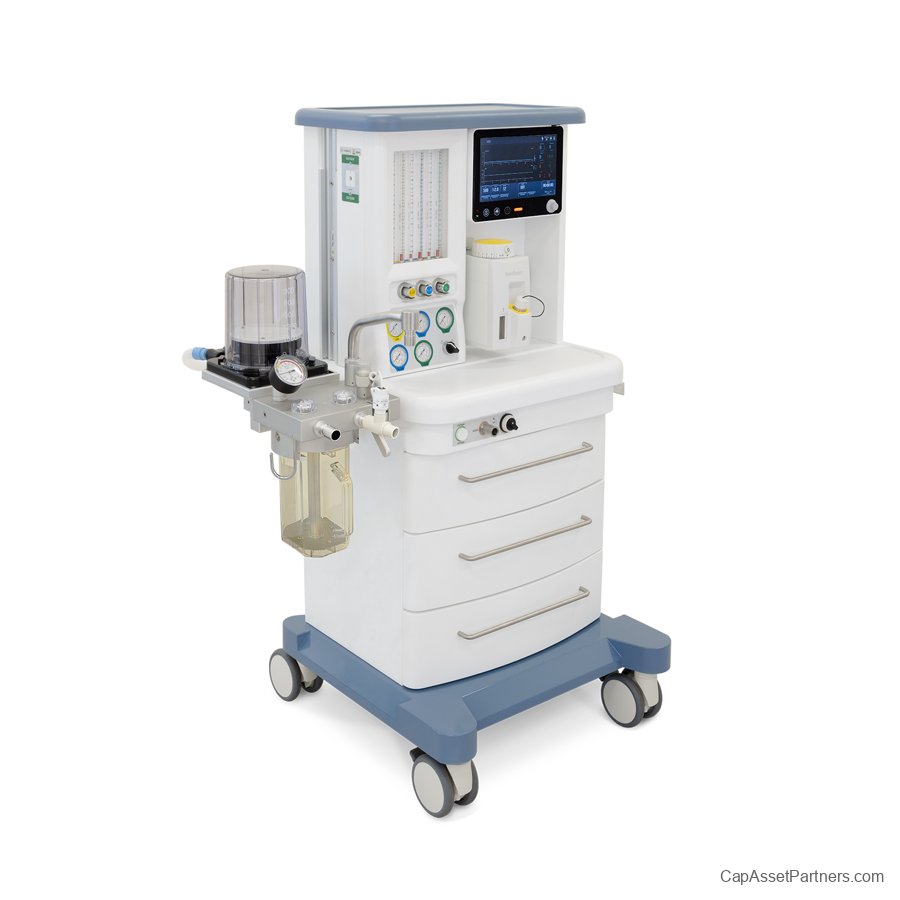

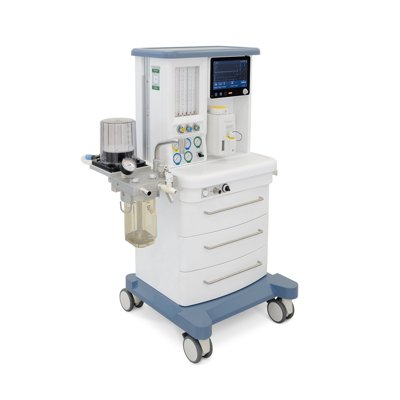

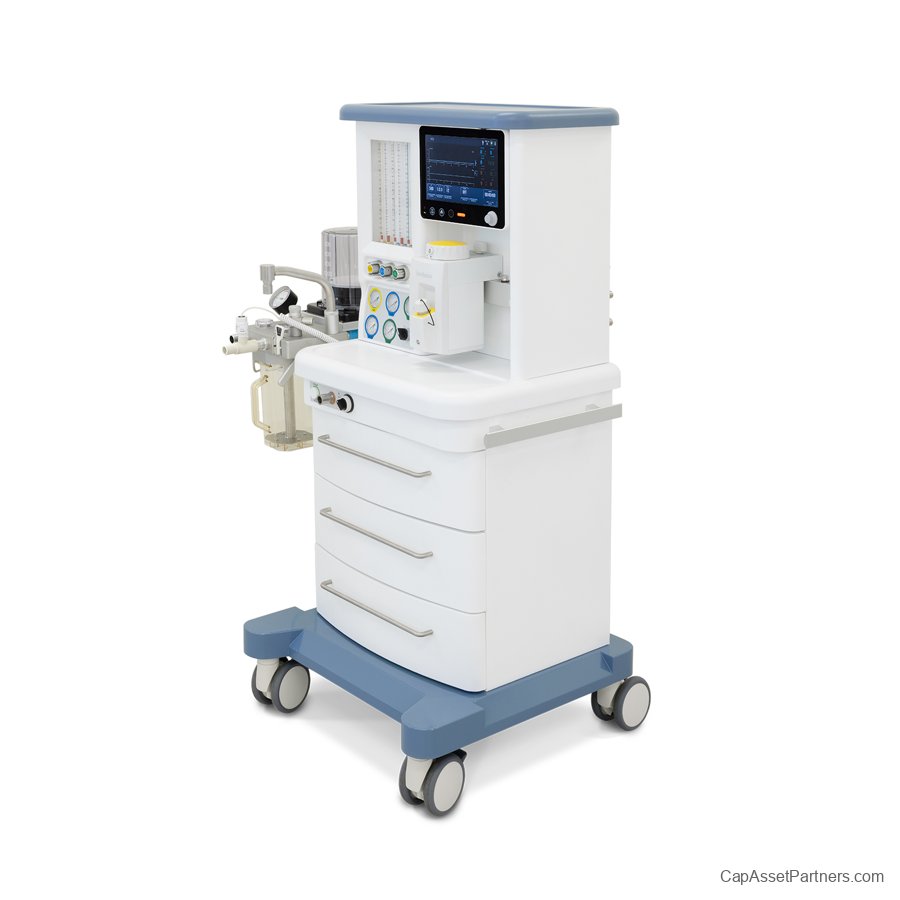

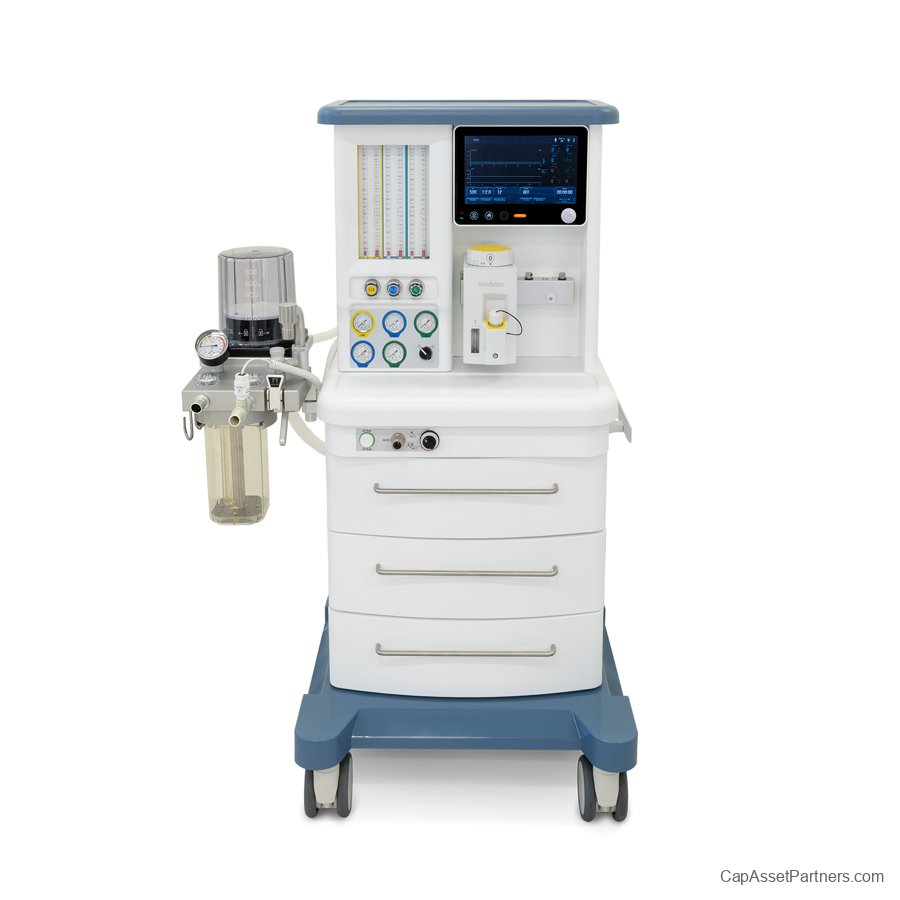

Avante Alta V10 Anesthesia Machine

Avante Alta V10 Anesthesia Machine
The Avante Alta V10 Anesthesia Machine is a comprehensive solution tailored for the management of anesthesia across a diverse range of patients, from pediatric to adult care. Engineered for ease of use, it features a large 10.4" integrated color touchscreen that provides intuitive access to all functionalities. This machine is designed for optimal efficiency in clinical environments, equipped with three storage drawers and four casters, allowing for seamless mobility throughout your facility.

Key Features:

• Large Monitor Display: The 26.4 cm (10.4") touchscreen offers clear visibility and straightforward operation.

• Versatile Ventilation Modes: Fully equipped with all major modes of anesthesia ventilation, ensuring flexibility and reliability during procedures.

• Comprehensive Gas Delivery: Includes connections for O2, N2O, and Air, along with six-flow tubes to accommodate various clinical needs.

• Auxiliary O2 Input: Additional oxygen input is available for nasal cannula and other O2 delivery systems.

• Vaporizer Mounting Options: Two vaporizer mounts on the back bar and a Selectatec mounting bar for versatile vaporizer configurations.

• Optional Pin Yoke System: Includes options for O2 and N2O pin yoke systems to enhance your gas management capabilities.

For healthcare professionals looking for a reliable, feature-rich anesthesia machine, the Avante Alta V10 stands out as an ideal choice to enhance patient care and streamline operations.

Avante Alta V10 Anesthesia Machine Specifications

Anesthesia Ventilation Modes:

• VCV

• PCV

• SIMV-VC

• Manual

• Standby

• Optional: SIMV-P

Setting Ranges:

• Tidal volume: 50 – 1500 mL (optional: 10 – 1500 mL)

• Respiratory rate: 1 – 100 bpm

• Inspiratory time: 0.1 - 10 seconds

• Percentage of inspiratory pause: 0 – 50%

• PEEP: Off, 3 – 20 cm H2O

• Pressure support: 0 – 70 cm H2O

• Flow trigger: 0.5 - 20 L/min

• Pressure trigger: 0 – 20 cm H2O

• PSV inspiratory termination level: 5 – 80%

Monitored Parameters:

• Inspiratory tidal volume: 0 – 2500 mL

• Expiratory tidal volume: 0 – 2500 mL

• Spontaneous minute ventilation: 0 – 60 L/min

• Minute ventilation: 0 – 60 mL/min

• Respiratory ratio: 4:1 to 1:10

• Compliance: 0 – 300 mL/cm H2O

• Peak airway pressure: 0 – 100 cm H2O

• Mean airway pressure: 0 – 100 cm H2O

• PEEP: 0 – 100 cm H2O

• Inspiratory plateau pressure: 0 – 100 cm H2O

• FiO2 (optional): 15 – 100%
