Avante Sage 12c Holter Monitoring System

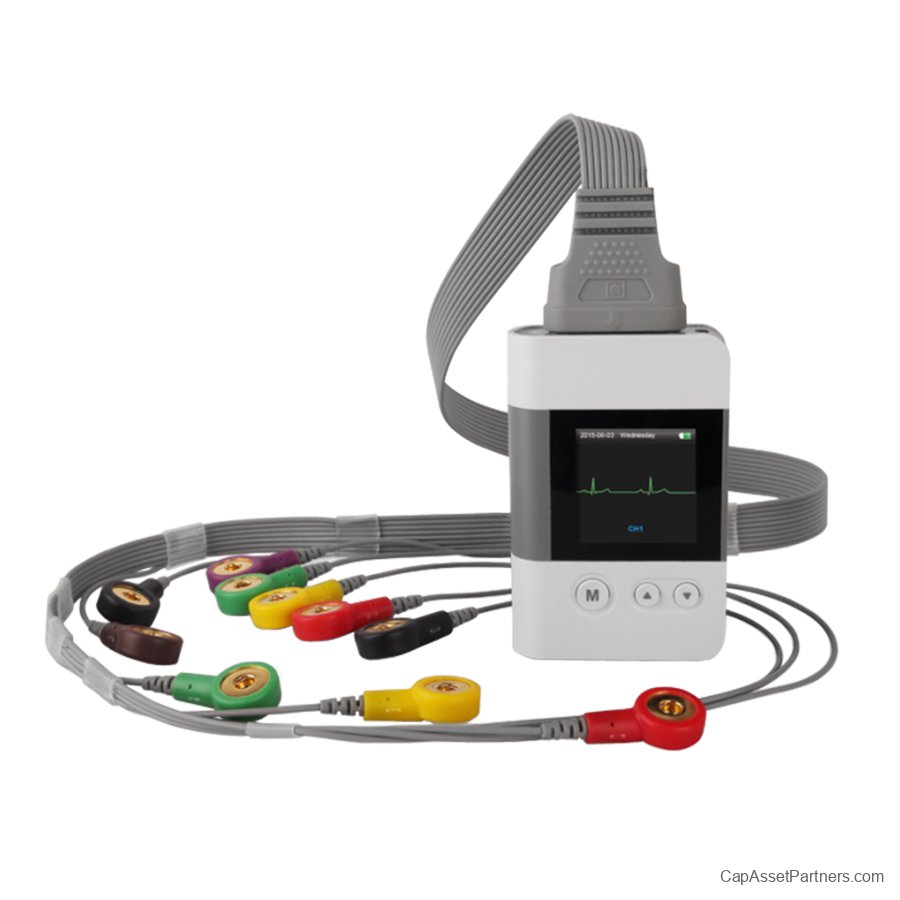

The Avante Sage 12c Holter Monitoring System combines lightweight and durable hardware with sophisticated data processing software, making it an essential tool for effective cardiac monitoring in various clinical settings. Weighing just 50 grams and featuring a robust waterproof design, this device ensures that patients can maintain their daily activities while being continuously monitored. Its long battery life supports up to eight days of data recording using a single AAA battery, providing convenience and reliability.

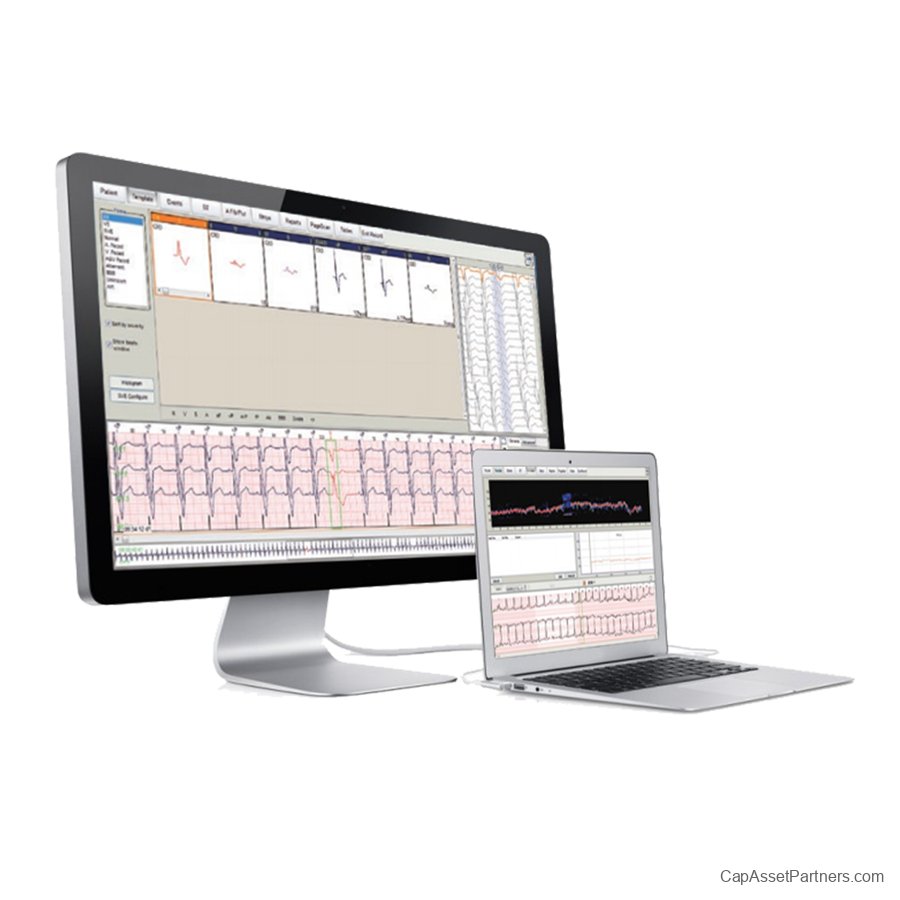

Accessing and analyzing data is seamless with the onboard micro SD card slot and USB port. The advanced analysis capabilities of the Sage 12c include monitoring for Atrial Fibrillation/Flutter, Heart Rate Variability, Heart Rate Turbulence, Obstructive Sleep Apnea, and ST Segment Analysis, empowering clinicians to make informed decisions based on accurate data.

Features:

  • 12-Channel Holter System: Displays real-time waveforms for precise monitoring.
  • Durable and Waterproof: Designed to endure daily use in diverse care environments.
  • Lightweight Design: Extremely portable at only 50 grams, making it easy for patients to wear.
  • Extended Battery Life: Records up to eight days of vital ECG data with just one AAA battery.
  • OLED Display Screen: Clear visualization of waveform data for enhanced monitoring.
  • Comprehensive Analysis Software: Tracks Atrial Fibrillation/Flutter, Heart Rate Variability, Heart Rate Turbulence, and Obstructive Sleep Apnea.
  • Customizable Settings: Features pacemaker detection and adjustable sampling rates to meet specific patient needs.
  • Flexible Storage Options: Onboard settings allow for recording durations of 24, 48, 96 hours, or up to eight days.
  • Quick Data Transfer: Easily download monitoring data through a micro SD card or USB connection, with rapid loading times of under 20 seconds.

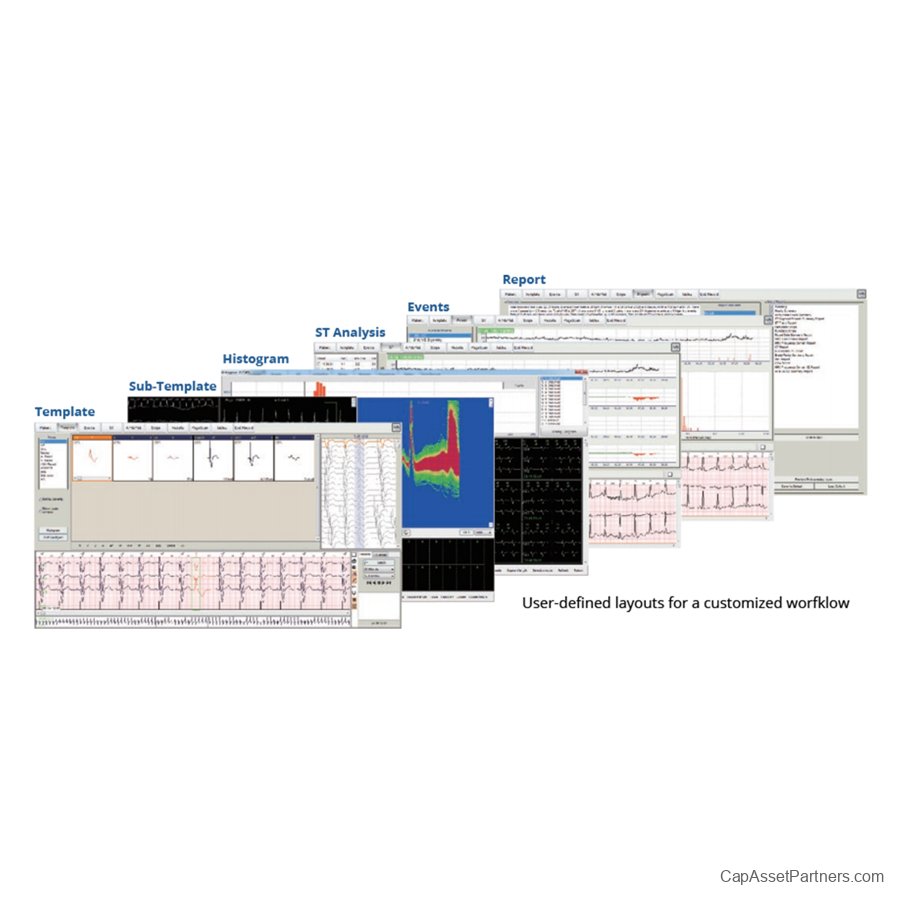

  • Extensive Data Analysis: Offers a detailed histogram of trend data along with ST segment analysis and bulk modification features.

The Avante Sage 12c Holter Monitoring System is designed for healthcare professionals seeking efficiency and accuracy in cardiac monitoring, ensuring patients receive optimal care without disruption to their daily routines.
Avante Sage 12c Holter Monitoring System Specifications:

Physical:
  • Dimensions: 2.68 in x 2.08 in x 0.63 in (68 mm x 53 mm x 16 mm)
  • Weight: 42 g approx (excluding battery)
  • Enclosure: Molded plastic / water resistant
  • Operating Position: Belt clip, lanyard

Environmental:
  • Storage Temperature: -20ºC (-4ºF) to +55ºC (+131ºF)
  • Operating Temperature: +5ºC (+41ºF) to +40ºC (+104ºF)
  • Storage Relative Humidity: 25% to 93% (Non-Condensing)
  • Operating Relative Humidity: 25% to 80% (Non-Condensing)
  • Storage Atmospheric Pressure: 700 hPa to 1060 hPa
  • Operating Atmospheric Pressure: 860 hPa to 1060 hPa

Battery:
  • Battery Type: 1 AAA alkaline battery or Ni-MH battery
  • Battery Life: Alkaline battery ? 48 hours

Performance:
  • Channels: 12 channels
  • Recording: Full disclosure, no data compression
  • Frequency Response: 0.5 - 60 Hz (+0.4 dB) (-3.0 dB)
  • Input Impedance: 10 M?
  • Gain: 1/2 X, 1 X and 2 X
  • CMRR: ? 60 dB
  • Sample Rate: 128 to 1024 samples/second
  • A/D Resolution: 8/10/12/16 bit sampling
  • ECG Signal Verification: LCD at hook-up or on demand
  • Data Transmission: Through USB cable or SD card reader
