Avante Velocity Pro Wireless ECG

Avante Velocity Pro Wireless ECG: Advanced ECG Solution

The Avante Velocity Pro Wireless ECG is a state-of-the-art, comprehensive ECG system designed for optimal performance and user convenience. This advanced solution integrates cutting-edge hardware, intuitive PC ECG software, and all essential accessories to deliver exceptional resting ECG capabilities. It supports an impressive duration of up to half an hour for ECG acquisitions while providing full waveform visibility.
Key Features:

• Flexible Lead Options: Choose from nine, 12, 15, or 18 lead setups, ensuring flexibility to meet various clinical requirements.

• Built-in Functionality: The system includes features such as automatic arrhythmia detection and built-in lead reversal, enabling accurate readings every time.

• User-Friendly Interface: Create unlimited user-defined protocols and generate automatic 12-lead reports for efficient patient management.

• Advanced Analysis Features: Access VCG, TVCG, SAECG, QTD, HRV, and HRT analysis capabilities for comprehensive patient assessments.

• Real-Time Signal Quality Monitoring: Trust in signal quality indicators to provide reliable connections throughout ECG acquisition.

• Interactive Color-Coded Lead Map: This feature coordinates with ECG waveforms, allowing for easy interpretation and event marking for future analysis.

• Robust Data Management: Complete ECG data management supports sharing reports via email and features multi-user configurations with customizable permissions. Supported formats include XML, SCP, DICOM, PDF, JPG, BMP, TIF, and PNG.

• Rapid Diagnosis Support: Assessment tools for ST segments, METs, Double Product, Duke Score, and FAI% are included to enhance diagnostic accuracy.

• Integrated ECG Glossary: Access a built-in glossary complete with diagnostic templates and descriptions to aid in interpretation.

• Compatibility: Fully compatible with Windows 8 and Windows 10 platforms, ensuring seamless integration into existing workflows.

• Optional Stress Test: The device can be upgraded to include a stress test configuration for expanded capabilities.

Experience the synergy of innovation and reliability with the Avante Velocity Pro Wireless ECG—your complete solution for comprehensive ECG management.

Avante Velocity Pro Wireless ECG Specifications

Dimensions

• DE18/DE15 ECG Sampling Box: 5.47 in × 3.78 in × 0.98 in (± 0.2 in) | 139 mm × 96 mm × 25 mm (± 5 mm)

• DP12 ECG Sampling Box: 5.83 in (L) × 3.94 in (W) × 1.57 in (H) (± 0.08 in) | 148 mm × 100 mm × 40 mm (± 2 mm)

• DX12 Transmitter: 2.48 in (L) × 4.21 in (W) × 0.91 in (H) (± 0.08 in) | 63 mm × 107 mm × 23 mm (± 2 mm)

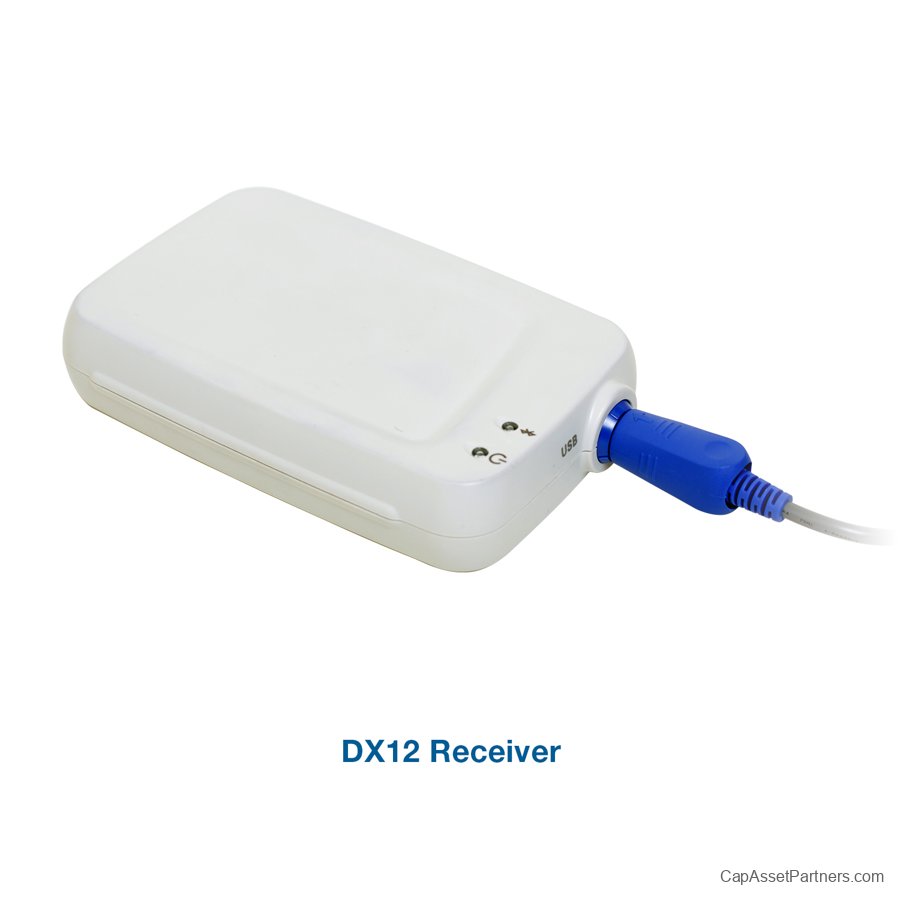

• DX12 Receiver: 6.10 in (L) × 3.94 in (W) × 1.18 in (H) (± 0.08 in) | 155 mm × 100 mm × 30 mm (± 2 mm)

Weight

• DE15/DE18 ECG Sampling Box: Approx. 215 g

• DP12 ECG Sampling Box: Approx. 210 g

• DX12 Transmitter: Approx. 113 g (not including battery)

• DX12 Receiver: Approx. 173 g

Power

• PC Operating Voltage: 110V-240V~

• PC Operating Frequency: 50 Hz/60Hz

• DE18/DE15 ECG Sampling Box: DC 5V, Input Power: 1 VA (MAX), 0.5 VA (MIN)

• DP12 ECG Sampling Box: DC 5V, Input Power: 1 VA (MAX), 0.5 VA (MIN)

• DX12 Transmitter: Input Power: 2x1.5V Excell Alkaline AA IEC LR6; Operation Life of Battery: ?12 hours

• DX12 Receiver: DC 5V, Input Power: 350 mW

Environment

• Transport Temperature:

• DP12/DE15/DE18 ECG sampling box: -40°C to +55°C (-40°F to +131°F)

• DX12 ECG sampling box: -20°C to +55°C (-4°F to +131°F)

• Working Temperature: +5°C to +40°C (+41°F to +104°F)

• Transport Relative Humidity: 25% RH to 93% RH (Non-Condensing)

• Working Relative Humidity: 25% RH to 80% RH (Non-Condensing)

• Transport Atmospheric Pressure: 70 kPa to 106 kPa

• Working Atmospheric Pressure: 86 kPa to 106 kPa
