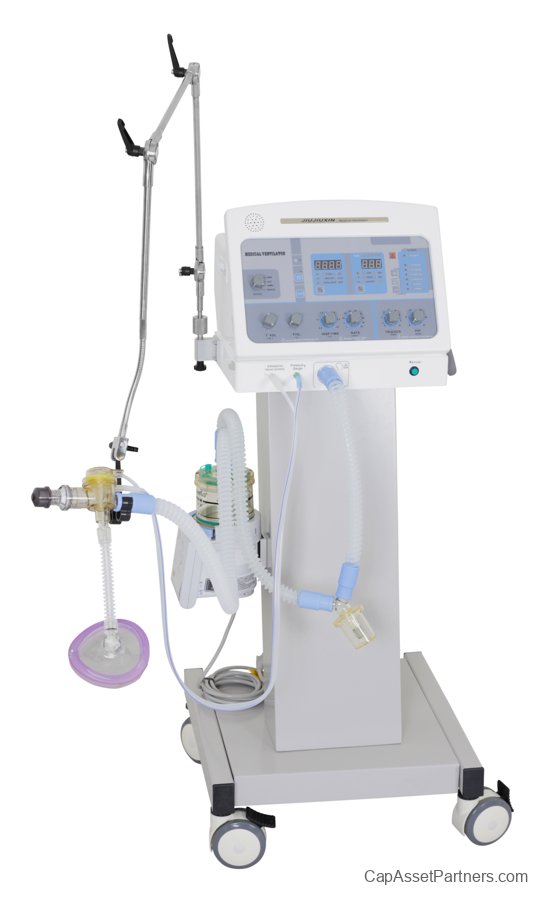

Introducing the Avante Verdana JX ICU Ventilator, a state-of-the-art respiratory solution designed for critical care environments. This versatile ventilator supports multiple breathing modes, making it ideal for use in ICUs, emergency departments, operating rooms, and general hospital settings. With its micro-computer controlled system, the Verdana JX ensures precise and reliable ventilation, while the digital display provides clear visibility of essential parameters, enhancing patient monitoring and care. Elevate your clinical capabilities with the advanced technology of the Verdana JX, designed to meet the demanding needs of healthcare professionals and deliver exceptional respiratory support for patients in critical condition.
Avante Verdana JX ICU Ventilator Specifications
- Type: Multi-mode respiratory ventilator
- Application: ICU, emergency department, operating room
- Oxygen Therapy: High flow delivery
- Ventilation Modes: Advanced synchronized modes suitable for invasive and non-invasive ventilation
- Control System: Microcomputer controlled for constant volume
- Display: Convenient digital display, easy to read
Performance Parameters:
- Tidal Volume Range: 50 - 1500 mL (0.05 - 1.5 L)
- Respiratory Rate Range: 5 - 40 breaths per minute
- Inspiratory Pressure: Up to 60 cm H?O (0 - 6 kPa)
- PEEP (Positive End-Expiratory Pressure): 0 - 20 cm H?O (0 - 2 kPa)
- FiO? (Fraction of Inspired Oxygen): 21% - 100%
- Flow Rate: Up to 60 L/min
Power Supply:
- Voltage: 100 - 240 VAC, 50/60 Hz
Dimensions:
- Weight: Approximately 12 kg (26.5 lbs)
- Size: 30 cm x 40 cm x 50 cm (11.8 in x 15.7 in x 19.7 in)
Accessories:
- Patient interface options (masks, endotracheal tubes)
Safety Features:
- Alarms for apnea, high/low pressure, and low battery
- Built-in self-test upon startup
