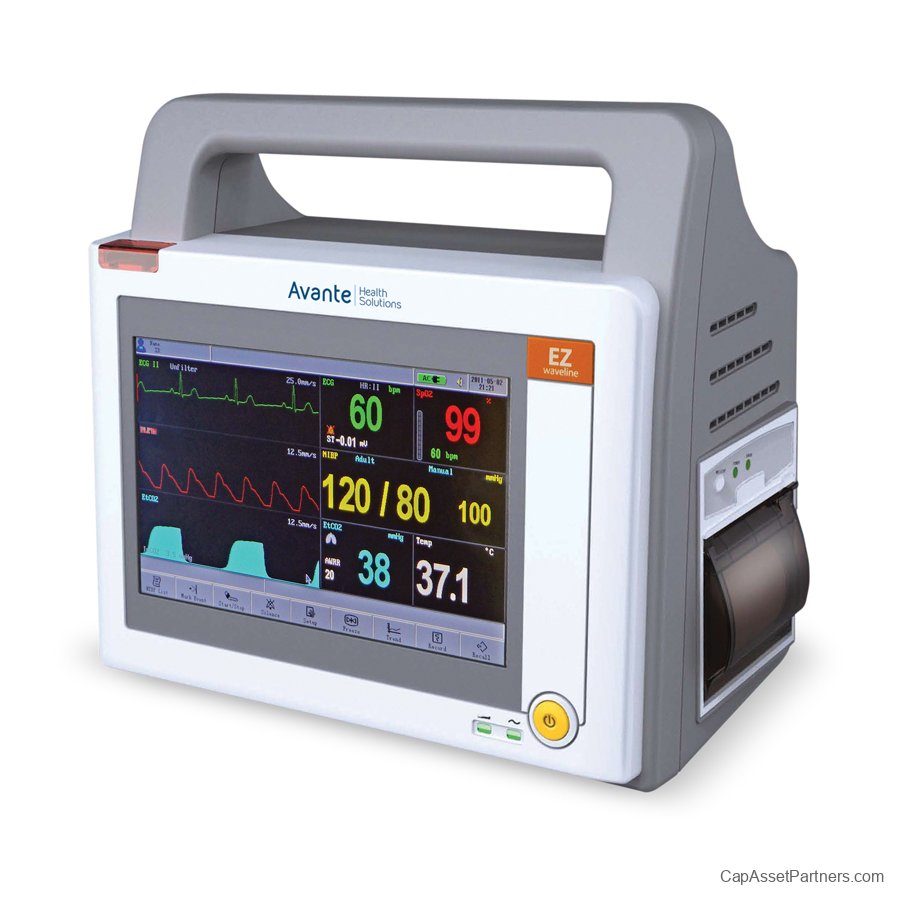

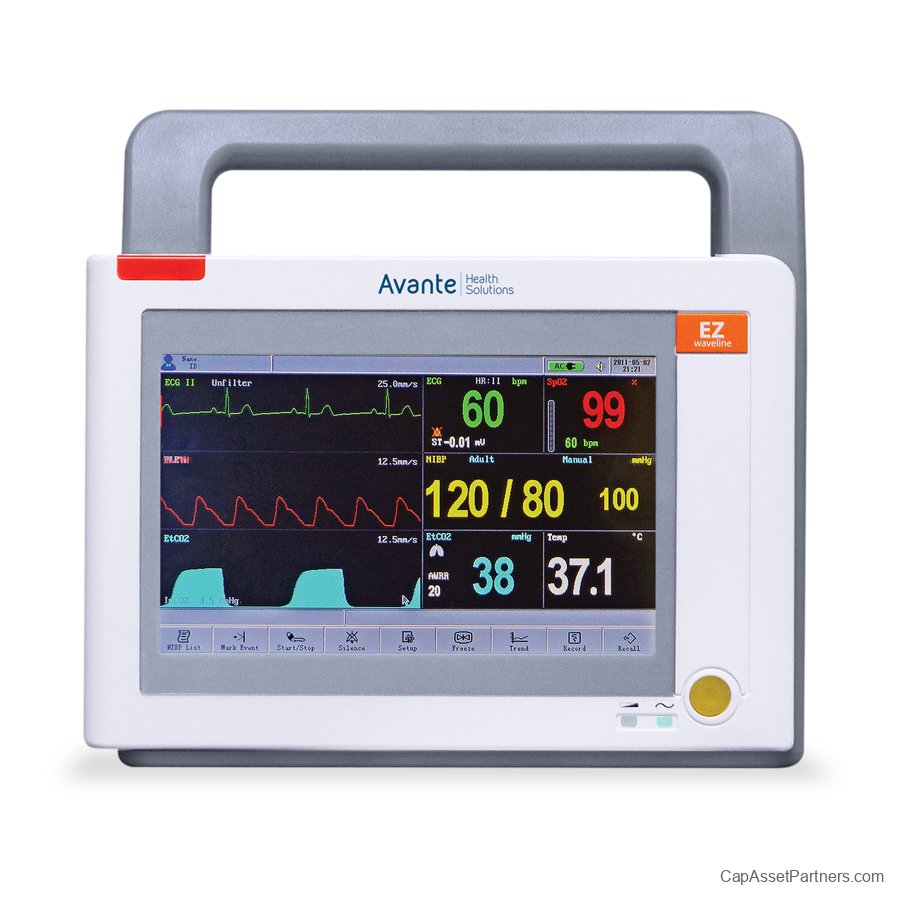

Avante Waveline EZ Portable Patient Monitor with Touch-Screen

Avante Waveline EZ Portable Patient Monitor with Touch-Screen
Elevate your patient monitoring capabilities with the Avante Waveline EZ Portable Patient Monitor, designed for healthcare professionals who prioritize precision and versatility. This feature-rich device seamlessly integrates advanced monitoring technologies while maintaining an extremely portable design, weighing just 6 lbs.
Key Features:

• Comprehensive Monitoring: Easily track ECG, respiration, SpO2, non-invasive blood pressure, and temperature. Optional EtCO2 monitoring enhances your evaluation capabilities, making this monitor a valuable addition to any clinical setting.

• Intuitive Touch-Screen Interface: The high-resolution 8-inch color display offers an intuitive touch-screen experience, enabling quick and accurate assessments for improved patient care.

• Advanced Detection: Benefit from simultaneous multi-lead ECG monitoring, with advanced ST segment and arrhythmia detection to help healthcare providers respond swiftly to patient needs.

• Trendy Visuals: The Waveline EZ features both graphical and tabular trending, allowing you to visualize patient data effectively across five waveforms.

• Customizable Alerts: The monitor includes audible and visual alarms and provides quick recall of BP readings to ensure you never miss critical changes in patient status.

• Battery Backup: Designed for flexibility, the portable monitor offers a reliable battery backup for uninterrupted patient observation during transport.

• User-Friendly Enhancements: Recent upgrades include an improved timestamp display, an adjustable volume for sounds, and the ability to print numerical data only or change waveform colors as needed.

The Avante Waveline EZ Portable Patient Monitor is an essential tool for any clinical environment, combining portability, advanced features, and user-friendly operation into one powerful device. Stay ahead in patient monitoring with this innovative solution!

Avante Waveline EZ Portable Patient Monitor with Touch-Screen Specifications

Physical Dimensions

• Height: ~20.8 cm (8-1/5 inches)

• Width: 22.86 cm (9 inches)

• Depth: 11.9 cm (4-7/10 inches)

Safety Approval & Quality System

• Designed to meet IEC60601-1-1988, EN60601-1-1, EN60601-2

• Class II Equipment, double insulated

• Type BF applied parts

• ISO9001 & EN46001 Certified

Power Requirements

• Power Supply: AC 90-264V / 47-63Hz

• Input Power: ? 55 VA

• Fuses: Two fuse sockets in the rear panel indicated by "FUSE", OI 5X20, 2A/250V

• Battery: 12V / 4.0 AH sealed lead-acid

• Charge time: ? 4 hours

• Operating time: ? 2 hours (full recharge)

• Battery Charging Method: Automatic charging after monitor is connected to AC power supply (with charge protection function)

• Discharge Protection: Monitor will be automatically turned off when battery power is almost used up

ECG

• Input: 3-lead ECG cable and standard AAMI line for connection

• Optional Input: 5-lead ECG cable and standard AAMI line for connection

• Patient Safety Standard: IEC60601-1-1988

• CMRR: ? 60 dB

• Heart Rate Range: 20 ~ 254 bpm ± 1 bpm

• Heart Rate Averaging: 8 second average

• ST Segment Range: -0.8 ~ +0.8 mV

• Interface: AAMI 6-pin

• Lead Selection: I, II, III (3 lead mode); I, II, III, aVR, aVL, aVF, V (5 lead mode with ST and arrhythmia analysis)

• Lead Fault Alarm: Audible, Visual Input (5-lead ECG patient cable)

• QRS Indicator: Audible and Visual Alert

• Waveform Storage: 6 minutes

• Sweep Speed: 12.5 / 25 / 50 mm/sec

• Gain Selection: 4 mV, 2 mV, 1 mV, 0.5 mV, 0.25 mV, Auto

• Trends: 2 hours -> 4 hours -> 8 hours -> 24 hours -> 48 hours

• Patient Isolation: Breakdown voltage 4000 VAC (50 Hz, 60 seconds), Leakage current < 10 ?A

• Frequency Width: Monitoring mode 0.5 ~ 40 Hz (+0.4 dB, -3.0 dB); Surgery mode 0.5 ~ 20 Hz (+0.4 dB, -3.0 dB)

• Patient Drive Current: < 10 ?A

• Enclosure Leakage Current: < 0.1 mA

• Maximum T Wave Rejection Capability: 1.2 mV

• Heart Rate Alarm Response Time: < 7 seconds

• Aspect Ratio: 0.24 ~ 0.6 sec/mV

• Alarm Frequency: Low alarm: 2-2.4 kHz; High alarm: 3-3.4 kHz

• Defibrillator Protection: Tested with 5 kV

• Recovery Time Following Defibrillation: < 5 seconds

Respiration

• Measurement Method: Thoracic Impedance

• Respiration Rate Range: 0 ~ 100 ± 1 rpm

• Accuracy: ± 2 rpm

Masimo SET SpO2

• SpO2 Accuracy (non-motion):

• Adult/Pediatric: 70-100%: ±2%, 0-69%: unspecified

• Neonate: 70-100%: ±3%, 0-69%: unspecified

• SpO2 Accuracy (motion):

• Adult/Pediatric: 70-100%: ±3%, 0-69%: unspecified

• Neonate: 70-100%: ±3%, 0-69%: unspecified

• Low Perfusion Performance: > 0.02% Pulse Amplitude and % Transmission > 5

• SpO2: ±2%

• PR: ±3 bpm

• Modes: Averaging mode: 2, 4, 8, 10, 12, 14, and 16 s; Sensitivity: Normal, APOD, Maximum

• PR Accuracy (non-motion):

• Neonate: 70-100%: ±3%, 0-69%: unspecified

• Adult/Pediatric: 25-240 bpm: ±3 bpm

• PR Accuracy (motion):

• Adult/Pediatric: 25-240 bpm: ±5 bpm

• Measuring Range:

• SpO2: 1-100%

• PR: 25-240 bpm

• Perfusion: 0.02-20%

Non-Invasive Blood Pressure (NIBP)

• Method: Automatic oscillometric

• Parameters: Systolic, diastolic, mean arterial pressure, pulse

• Scale: mmHg or kPa

• Operating Modes: Manual, Automatic, Continuous

• Repeat Cycles: 1, 10, 15, 30, 60, 90, 120 minutes

• Determination:

• Systolic, Adult/Pediatric: 40 ~ 250 mmHg (5.3 ~ 33.3 kPa)

• Systolic, Neonate: 20 ~ 160 mmHg (2.7 ~ 21.3 kPa)

• Diastolic, Adult/Pediatric: 10 ~ 180 mmHg (1.3 ~ 24.0 kPa)

• Diastolic, Neonate: 10 ~ 140 mmHg (1.3 ~ 18.7 kPa)

• Cuff Pressure Range:

• Adult/Pediatric: 0 ~ 300 mmHg (0 ~ 40.0 kPa)

• Neonate: 0 ~ 140 mmHg (0 ~ 18.7 kPa)

• Initial Cuff Inflation:

• Adult/Pediatric: 170±10 mmHg (22.7±1.3 kPa)

• Neonate: 100±10 mmHg (16.0±1.3 kPa)

• Deflation Pressure: 30 mmHg (4.0 kPa) higher than the last systolic pressure

• Cuff Inflation Rate: No greater than 50 mmHg/sec

• Measurement Time:

• Typical: 25 seconds

• Maximum: 40 seconds

• Typical Stat: 20 seconds

• Pressure Display Accuracy: ±3 mmHg

• BP Pulse Rate Accuracy: ±2% @ 40 ~ 240 bpm

• Cuff Sizes Available: Neonate, infant, pediatric, standard adult

Temperature (Dual Channel)

• Range: 0 ~ 50 °C

• Probe: YSI® 400 (Skin surface or rectal/esophageal)

• Scale: Celsius

• Accuracy: ±0.1 °C

• Resolution: 0.1 °C

CO2

• Type: Side stream, non-dispersive IR

• CO2 Range: 0-99 mmHg

• Scale: mmHg/kPa

• Accuracy:

• ±2 mmHg (0-40 mmHg)

• ±5 mmHg (41-76 mmHg)

• ±10 mmHg (77-99 mmHg)

• Calibration: Automatic

• Respiration Range: 0-150 rpm, ± 2 rpm

TFT Color Display

• Size: 20.3 cm (8 inches)

• Matrix: 640 (H) × 480 (V) pixels

Recorder (Optional)

• Type: Built-in 2-channel thermal array recorder

• Print Mode: Text or waveform

• Waveforms: Real-time or alarm-triggered

• Resolution: 400 dpi vertical, 800 dpi horizontal

• Annotations: Time, date, vital sign readings
