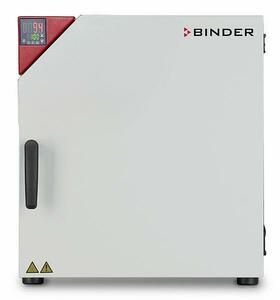

BD-S Series Standard Solid Incubators with Gravity Convection
The BD-S Series Standard Solid Incubators are engineered for critical research and quality assurance applications. Combining advanced features with reliable performance, these incubators ensure optimal environmental conditions for a variety of laboratory processes.
Key Features:
- Temperature Range: Ambient temperature +5°C to 70°C
- Advanced APT.line™ Technology: Preheating chamber technology for uniform temperature distribution
- Gravity Convection: Ensures stable and consistent temperature throughout
- Adjustable Exhaust Air Flap: Customizable air circulation for enhanced efficiency
- Integrated Controller: Timer function for precise control
- Interior Design: Inner door constructed from tempered safety glass for durability and visibility
- Included Shelf: Comes with one chrome-plated rack with shelf supports for versatile storage
- Temperature Safety Device: Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm for added safety
Benefits:
- Designed for easy handling and operation
- Ensures accurate temperature control to support sensitive applications
- Features a simple and ergonomic door opening mechanism for user convenience
Specifications:
| SKU |
Temperature Range |
Temperature Fluctuation |
Temperature Variation |
Warm Up Time |
| 9090-0016 |
70°C +5°C |
± 0.3 at 37°C |
± 0.5 at 37°C |
15 min to 37°C |
| 9090-0017 |
70°C +5°C |
± 0.3 at 37°C |
± 0.5 at 37°C |
15 min to 37°C |
| 9090-0022 |
70°C +5°C |
± 0.3 at 37°C |
± 0.5 at 37°C |
15 min to 37°C |
| 9090-0023 |
70°C +5°C |
± 0.3 at 37°C |
± 0.5 at 37°C |
15 min to 37°C |

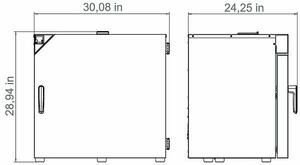

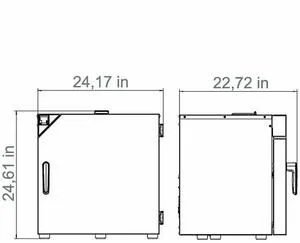

Additional Information:
| SKU |
# of Shelves |
Door Recovery Time |
Depth |
Height |
Width |
Power Requirement |
| 9090-0016 |
1 std./3 max. |
15 min |
22.73 in |
24.63 in |
24.19 in |
230 V, 50/60 Hz |
| 9090-0017 |
1 std./3 max. |
15 min |
22.73 in |
24.63 in |
24.19 in |
120 V, 50/60 Hz |
| 9090-0022 |
1 std./5 max. |
15 min |
24.27 in |
28.96 in |
30.1 in |
230 V, 50/60 Hz |
| 9090-0023 |
1 std./5 max. |
15 min |
24.27 in |
28.96 in |
30.1 in |
120 V, 50/60 Hz |
