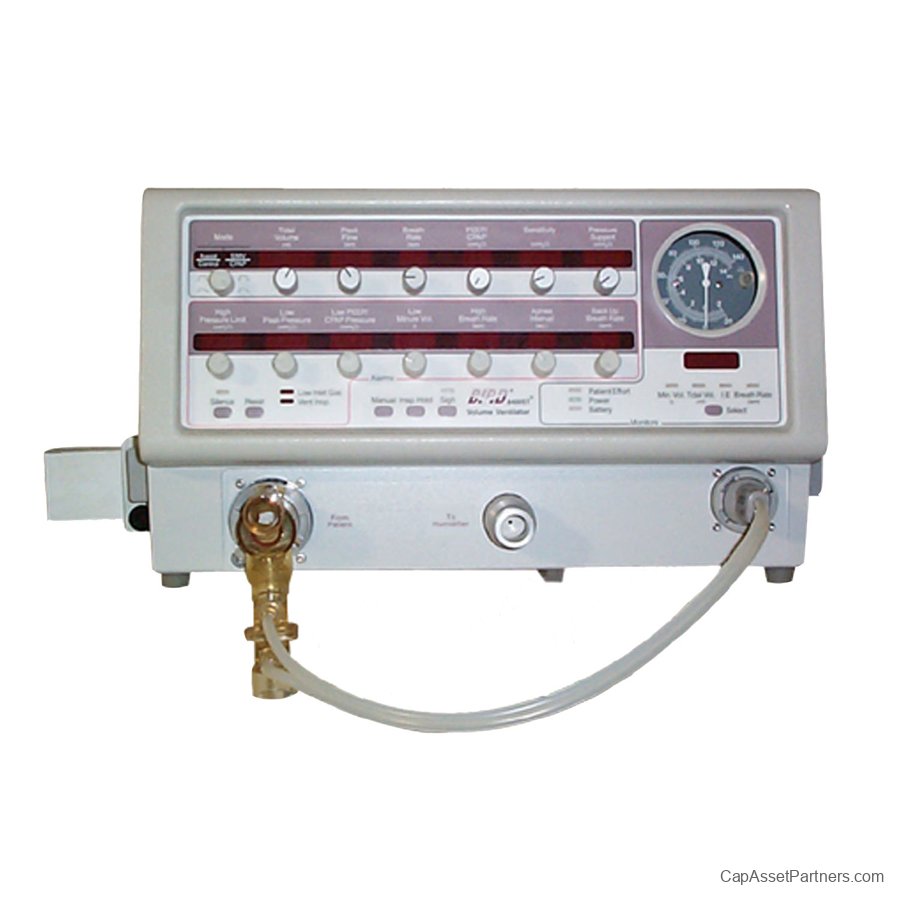

Bird 8400 STI Respiratory Ventilator

Bird 8400 STI Respiratory Ventilator: Precision Ventilation for Adult Care
The Bird 8400 STI Ventilator is a cutting-edge microprocessor-controlled volume ventilator specifically designed for adult patients, featuring advanced pressure-support ventilation capabilities. This versatile device excels in both acute and sub-acute healthcare settings, ensuring optimal respiratory support when it's needed most.
Key Features:

• User-Friendly Interface: Equipped with familiar knob technology, the Bird 8400 STI is designed for ease of operation, allowing healthcare providers to quickly adjust settings as necessary.

• Comprehensive Ventilation Modalities: Offering a full range of ventilator modalities, this device adapts to the diverse needs of patients, providing tailored respiratory support.

• Pressure Control & Flow Support: The ventilator includes advanced pressure control and flow support features, ensuring precise and efficient ventilation.

• Compact and Portable: With dimensions of 9" H × 16" W × 13.5" D and a weight of 32 lbs (14.5 kg), the Bird 8400 STI is both compact and easy to transport, making it ideal for various clinical environments.

Elevate your respiratory care capabilities with the Bird 8400 STI Respiratory Ventilator, engineered for reliability and performance in critical care situations.

Bird 8400 STI Respiratory Ventilator Specifications

General:

• Tidal Volume: 50 to 2000 ml (1.7 to 67.6 fl oz)

• Inspiratory Pressure: 5 to 100 cmH2O (4.9 to 98.1 mmHg)

• Peak Flow: 10 to 120 lpm (0.35 to 4.24 cfm)

• Inspiratory Time: 0.1 to 9.8 sec

• Breath Rate: 0 to 80 bpm

• PEEP/CPAP: 0 to 30 cmH2O (0 to 29.4 mmHg)

• Pressure Triggered: -1 to -20 cmH2O (off)

• Flow Triggered: 1 to 20 lpm (0.035 to 0.706 cfm, off)

• Baseline Flow: 10 lpm (0.35 cfm)

• Pressure Support: 1 to 52 cmH2O (0.98 to 51.1 mmHg, off)

• Manual Breath: × 1

• Inspiratory Pause: 0 to 20 sec

• Inspiratory/Expiratory Hold: × 1 (6 sec max)

• Sigh: On/Off, 1 Sigh/100 breaths

• Sigh Volume: 1.5 × Set Tidal Volume

• Oxygen Percent: 21 to 100% (with blender)

Indicators:

• Patient Effort: Yellow Indicator

• Power: Green Indicator

• Battery Power: Yellow Indicator

Additional Metrics:

• Minute Volume: 0 to 130 L (0 to 34.3 gal)

• Tidal Volume: 0 to 9999 ml (0 to 337.8 fl oz)

• I:E Ratio: 1:99 thru 4:1

• Total Breath Rate: 0 to 255 bpm

• Airway Pressure Manometer: -20 to 140 cmH2O (off)

• Hourmeter: 0 to 99,999 hours

• High Pressure Limit: 1 to 140 cmH2O (0.98 to 137.9 mmHg)

• Sigh Pressure Limit: 1.5 × Set

• Low Peak Pressure: 2 to 140 cmH2O (off)

• Low PEEP/CPAP: -20 to +30 cmH2O (off)

• Low Minute Volume: 0 to 99.9 L (0 to 26.4 gal)

• High Breath Rate: 3 to 150 bpm

• Apnea Interval: 10 to 60 sec

• Back Up Breath Rate: 0 to 80 bpm
