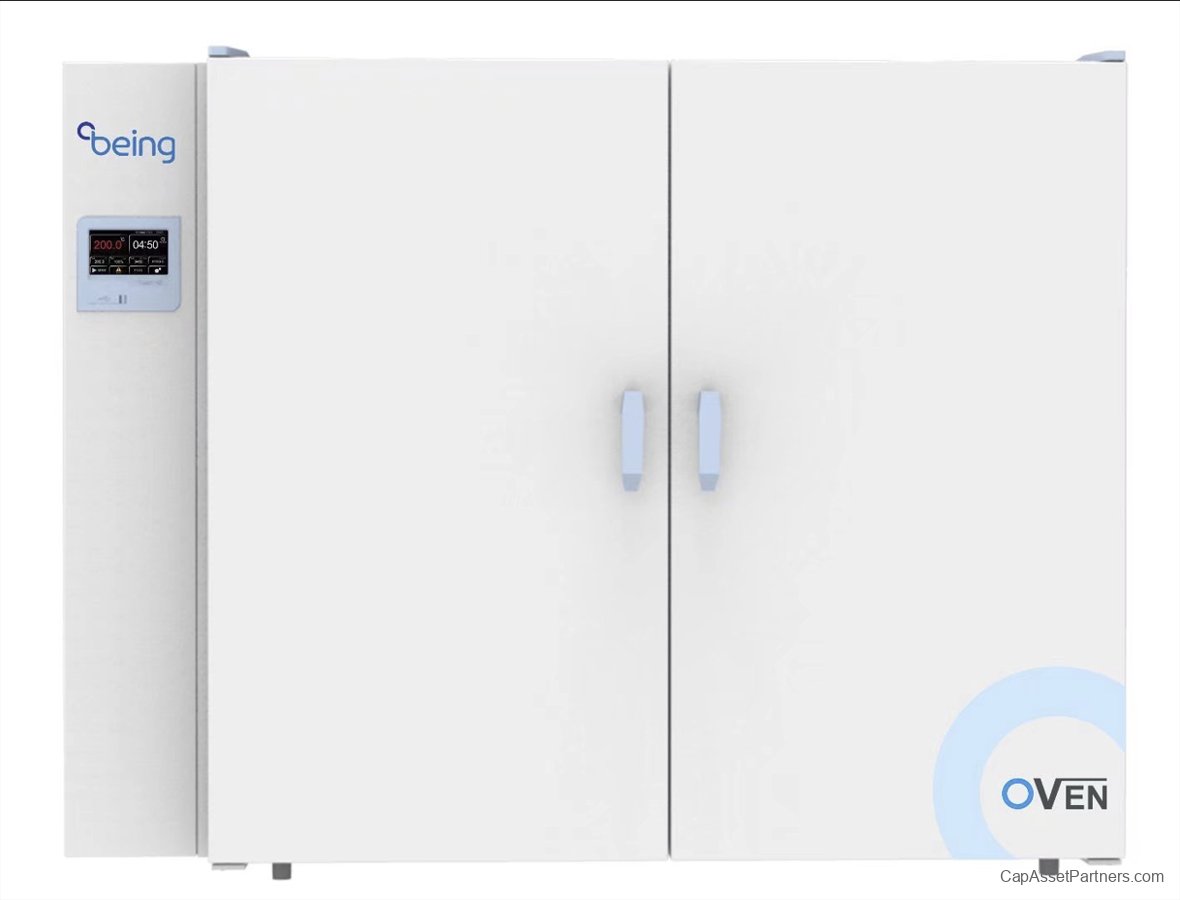

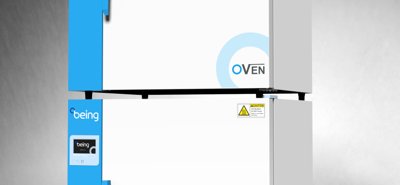

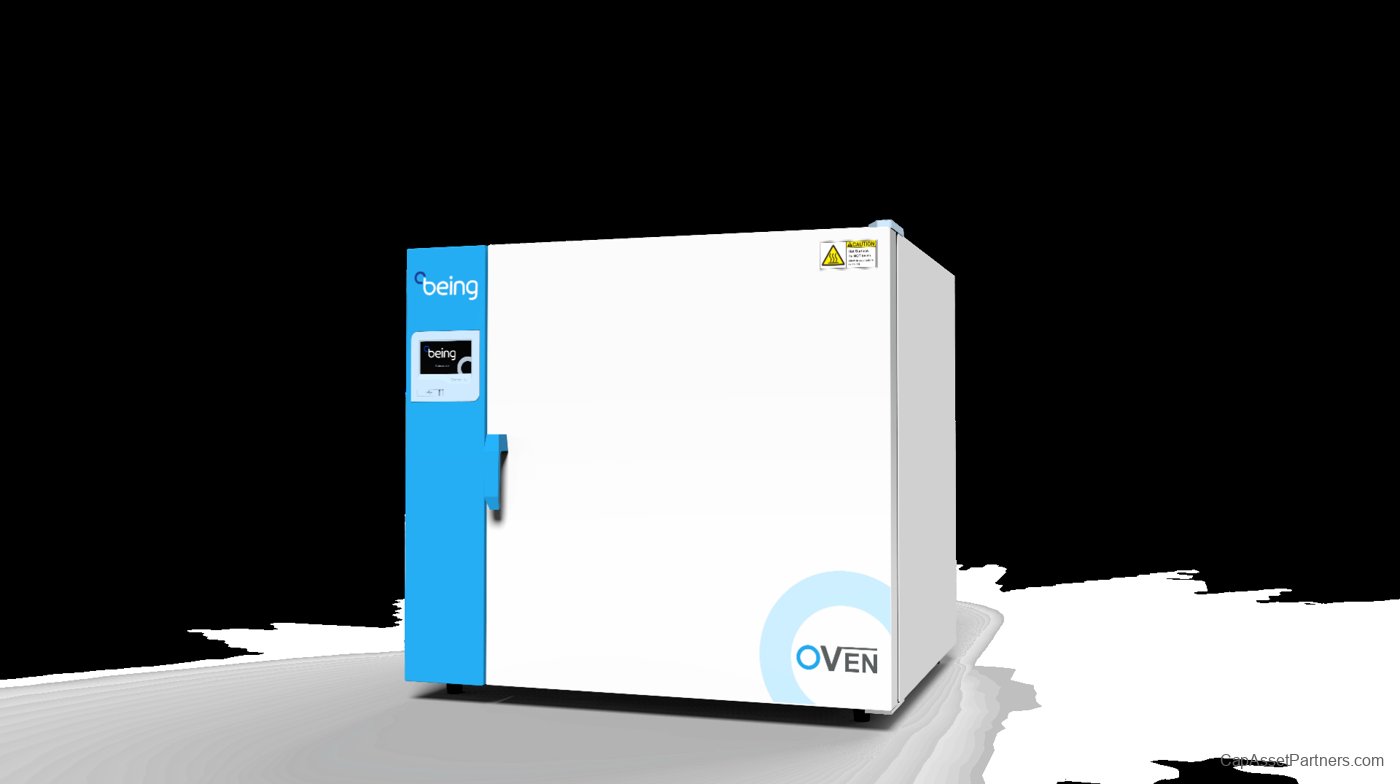

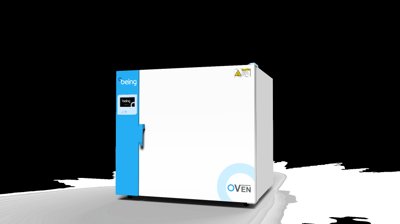

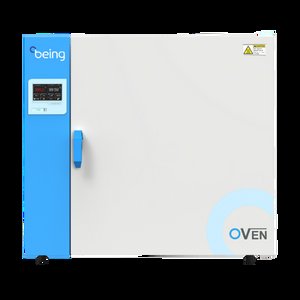

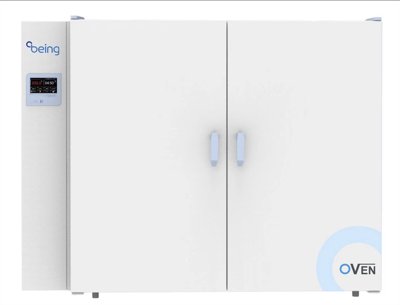

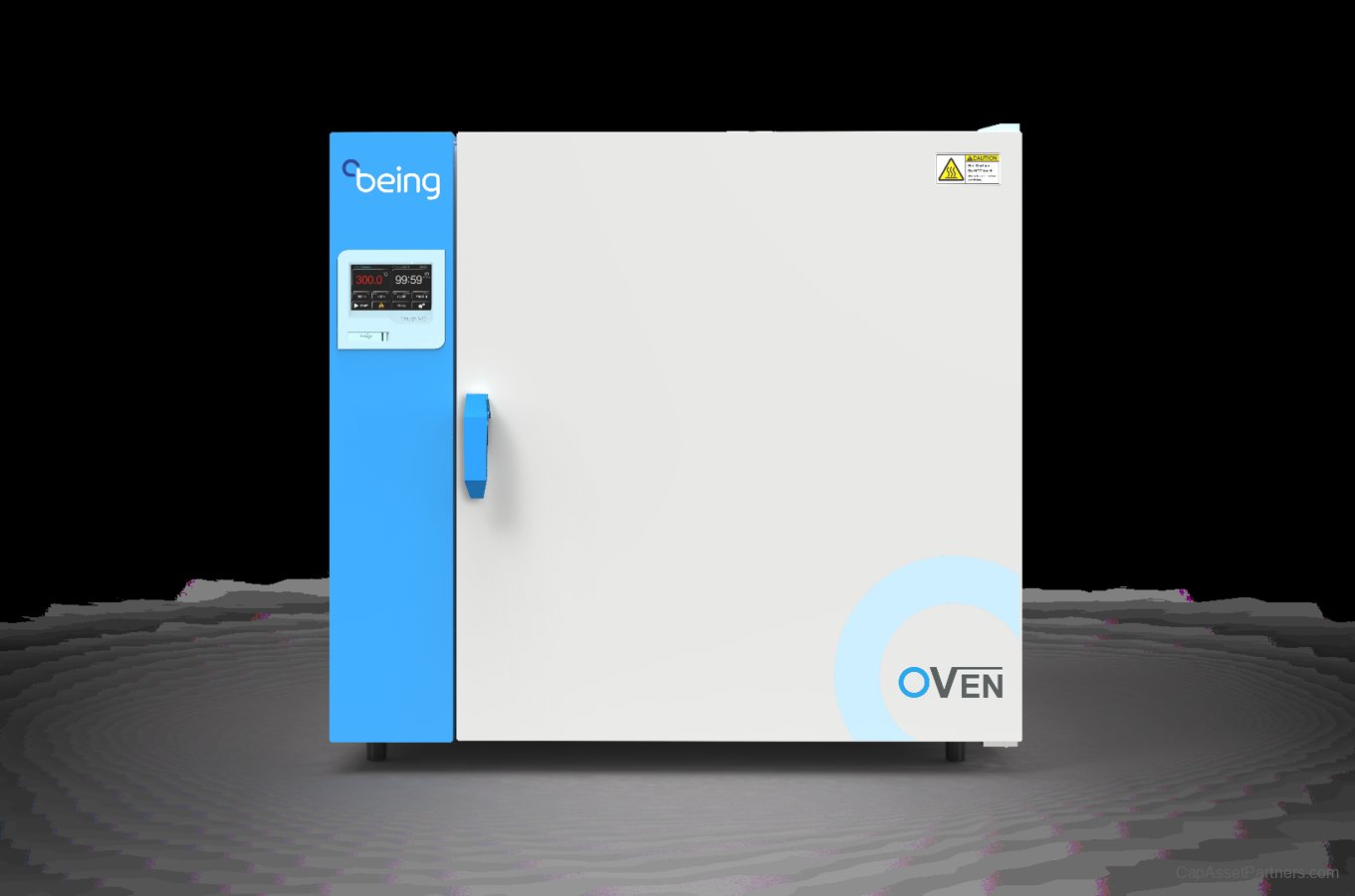

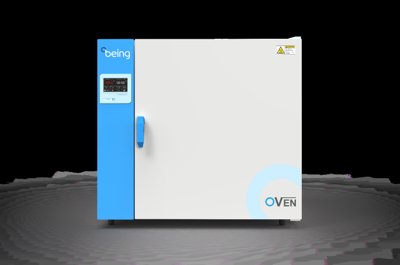

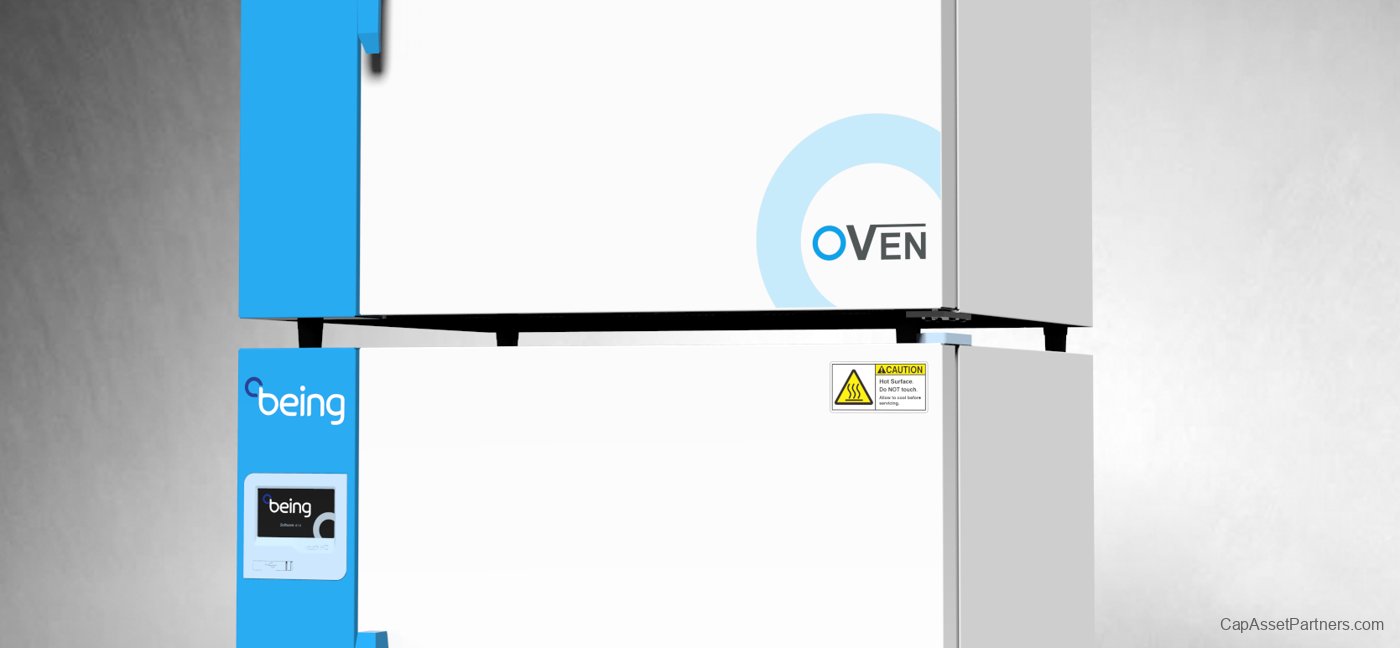

BOFT Series Forced-Air Mechanical Ovens | 30-400L
The BOFT Forced-Air Convection Drying Oven Series is engineered for optimal thermal performance, featuring an integrated fan that ensures uniform heat distribution throughout the chamber. This reliability is essential for rigorous drying protocols demanding precise temperature control.
Key Features:
- Temperature Range: Ambient +10°C to 300°C
- P.I.D Temperature Controller: Offers precise and dependable temperature regulation
- Mechanical Convection: Enhances hot air circulation for consistent results
- Adjustable Exhaust Port/Vent: Tailors air flow based on specific needs
- Durable Silicone Rubber Gasket: Ensures airtight sealing and is easy to replace when necessary
- Color Touchscreen Controller: User-friendly interface for swift operation
Convenience Features:
- Available in a variety of volumes from 30L to 400L, catering to diverse laboratory requirements
- Inner chamber constructed from corrosion-resistant mirror stainless steel for enhanced durability
- Curved inner angles facilitate effortless cleaning
- Anti-skid shelf design allows for easy single-hand operation
Safety Features:
- Auto Start function resumes operation after power loss or restoration
- Alarm for temperature deviation alerts user to potential issues
- Configurable over-temperature set points with automatic shutdown and alert system
- Independent over-temperature limit controller for additional safety assurance
- Over-current alarm with automatic shutdown feature enhances reliability
Specifications:
| SKU |
Temperature Stability |
Temperature Uniformity |
Power Requirement |
Wattage |
Display Resolution |
Time to Reach Temperature |
| BO212030U |
±0.5 |
±1.5 at 100°C |
110V, 1300W |
Consumption: 1320W |
0.1 |
30 min (to 100°C) |
| BO212050U |
±0.5 |
±2.5 at 100°C |
110V, 1800W |
Consumption: 1800W |
0.1 |
30 min (to 100°C) |
| BO212120U |
±0.5 |
±3.0 at 100°C |
110V, 2050W |
Consumption: 2050W |
0.1 |
40 min (to 100°C) |
| BO212400C |
±0.5 |
±3.5 at 100°C |
220V, 3200W |
Consumption: 3200W |
0.1 |
40 min (to 100°C) |
Additional Specifications:
| SKU |
Internal Dimensions |
External Dimensions |
Shelf Capacity |
Timer Range |
# of Shelves |
| BO212030U |
12.6 x 12.6 x 11.6 in |
20.5 x 21.6 x 21.3 in |
Max: 20 Kg |
1 - 5999 mins |
2 / 5 Max. |
| BO212050U |
15.8 x 16.3 x 12.2 in |
27.1 x 25.2 x 25.6 in |
Max: 20 Kg |
1 - 5999 mins |
2 / 9 Max. |
| BO212120U |
20.5 x 20.9 x 17.3 in |
30.9 x 30.1 x 29.7 in |
Max: 20 Kg |
1 - 5999 mins |
3 / 12 Max. |
| BO212400C |
39.3 x 31.4 x 19.6 in |
50.6 x 29.6 x 41.7 in |
Max: 20 Kg |
1 - 5999 mins |
3 / 16 Max. |
