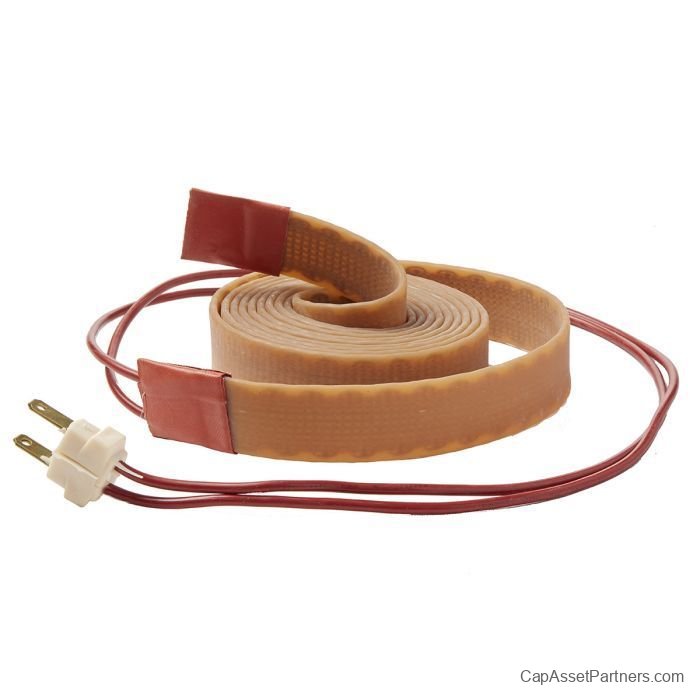

BS0 Silicone Rubber Heating Tapes

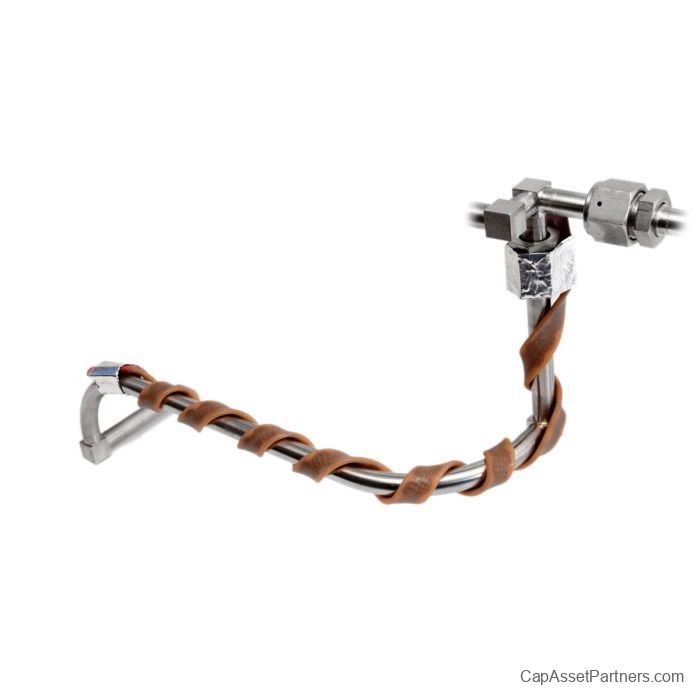

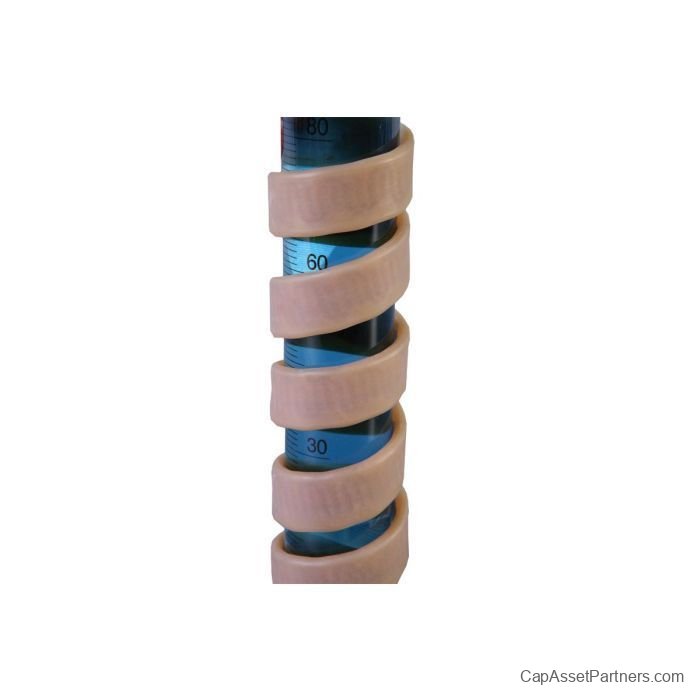

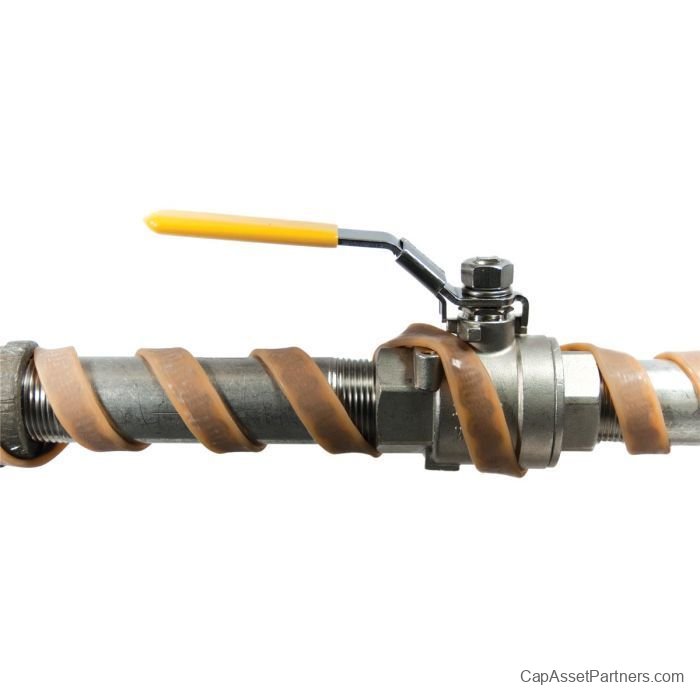

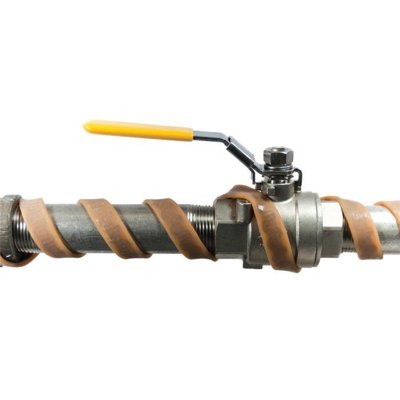

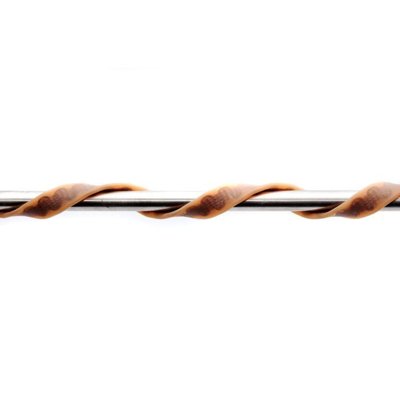

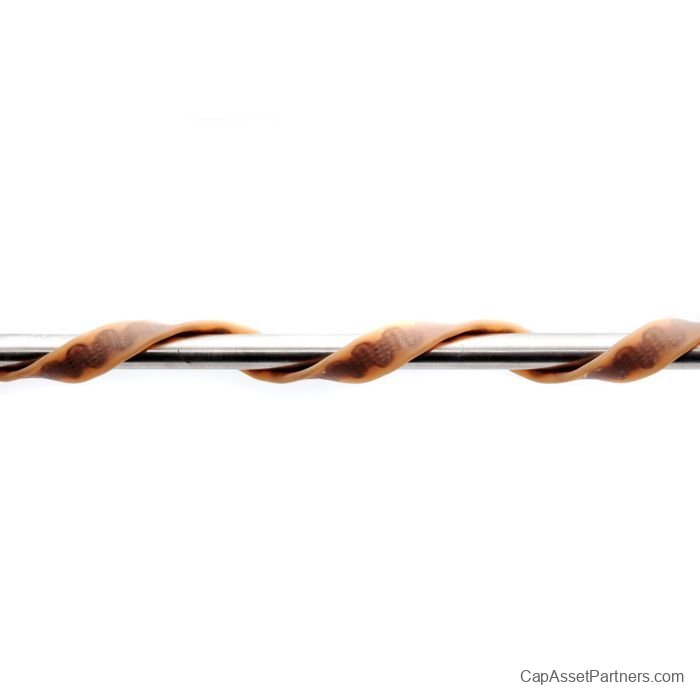

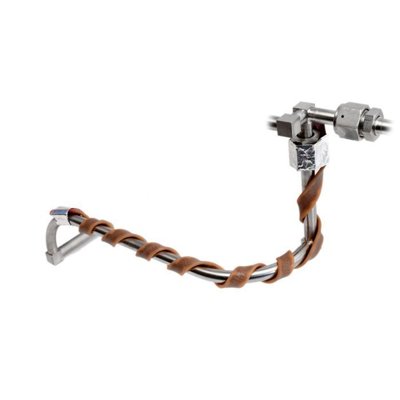

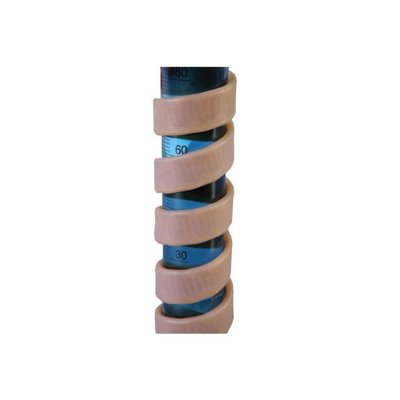

Experience efficient heating solutions with the BS0 Silicone Rubber Heating Tapes. Designed for superior flexibility and durability, these heating tapes are engineered to perform exceptionally on both flat and curved surfaces. Ideal for a variety of applications requiring rapid and direct heating, they can reach temperatures up to 450°F (232°C).
Key Features:
- Available with power leads at the same end or opposite ends for versatile installation.
- Constructed with silicone rubber for flexibility and resilience.
- Moisture, chemical, and radiation resistant, making them suitable for diverse environments.
- Compatible with electrically conductive metal surfaces for optimal performance.
- Rapid thermal response ensures precise heat application when needed.
- IP Rating: IP66, ensuring protection against water and dust.
- Power Density: 4.3 watts/in2 (0.7 watts/cm2).
- Unit Thickness: 0.125 in (3.175 mm), with a minimum bend radius of 0.25 in (6 mm).
- Available voltages: 120 or 240 VAC.
- Temperature controller is required for safe operation.
Specifications:
| SKU |
Max Temperature |
Power Density |
Thickness |
| BS0051020L |
450°F (232°C) |
4.3 W/in2 (0.7 W/cm2) |
0.125 in (3.175 mm) |
| BS0051040L |
450°F (232°C) |
4.3 W/in2 (0.7 W/cm2) |
0.125 in (3.175 mm) |
| BS0051060L |
450°F (232°C) |
4.3 W/in2 (0.7 W/cm2) |
0.125 in (3.175 mm) |
| BS0051080L |
450°F (232°C) |
4.3 W/in2 (0.7 W/cm2) |
0.125 in (3.175 mm) |
| BS0202200L |
450°F (232°C) |
4.3 W/in2 (0.7 W/cm2) |
0.125 in (3.175 mm) |
Material Composition:
The BS0 Heating Tapes utilize an outer sheath of high-quality silicone rubber and an inner construction of fiberglass knitted and braided materials, ensuring both thermal efficiency and mechanical strength for years of reliable service.
Usage Instructions:
Ensure the installation of an appropriate temperature controller to maintain safe operating conditions and optimize the heating effectiveness of the silicone rubber heating tapes.
