Burdick EKG 10

Burdick EKG 10

• Advanced 12-Lead EKG Solution

Introducing the Burdick EKG 10, a cutting-edge 12-lead EKG machine designed for seamless and efficient cardiac monitoring. This single-channel device boasts automatic operation, allowing for quick and easy patient assessments. With its advanced artifact reduction feature, the Burdick EKG 10 ensures accurate and reliable readings, even in challenging conditions.
Equipped with a thermal dot array printer, this EKG provides clear and detailed printouts of the results, making it ideal for both clinical and diagnostic settings. The user-friendly soft touch membrane touch pad simplifies operation, while the patient identification number and acquisition parameters enhance workflow efficiency.

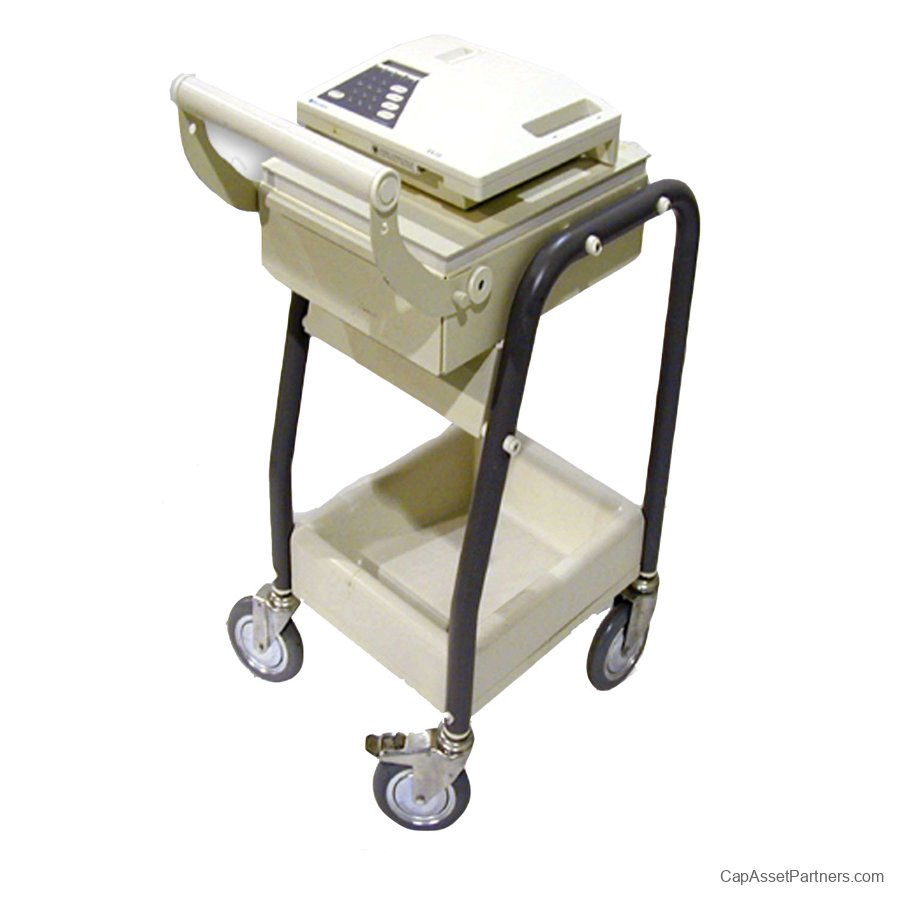

For those looking for added convenience, a cart or stand is available as an optional accessory, making the Burdick EKG 10 an excellent choice for any medical facility focused on delivering high-quality cardiac care. Experience the reliability and precision of the Burdick EKG 10 in your practice today.

Burdick EKG 10 Specifications

• Type: Electrocardiograph

• Number of Channels: 3 or 6 channels

• Paper Speed: 25 mm/sec (1 inch/sec)

• Recording Width: 210 mm (8.27 inches)

• Input Voltage: 100-240 VAC, 50/60 Hz

• ECG Lead Configuration: Standard ECG 12-lead configuration

• Amplification: 1,000 to 10,000 times

• Printout Resolution: 5 mm (0.20 inches) per mV

• Dimensions:

• Height: 12.6 cm (4.96 inches)

• Width: 38.1 cm (15 inches)

• Depth: 30.5 cm (12 inches)

• Weight: Approx. 7.2 kg (15.87 lbs)

• Input Impedance: ? 5 M?

• Frequency Response: 0.05 to 150 Hz

• Operating Environment:

• Temperature: 10°C to 40°C (50°F to 104°F)

• Humidity: 30% to 75% non-condensing

• Internal Battery (optional): Rechargeable, provides backup for approximately 2 hours

• Storage Capacity: Up to 100 ECG records

• Output Interface: RS-232 or USB for data transfer

Note: Specifications may vary slightly depending on the model version and accessories installed.
