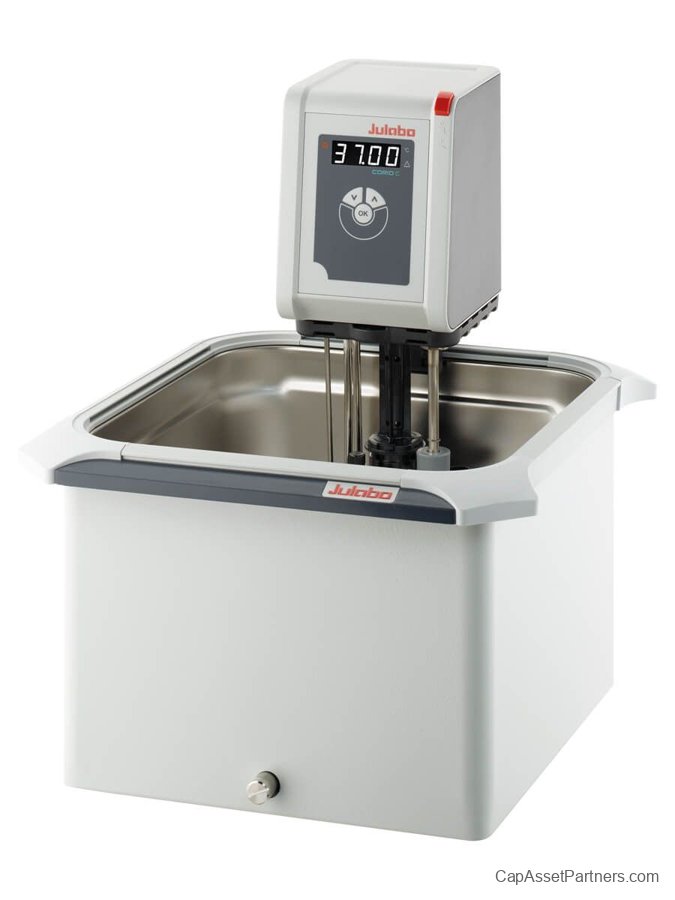

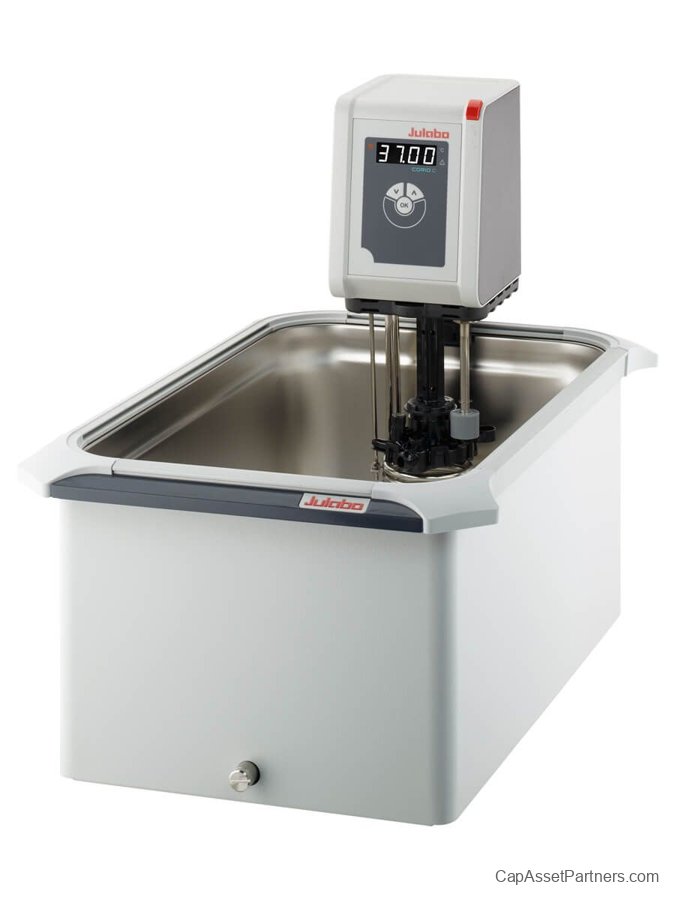

C-B Series Open Heating Bath Circulators
The C-B Series Open Heating Bath Circulators are designed with precision engineering and high-quality materials, featuring stainless steel bath tanks that enhance durability and performance. These circulators are ideal for a variety of internal applications, ensuring consistent temperature control and reliability in laboratory settings.
Key Features
- Models tailored for internal applications
- Bright, white display for easy reading
- Operates very quietly for minimal disruption
- Integrated drain screw (except model B5) for hassle-free maintenance
Specifications
| SKU |
Temperature Range |
Temperature Stability |
Filling Volume |
Heating Capacity |
Flow Rate |
Flow Pressure |
Water Bath Dimensions |
Voltage |
Heaters |
| 9011405.22 |
20°C to 100°C (68°F to 212°F) |
+/- 0.03 °C |
3.5 to 5 L |
1kW |
6 L/Min |
1.45 psi |
5.9 x 5.9 / 5.9 in |
100-115V/50-60Hz |
1kW @ 115V (2kW @ 230V) |
| 9011405.33 |
20°C to 100°C (68°F to 212°F) |
+/- 0.03 °C |
3.5 to 5 L |
2kW |
6 L/Min |
1.45 psi |
5.9 x 5.9 / 5.9 in |
230V/50-60Hz |
1kW @ 115V (2kW @ 230V) |
| 9011413.22 |
20°C to 100°C (68°F to 212°F) |
+/- 0.03 °C |
9 to 13 L |
1kW |
6 L/Min |
1.45 psi |
11.8 x 7 / 5.9 in |
100-115V/50-60Hz |
1kW @ 115V (2kW @ 230V) |
| 9011413.33 |
20°C to 100°C (68°F to 212°F) |
+/- 0.03 °C |
9 to 13 L |
2kW |
6 L/Min |
1.45 psi |
11.8 x 7 / 5.9 in |
230V/50-60Hz |
1kW @ 115V (2kW @ 230V) |
| 9011417.22 |
20°C to 100°C (68°F to 212°F) |
+/- 0.03 °C |
13 to 17 L |
1kW |
6 L/Min |
1.45 psi |
11.8 x 7 / 7.8 in |
100-115V/50-60Hz |
1kW @ 115V (2kW @ 230V) |
| 9011417.33 |
20°C to 100°C (68°F to 212°F) |
+/- 0.03 °C |
13 to 17 L |
2kW |
6 L/Min |
1.45 psi |
11.8 x 7 / 7.8 in |
230V/50-60Hz |
1kW @ 115V (2kW @ 230V) |
| 9011419.22 |
20°C to 100°C (68°F to 212°F) |
+/- 0.03 °C |
14 to 19 L |
1kW |
6 L/Min |
1.45 psi |
11.8 x 13.7 / 5.8 in |
100-115V/50-60Hz |
1kW @ 115V (2kW @ 230V) |
| 9011419.33 |
20°C to 100°C (68°F to 212°F) |
+/- 0.03 °C |
14 to 19 L |
2kW |
6 L/Min |
1.45 psi |
11.8 x 13.7 / 5.9 in |
230V/50-60Hz |
1kW @ 115V (2kW @ 230V) |
| 9011427.22 |
20°C to 100°C (68°F to 212°F) |
+/- 0.03 °C |
17 to 27 L |
1kW |
6 L/Min |
1.45 psi |
11.8 x 13.7 / 7.7 in |
100-115V/50-60Hz |
1kW @ 115V (2kW @ 230V) |
Additional Information
| SKU |
Shipping Weight |
Shipping Dimensions |
Controller |
Resolution |
Temperature Display |
Dimensions |
| 9011405.22 |
48 lb |
20 x 20 x 20 in |
PID temperature control |
0.1 °C |
LED |
9.1 x 15 x 16.0 in |
| 9011405.33 |
48 lb |
20 x 20 x 20 in |
PID temperature control |
0.1 °C |
LED |
9.1 x 15 x 16.0 in |
| 9011413.22 |
106 lb |
26 x 26 x 26 in |
PID temperature control |
0.1 °C |
LED |
15 x 15 x 15 in |
| 9011413.33 |
106 lb |
26 x 26 x 26 in |
PID temperature control |
0.1 °C |
LED |
15 x 15 x 15 in |
| 9011417.22 |
106 lb |
26 x 26 x 26 in |
PID temperature control |
0.1 °C |
LED |
15 x 15 x 15 in |
| 9011417.33 |
106 lb |
26 x 26 x 26 in |
PID temperature control |
0.1 °C |
LED |
15 x 15 x 15 in |
| 9011419.22 |
106 lb |
26 x 26 x 26 in |
PID temperature control |
0.1 °C |
LED |
15 x 15 x 15 in |
| 9011419.33 |
106 lb |
26 x 26 x 26 in |
PID temperature control |
0.1 °C |
LED |
15 x 15 x 15 in |
| 9011427.22 |
106 lb |
26 x 26 x 26 in |
PID temperature control |
0.1 °C |
LED |
15 x 15 x 15 in |
