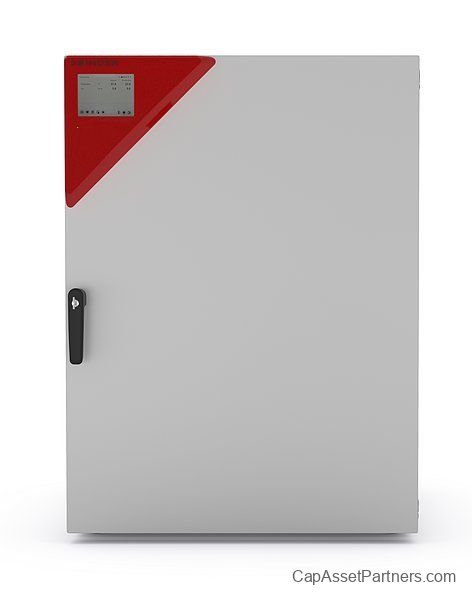

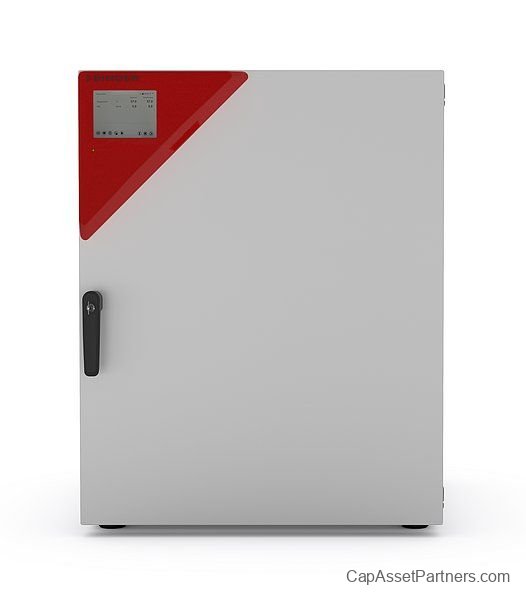

CBF Series CO₂ Incubators with Humidity Regulation
The CBF Series CO2 Incubators are engineered to provide a safe and reliable environment for cell culture applications, featuring sophisticated hot air sterilization and humidity regulation for optimal performance. These incubators ensure maximum protection and consistent conditions, making them an ideal choice for advanced laboratory settings.
Key Features

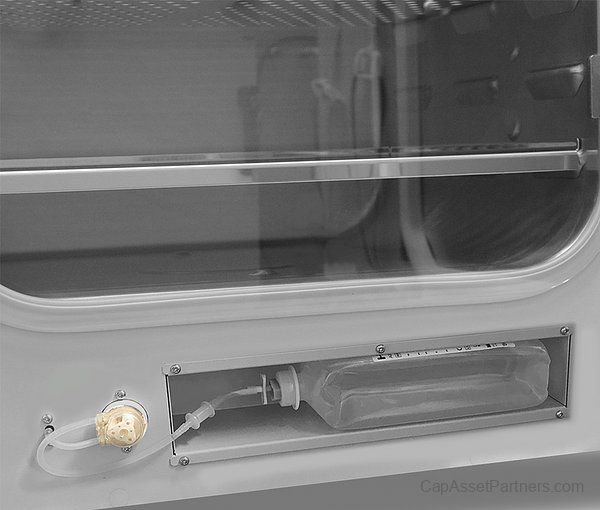

- Contamination-safe humidification system eliminating the need for a water pan
- Proven anti-contamination concept with 180°C hot air sterilization
- Hot-air sterilizable CO2 sensor utilizing single-beam infrared technology

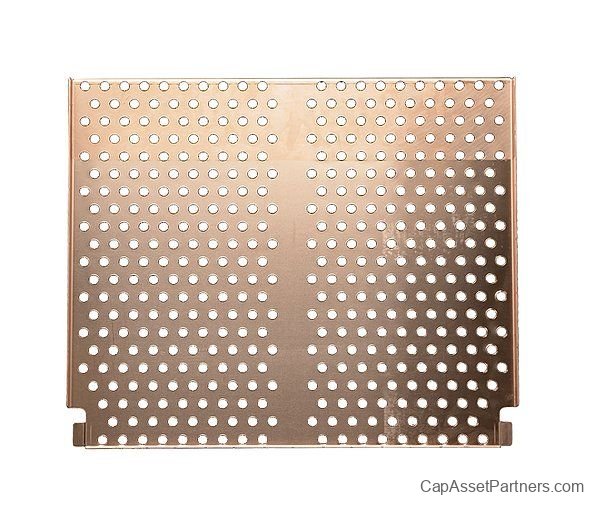

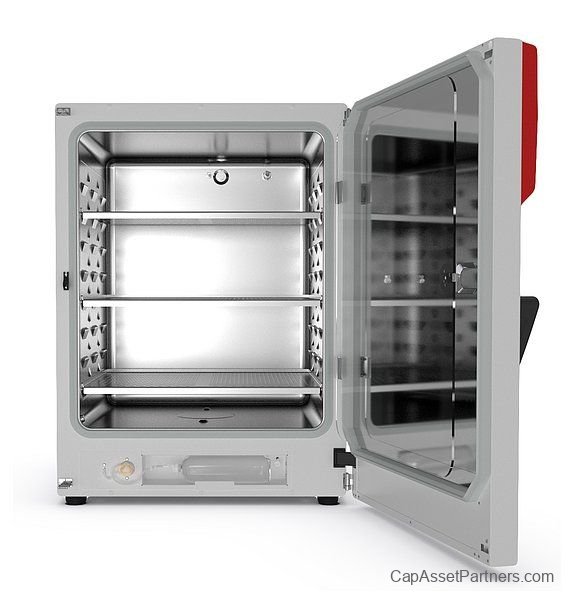

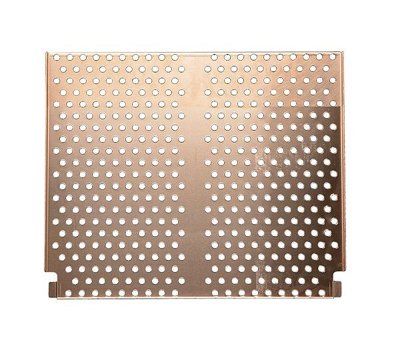

- Seamless stainless steel inner chamber with flanges for stable shelf support
- Fanless design benefiting from Venturi CO2 gas mixing nozzle
- User-friendly intuitive touchscreen controller
- Integrated data logger with open format USB access for easy data retrieval
- Robust troubleshooting system with both visual and acoustic alarms
- Multiple interfaces including Ethernet, USB, and zero-voltage alarm contact

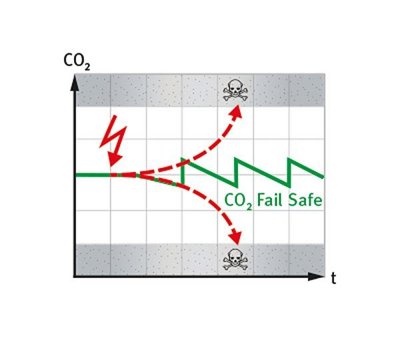

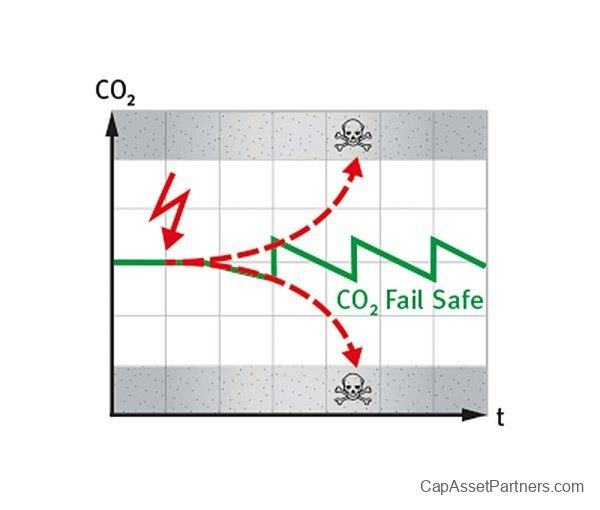

- Fail-safe CO2 system designed to protect the pH levels of cell cultures
Benefits
- Safe: Offers superior protection against contamination, critical for cell viability.
- Reliable: Maintains constant conditions for optimal cell cultivation.
- Smart: Facilitates routine cleaning and seamless operation, enhancing user experience.
- Economical: Designed for efficient operation without the need for consumables, reducing overall laboratory costs.
Specifications
| SKU |
Temperature Range |
Temperature Fluctuation |
Temperature Variation |
Humidity Range |
CO₂ Range |
| 9640-0019 |
60°C ± 6°C |
± 0.1 at 37°C |
± 0.4 at 37°C |
50 - 95 % RH |
0 - 20 % CO₂ |
| 9640-0020 |
60°C ± 6°C |
± 0.1 at 37°C |
± 0.4 at 37°C |
50 - 95 % RH |
0 - 20 % CO₂ |
| 9640-0017 |
60°C ± 6°C |
± 0.1 at 37°C |
± 0.4 at 37°C |
50 - 95 % RH |
0 - 20 % CO₂ |
| 9640-0023 |
60°C ± 6°C |
± 0.1 at 37°C |
± 0.4 at 37°C |
50 - 95 % RH |
0 - 20 % CO₂ |
| 9640-0024 |
60°C ± 6°C |
± 0.1 at 37°C |
± 0.4 at 37°C |
50 - 95 % RH |
0 - 20 % CO₂ |
Additional Information
| SKU |
# of Shelves |
Door Recovery Time |
Depth |
Height |
Width |
Power Requirement |
| 9640-0019 |
3 std./6 max. |
6 min |
28.17 in |
34.28 in |
26.79 in |
100 - 120 V, 50/60 Hz, 16 A |
| 9640-0020 |
3 std./6 max. |
6 min |
28.17 in |
34.28 in |
26.79 in |
100 - 120 V, 50/60 Hz, 16 A |
| 9640-0017 |
3 std./6 max. |
6 min |
28.17 in |
34.28 in |
26.79 in |
200 - 230 V, 50/60 Hz, 10 A |
| 9640-0023 |
3 std./8 max. |
6 min |
30.93 in |
40.2 in |
29.16 in |
100 - 120 V, 50/60 Hz, 16 A |
| 9640-0024 |
3 std./8 max. |
6 min |
30.93 in |
40.2 in |
29.16 in |
100 - 120 V, 50/60 Hz, 16 A |
