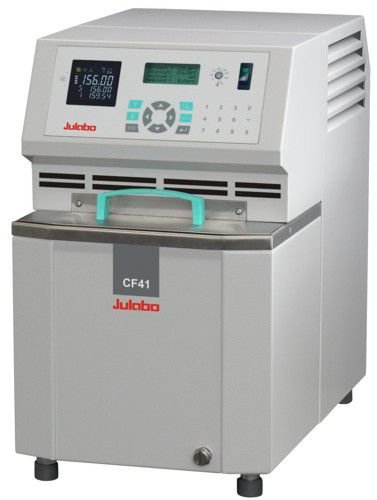

CF-Series Refrigerated/Heating Circulators
Introducing the CF-Series Refrigerated/Heating Circulators, a high-performance solution designed for laboratory applications where precise temperature control is essential. These compact units are tailored for space-constrained environments, allowing seamless integration even on the smallest surfaces or within complex setups.
Key Features
- Ergonomically designed for easy operation
- Compact size provides a low footprint
- Splash-proof keypad for safe use
- Large, bright LED temperature display for easy readability
- Precise PID temperature control technology
- RS232 interface for seamless PC connectivity
- Adjustable high-temperature cut-off for added safety
- Classification 3 according to DIN12876-1
- Features pump connections suited for external temperature applications
- Bath opening for immediate temperature control of small objects in the bath
- Convenient front drain for easy maintenance
Specifications
| SKU |
Temperature Range |
Temperature Stability |
Filling Volume |
Heating Capacity |
Flow Rate |
Flow Pressure |
Water Bath Dimensions |
Voltage |
Heaters |
Cooling Capacity |
| 9400330.13 |
-30 to +150°C |
± 0.03 °C |
3.5 L |
2 kW |
15 L/Min |
5.1 psi |
6.3 x 1.2 / 5.5 in |
230V/60Hz |
1 kW @ 115V (2 kW @ 230V) |
320 W |
| 9400330.2 |
-30 to +150°C |
± 0.03 °C |
3.5 L |
1 kW |
15 L/Min |
5.1 psi |
6.3 x 1.2 / 5.5 in |
115V/60Hz |
1 kW @ 115V (2 kW @ 230V) |
320 W |
| 9400331.13 |
-30 to +200°C |
± 0.02 °C |
3.5 L |
2 kW |
22 to 26 L/Min |
5.8 to 10.2 psi |
6.3 x 1.2 / 5.5 in |
230V/60Hz |
1 kW @ 115V (2 kW @ 230V) |
320 W |
| 9400331.2 |
-30 to +200°C |
± 0.02 °C |
3.5 L |
1 kW |
22 to 26 L/Min |
5.8 to 10.2 psi |
6.3 x 1.2 / 5.5 in |
115V/60Hz |
1 kW @ 115V (2 kW @ 230V) |
320 W |
| 9400340.13 |
-40 to +150°C |
± 0.03 °C |
5.5 L |
2 kW |
15 L/Min |
5.1 psi |
7.5 x 1.2 / 7.5 in |
230V/60Hz |
1 kW @ 115V (2 kW @ 230V) |
470 W |
| 9400340.2 |
-40 to +150°C |
± 0.03 °C |
5.5 L |
1 kW |
15 L/Min |
5.1 psi |
7.5 x 1.2 / 7.5 in |
115V/60Hz |
1 kW @ 115V (2 kW @ 230V) |
470 W |
| 9400341.13 |
-40 to +200°C |
± 0.02 °C |
5.5 L |
2 kW |
22 to 26 L/Min |
5.8 to 10.2 psi |
7.5 x 1.2 / 7.5 in |
230V/60Hz |
1 kW @ 115V (2 kW @ 230V) |
470 W |
| 9400341.2 |
-40 to +200°C |
± 0.02 °C |
5.5 L |
1 kW |
22 to 26 L/Min |
5.8 to 10.2 psi |
7.5 x 1.2 / 7.5 in |
115V/60Hz |
1 kW @ 115V (2 kW @ 230V) |
470 W |
Additional Information
| SKU |
Shipping Weight |
Shipping Dimensions |
Controller Type |
Temperature Resolution |
Temperature Display |
Dimensions |
| 9400330.13 |
124 lb |
32 x 24 x 42 in |
PID temperature control |
0.1 °C |
LED |
9.4 |
| 9400330.2 |
124 lb |
32 x 24 x 42 in |
PID temperature control |
0.1 °C |
LED |
9.4 |
| 9400331.13 |
127 lb |
33 x 24 x 42 in |
ICC intelligent cascade control, TCF temperature control features, Absolute 3-point calibration |
0.1 °C |
VFD, LCD |
9.4 |
| 9400331.2 |
127 lb |
33 x 24 x 42 in |
ICC intelligent cascade control, TCF temperature control features, Absolute 3-point calibration |
0.1 °C |
VFD, LCD |
9.4 |
| 9400340.13 |
124 lb |
32 x 24 x 42 in |
PID temperature control |
0.1 °C |
LED |
11 |
| 9400340.2 |
124 lb |
32 x 24 x 42 in |
PID temperature control |
0.1 °C |
LED |
11 |
| 9400341.13 |
127 lb |
33 x 24 x 42 in |
ICC intelligent cascade control, TCF temperature control features, Absolute 3-point calibration |
0.1 °C |
VFD, LCD |
11 |
| 9400341.2 |
127 lb |
34 x 24 x 42 in |
ICC intelligent cascade control, TCF temperature control features, Absolute 3-point calibration |
0.1 °C |
VFD, LCD |
11 |
