Conmed Beamer Mate - Endoscopic Electrosurgical System

Conmed Beamer Mate - Endoscopic Electrosurgical System

Introducing the Conmed Beamer Mate, an innovative Argon-based electrosurgical unit meticulously designed for endoscopic surgery. This advanced system enhances the efficiency and effectiveness of various procedures, streamlining the surgical experience with its modular design. The centerpiece of the Beamer System is the Conmed Beamer Mate CE200 electrosurgical generator, which allows for a range of components to be utilized individually or in conjunction, catering to specific surgical needs.

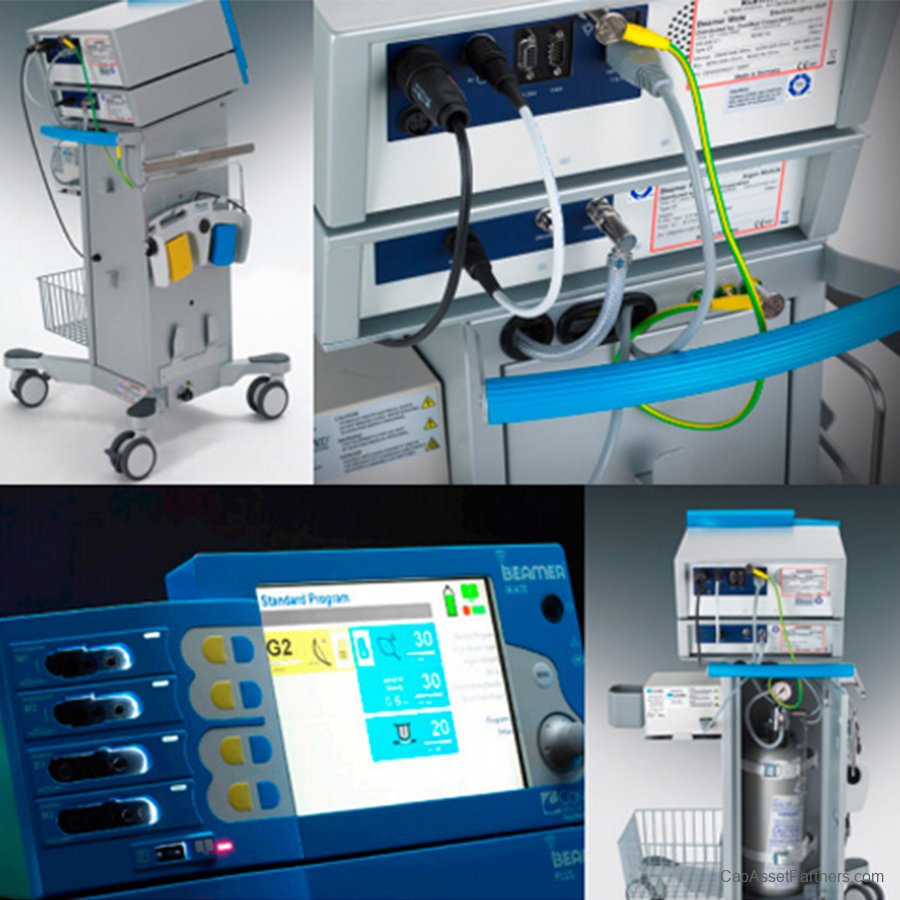

Key Components of the Beamer System CE600:

• Beamer Mate CE200 Electrosurgical Unit

• Beamer Plus CB200

• Beamer Cart CC200

• Beamer Irrigating Pump System CETEGP-100

The Beamer CE200 is engineered exclusively for endoscopic applications, providing an array of therapies from a singular platform. Its seamless integration of advanced technology coupled with user-friendly controls empowers healthcare professionals, regardless of their expertise, to achieve remarkable clinical outcomes. The intelligent design allows surgeons to quickly select desired effects, ensuring consistent and repeatable results.

Advanced Features:

Automatic Cutting Effect Regulation (ACE)
The Beamer Mate CE200 incorporates cutting-edge Automatic Cutting Effect (ACE) regulation, which continuously monitors the active electrode's spark formation. This innovation ensures effective and controlled cutting by dynamically adjusting voltage, spark, and power across all automatic modes, thereby eliminating the variability often faced in endoscopic electrosurgery.

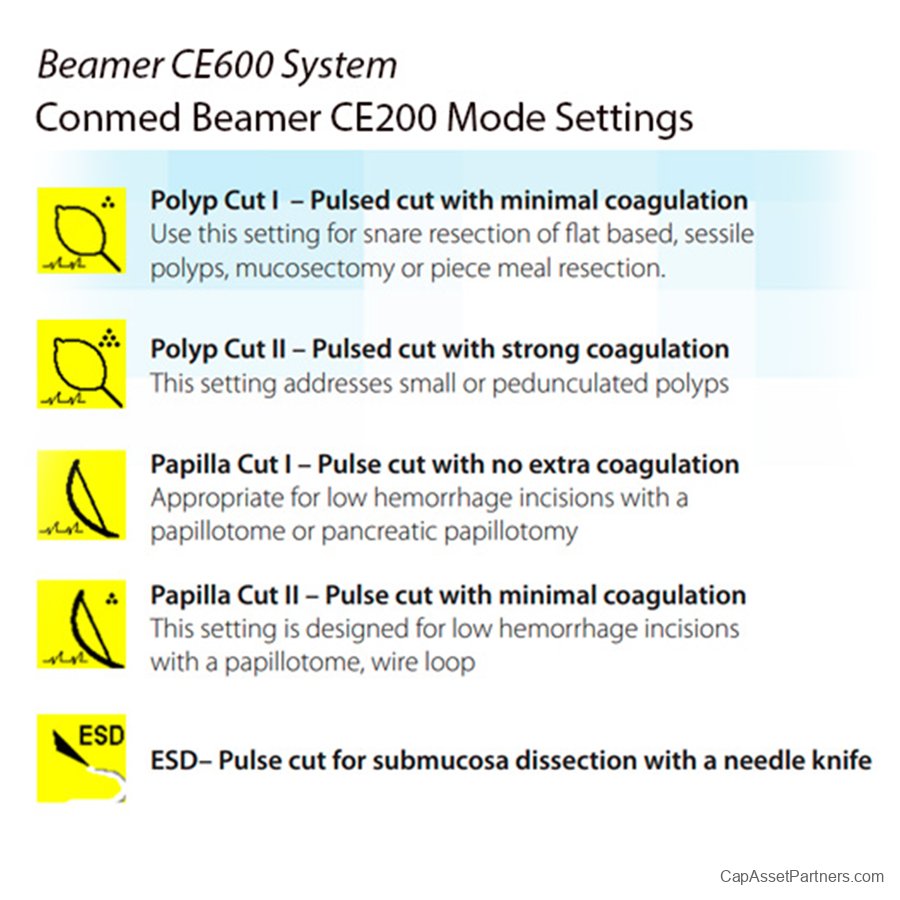

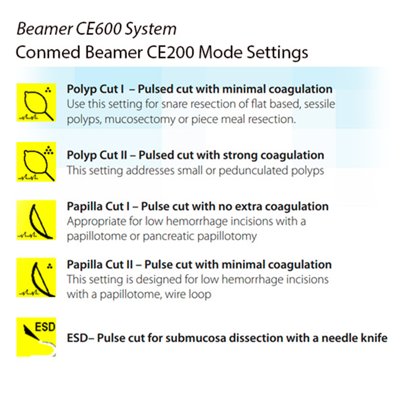

Endo-Mode Dynamic Cutting Mode
With the Endo-Mode feature, surgeons benefit from a dynamic cutting process that balances cutting and coagulation to suit various treatments. This mode offers pulsed or fractionated currents, allowing finer control over coagulation levels.
The system supports multiple procedures, including:

• Polypectomy

• Hot Biopsy

• Sphincterotomy

• BiCap® Hemostasis

Argon Beam Coagulation
The Conmed Beamer Mate excels in delivering exceptional hemostatic performance, offering vital benefits such as:

• Significant reduction in blood loss

• Decreased surgical time

• Minimization of electrosurgical plume

• Lower tissue carbonization and thermal penetration

Transform your endoscopic procedures with the reliable and sophisticated Conmed Beamer Mate

• Endoscopic Electrosurgical System, where cutting-edge technology meets unparalleled performance in surgical care.

# Conmed Beamer Mate

• Endoscopic Electrosurgical System Specifications

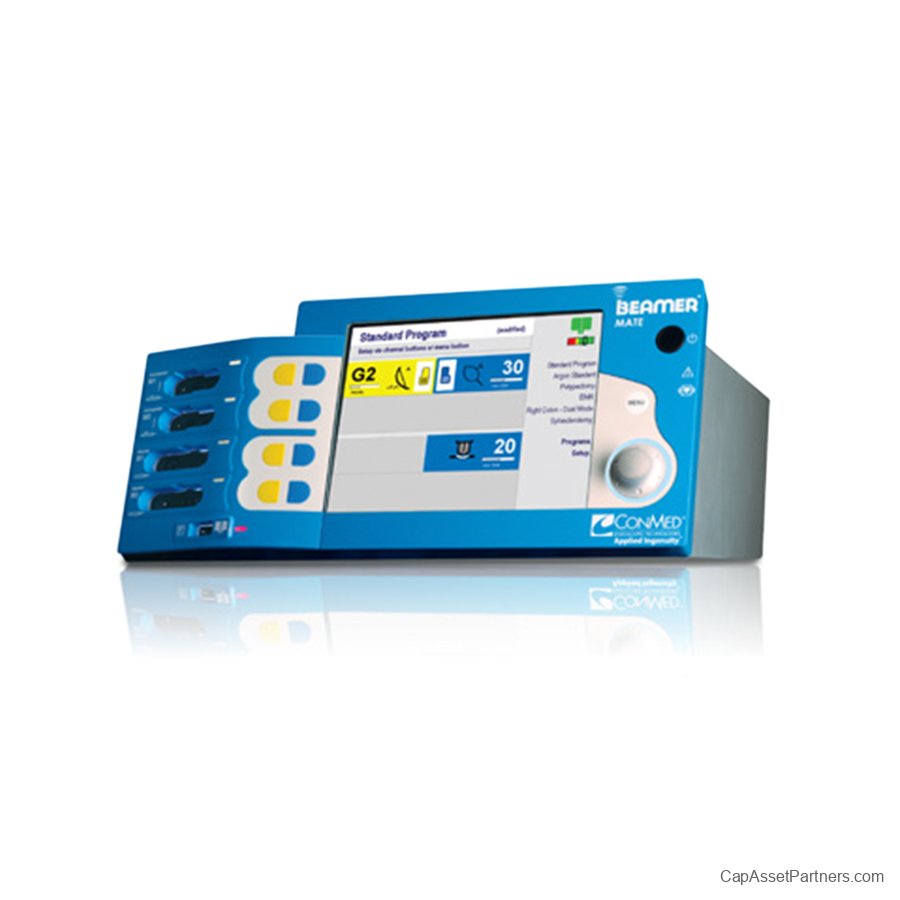

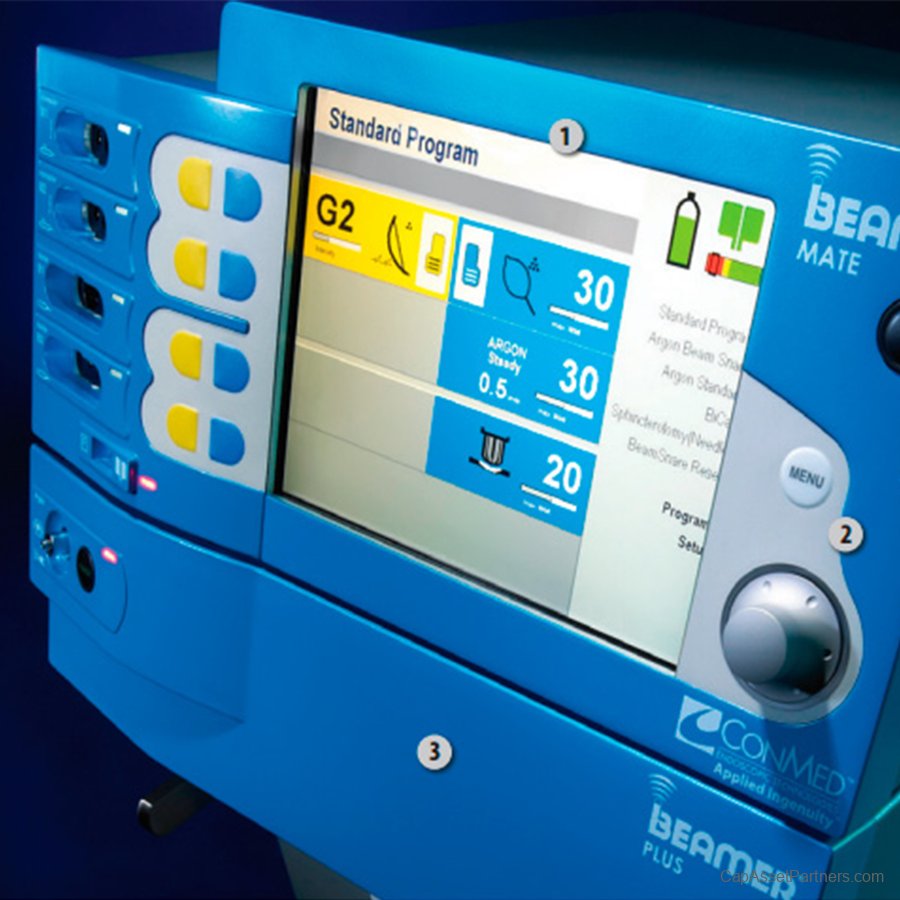

Beamer CE200 ESU

Mains Connection:

• Power Requirements: 100–240 V ± 10%

• Mains Current: max. 6.3 A

• Mains Fuse: 6.3 A

• Nominal Frequencies: (mains) 50 / 60 Hz

• Power Input:

• Standby Mode: 40 VA

• Max. Power Input: 600 VA

Output Data:

• Cutting Power (Pulse): Max. 350 watts

• Coagulation Power: Max. 120 watts

• HF Frequencies: 350 – 850 kHz

Weight and Dimensions:

• Weight: 8.3 kg (18.3 lbs)

• Dimensions (W x H x D): 390 mm x 182 mm x 435 mm (15.4 in x 7.2 in x 17.1 in)

Standards:

• Classification: according to MDD: IIb

• Type of Applied Part: CF; defibrillation-proof

• Approval/Mark of Conformity: CE 0297, in compliance with 93/42/EEC

• LF Leakage Currents: Complying with IEC 601, Part 1 (testing in connection with Beamer System)

• Duty Type: INT 10 s/30 s (= duty factor of 25%)

---

Beamer Plus CB200

General:

• Power Supply: Via Beamer Mate unit

• Max. Power Input: 40 watts

• Argon Gas Flow: 0.1 to 8.0 L/min ± 20%

Physical Dimensions:

• Weight: 3.5 kg (7.7 lbs)

• Dimensions (W x H x D): 390 mm x 108 mm x 425 mm (15.4 in x 4.3 in x 16.7 in)

---

Beamer Cart CC200

Physical Dimensions:

• Weight: 12 kg (26.5 lbs)

• Dimensions (H x L x W): 862 mm x 582 mm x 658 mm (34.0 in x 22.9 in x 25.9 in)

---

Beamer Irrigating Pump System CETEGP-100

Electrical:

• Voltage/Current Requirement: 120 V / 240 V ~ 50-60 Hz 30 VA

Pump:

• Biopsy Channel Flow Rate: 0 - 200 ml/min

• Auxiliary Water Channel Flow Rate: 0 - 500 ml/min

Physical Dimensions:

• Dimensions (H x W x D): 152 mm x 178 mm x 203 mm (6.0 in x 7.0 in x 8.0 in)

• Weight: 2.27 kg (5.0 lbs)
