Corometrics 118 Fetal Monitor

Do you have a Corometrics 118 Fetal Monitor you want to sell?

We buy used equipment! Learn about selling

Manufactured by: GE

Category: Monitors - Fetal

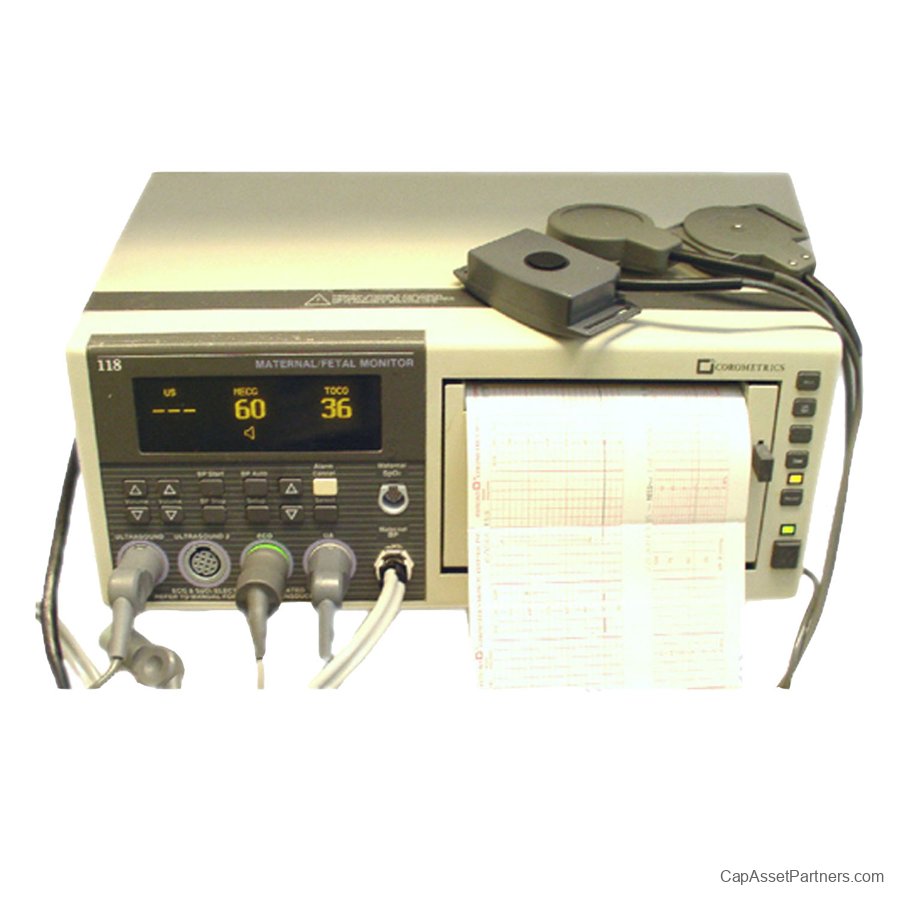

GE Corometrics 118 Fetal Monitor
Product Description: Corometrics 118 Fetal Monitor
The Corometrics 118 Fetal Monitor is an advanced fetal monitoring solution designed for obstetric applications. This versatile unit supports twin pregnancies and is equipped with essential features, including one tocotransducer and two ultrasound transducers for comprehensive monitoring. It also includes fetal EKG capabilities, an event marker, and a built-in chart recorder to facilitate thorough documentation of labor and delivery.
Leveraging advanced technology from the Model 116, the Corometrics 118 enhances maternal care with integrated maternal pulse oximetry and non-invasive blood pressure (NIBP) monitoring. This enables healthcare providers to track vital maternal parameters in real-time, ensuring optimal care during critical moments of labor.
Key Features:
  • User-Friendly Design: Enjoy easy operation with intuitive controls and menus specifically designed for labor and delivery, providing a seamless user experience.
  • Simplified Functionality: All functions of the monitor are designed for straightforward operation, enabling healthcare providers to focus on patient care.
  • Visual and Audible Alarms: The unit features visual and audible alarms for maternal SpO2, NIBP, and pulse rate, alerting caregivers when parameters exceed user-defined limits.
  • Alarm Customization: Audible alarms can be disabled, and individual audio/visual alerts can be temporarily canceled, allowing for flexibility in a busy clinical environment.

The Corometrics 118 Fetal Monitor empowers healthcare professionals with the tools they need to ensure the health and safety of both mother and baby during labor and delivery. With its innovative features and reliable performance, this monitor is an essential addition to any maternity unit.
Corometrics 118 Fetal Monitor Specifications

Physical Weight & Dimensions
  • Height: 7 inches (17.8 cm)
  • Width: 16.5 inches (41.9 cm)
  • Depth: 17 inches (43.2 cm)
  • Weight: Approx. 34 lbs (15.5 kg)

Power Requirements
  • Voltage: 100/120/220/240 VAC selectable
  • Frequency: 50/60 Hz
  • Power consumption: 100 Watts (max)

Direct ECG
  • Technique: Peak detecting beat-to-beat cardiotachometer
  • Heart rate counting range: 30-240 BPM
  • Heart rate resolution: ±1 BPM
  • Artifact elimination: Switch selectable ±25 BPM artifact rejection
  • Input signal range differential: 15 µV to 2 mV peak-to-peak (fetal), 100 µV to 2 mV peak-to-peak (maternal)
  • Common mode: 20 VDC (max)
  • Preamplifier bandwidth: 1.0 Hz to 100 Hz
  • Common mode rejection: >120 dB balance; with patient cable: >110 dB 5k RA or LA unbalance
  • Input equivalent noise: <10 µV peak-to-peak
  • Input impedance: Differential mode >10 M?, common mode >20 M?
  • Main frequency rejection: >40 dB
  • Leakage current: <10 µA at 120 VAC
  • Isolation mains to patient connection: >2kV
  • Leg plate tester: Simulated R-wave at 120 ±1 BPM

Ultrasound
  • Technique: Pulsed Doppler with autocorrelation processing
  • Pulse repetition frequency: 4 kHz in single ultrasound mode, 2 kHz in dual ultrasound mode
  • Pulse duration: 92 µs
  • Center frequency: 1.151 MHz
  • Intensity: <10 mW/cm²
  • Heart rate counting range: 50-210 BPM
  • Leakage current: <10 µA at 120 VAC

Pressure
  • Range: 0-100 mmHg
  • Tocotransducer: 0-100 relative units (0-120 grams)
  • Excitation voltage: +4.0 VDC
  • Resolution: 1 mmHg
  • Bandwidth: Tocotransducer DC to 0.5 Hz, strain gauge DC to 3 Hz
  • Zero temperature drift: <0.1 mmHg/°C (electronics only)
  • Leakage current: <10 µA at 120 VAC (transducer isolated)

Recorder
  • Uterine activity: Chart width: 4 cm, scaling: 25 mmHg/cm (3.33 kPa/cm), range: 0-100 mmHg, resolution: 1 mmHg
  • Chart drive: Speeds: 1, 2 and 3 cm/min; accuracy: ±1%
  • Heart rate scale:
  • Domestic: Chart width 7 cm, scaling 30 BPM/cm, range 30-240 BPM, resolution 1 BPM
  • International: Chart width 8 cm, scaling 20 BPM/cm, range 50-210 BPM, resolution 1 BPM
