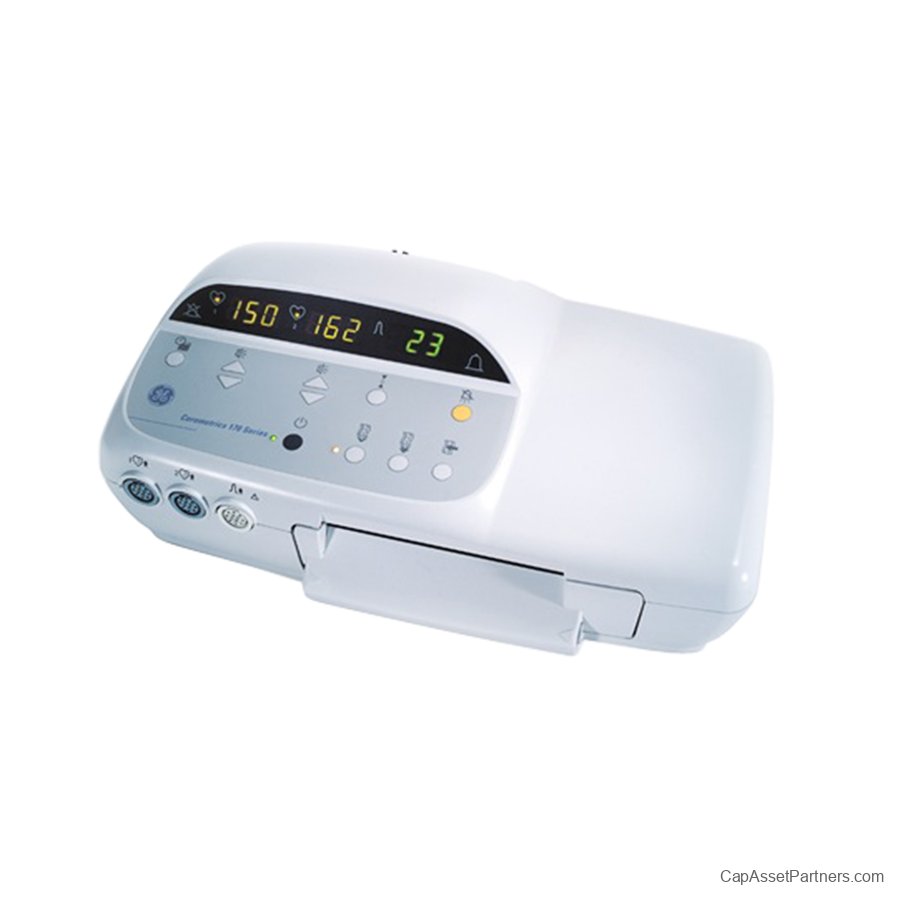

GE Corometrics 173 Fetal Monitor

GE Corometrics 173 Fetal Monitor
The GE Corometrics 173 Fetal Monitor, part of the innovative Corometrics 170 Series, is engineered for cost-effective and efficient fetal monitoring throughout the antepartum period, labor, and delivery. Designed with portability and ease of use in mind, this compact unit boasts a clear LCD display that allows for quick and accurate analysis of fetal heart rates.
This versatile monitor provides dual heart rate monitoring and external uterine activity tracking, making it an essential tool for clinicians navigating the complexities of each unique delivery. Additionally, customizable heart rate alarm ranges and user-friendly transducer placement aids further enhance its functionality. An optional fetal movement detection feature is also available to assist in thorough monitoring.
The Corometrics 173 is specifically intended for singleton pregnancies and offers reliable monitoring options, including ultrasound and fetal electrocardiogram (FECG) capabilities. For facilities needing dual heart rate monitoring, the Corometrics 174 model is recommended.

Key Features

• Monitors external uterine activity with TOCO

• Supports internal uterine activity measurement via IUPC

• Customizable fetal heart rate alarms for enhanced monitoring

• Offers dual heart rate monitoring

• Lightweight and portable, weighing just 8 pounds

• High-quality 9-crystal ultrasound for dependable monitoring

• Watertight and lightweight TOCO and ultrasound transducers

• Independent volume controls facilitate optimal transducer placement

• Heartbeat coincidence and fetal heart rate offset features

• Optional fetal movement detection for comprehensive monitoring

With its advanced features and user-friendly design, the GE Corometrics 173 Fetal Monitor stands out as a reliable choice for healthcare providers committed to ensuring the well-being of mothers and their babies during pregnancy and delivery.

GE Corometrics 173 Fetal Monitor Specifications

Physical:

• Dimensions: 5.75 in (14.6 cm) H x 16.75 in (42.5 cm) W x 10 in (25.4 cm) D

• Weight: 8 lbs (3.6 kg) approx.

Operating:

• Technique: Pulsed Doppler with auto correlation processing

• Transducer Type: 9-crystal

• Pulse Repetition: 2 kHz (all modes)

• Frequency Pulse Duration: 92 µs

• Transmitter Frequency: 1.151 MHz

• Spatial-Average Temporal Isata: <5 mW/cm²

• Average Intensity:

• Focal 20 dB Beam Area: 16.6 cm² at a range of 7 cm

• Peak Instantaneous Intensity: 1.8 mW/cm²

• Heart Rate Counting Range: 50-120 BPM

• Leakage Current: Complies with IEC 60 1.1 and/or IEC 601.1.1 harmonized national standard; complies with EN 60601-1-2:2002

Power:

• Normal Line Voltage: 100 - 230 VAC

• Line Frequency: 50/60 Hz (operates over 47 - 63 Hz)

• Power Consumption: ? 30 VA

• Monitor DC Input: 12 Vdc at 2.5A

Environmental:

• Operating Temperature: 50°F to 104°F (10°C to 40°C)

• Relative Humidity (Operating): 10% to 75%, non-condensing

• Storage Temperature: 14°F to 131°F (-10°C to 55°C)

• Relative Humidity (Storage): 10% to 90%, non-condensing
