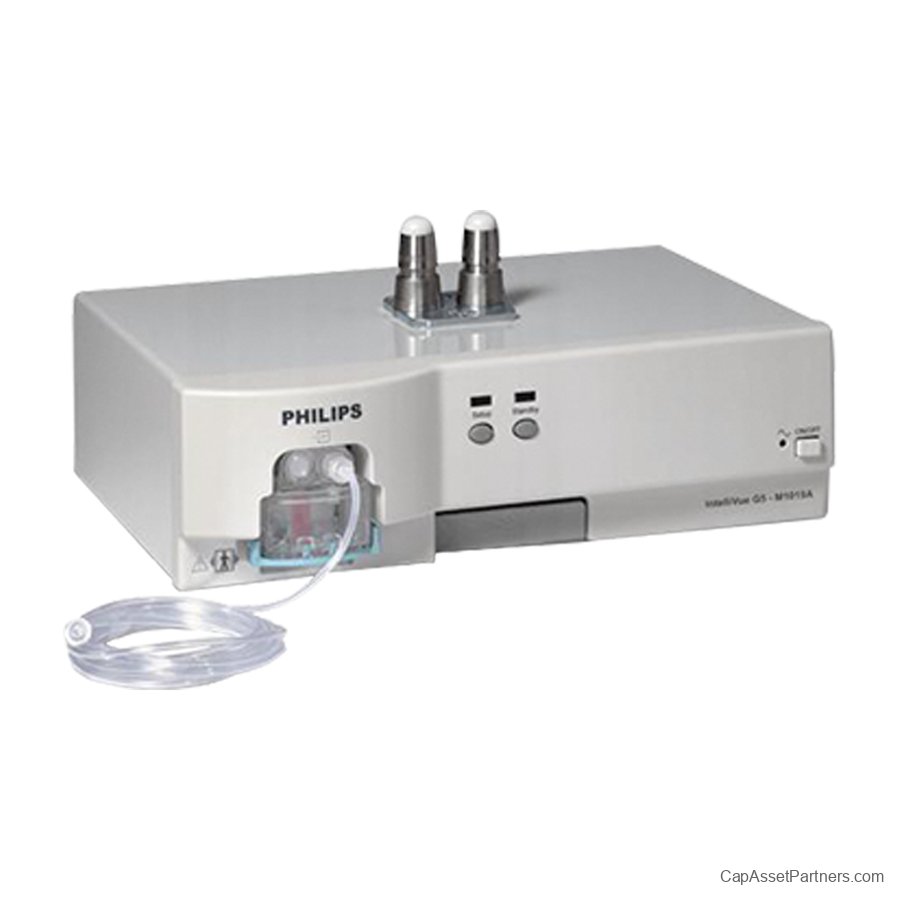

Philips IntelliVue G1 and G5 Anesthesia Gas Modules

Philips IntelliVue G1 and G5 Anesthesia Gas Modules
Elevate your anesthesia monitoring capabilities with the Philips IntelliVue G1 and G5 Anesthesia Gas Modules. Designed for precision and reliability, these modules measure the five most commonly used anesthetic gases alongside nitrous oxide (N2O) and carbon dioxide (CO2). Their clear waveform displays integrate seamlessly with compatible patient monitors, ensuring comprehensive oversight of your patient’s gas exchange.
The IntelliVue G1 module allows clinicians to manually select a single agent for measurement, making it ideal for focused monitoring. In contrast, the IntelliVue G5 automatically identifies various anesthetic agents, providing mixed-agent measurement capabilities for enhanced versatility. The G5 also comes equipped with an advanced paramagnetic technology-based fast oxygen (O2) measurement as a standard feature, while the G1 offers it as an optional enhancement.
Key Features:

• Durable and Compact Design: Built for easy maintenance, ensuring long-lasting performance in diverse medical environments.

• Reliable Gas Sensors: The gas sensors feature a design with no moving parts, contributing to their durability and reliability.

• Automatic Zero Calibration: Experience efficiency with zero calibrations that occur automatically during the warm-up phase.

• Flexible Mounting Options: Versatile installation possibilities to accommodate various clinical settings.

• Comprehensive Monitoring: Includes essential metrics such as airway respiration rate and MAC values.

Numerics, Waveforms, and Trends Include:

• Sevoflurane

• Isoflurane

• Halothane

• Desflurane

• Enflurane

• Nitrous Oxide (N2O)

• Carbon Dioxide (CO2)

• Oxygen (O2)*

Upgrade your facility's anesthesia monitoring with the advanced capabilities of the Philips IntelliVue G1 and G5 Anesthesia Gas Modules, designed to support both lower-acuity and higher-acuity environments effectively. Ensure the highest standards of patient care with this exceptional monitoring solution.

Philips IntelliVue G1 and G5 Anesthesia Gas Modules Specifications

General Specifications:

• Weight:

• G1: Approximately 2.2 lbs (1.0 kg)

• G5: Approximately 2.2 lbs (1.0 kg)

• Dimensions:

• G1: 10.5 in × 8.6 in × 2.3 in (267 mm × 218 mm × 58 mm)

• G5: 10.5 in × 8.6 in × 2.3 in (267 mm × 218 mm × 58 mm)

Power Requirements:

• Voltage: 100 - 240 V AC

• Frequency: 50/60 Hz

Performance Specifications:

• Gas Detection:

• G1 & G5: Capable of detecting multiple anesthetic gases

• Anesthetic Agent Monitors:

• G1: Capable of measuring up to 6 gases

• G5: Capable of measuring up to 7 gases

• Agent Measurement Accuracy:

• ±0.1% for primary anesthetic agents

Environmental Conditions:

• Operating Temperature:

• 32°F to 122°F (0°C to 50°C)

• Storage Temperature:

• -4°F to 158°F (-20°C to 70°C)

• Humidity: 10% to 95% non-condensing

Communication Interfaces:

• Connectivity:

• RS-232

• Ethernet (optional for G5)

Compatibility:

• Designed to integrate with Philips IntelliVue MP Series monitors.

Safety Standards:

• Complies with relevant medical device safety standards (IEC 60601).

Additional Features:

• User interface with touchscreen display (G5 specific)

• Continuous monitoring capability

• Configurable alarm settings

Please note that some specifications may vary based on the specific configuration and version of the modules. Always refer to the manufacturer's official documentation for the most accurate and detailed information.
