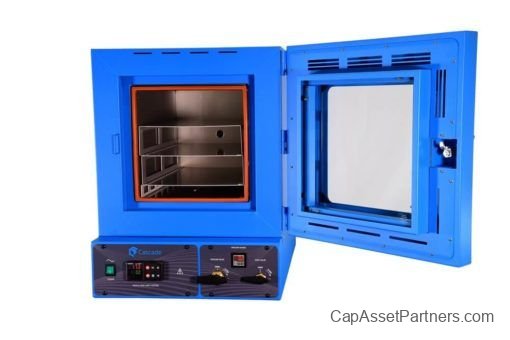

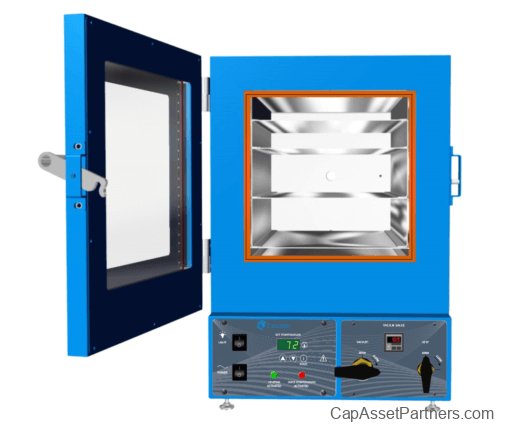

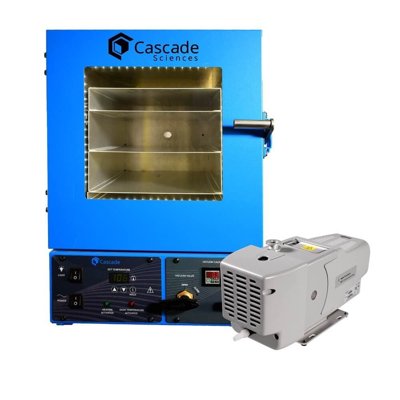

CVO-2 Vacuum Oven & Packages
The CVO-2 Vacuum Oven is designed to meet the highest standards in laboratory environments. NRTL certified, it features stackable shelves and adjustable leveling feet, ensuring versatility and stability during use.
Key Features
- Stable Temperature Control: Maintain precise temperatures with minimal overshoot, thanks to the strategically placed internal temperature probe.
- Illuminated Workspace: Bright LED lights embedded within the unit provide excellent visibility of sensitive materials through the glass window on the door.

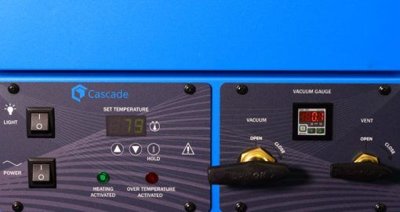

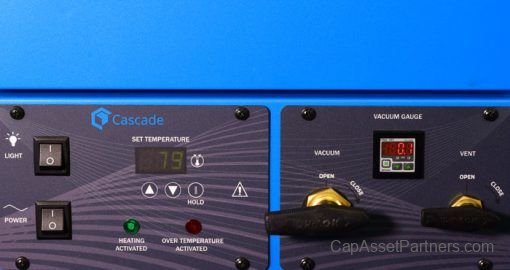

- Digital Vacuum Gauge: Easily monitor vacuum levels with a digital gauge that reads in inches of mercury.
- Superior Vacuum Integrity: The silicone gasket effectively seals against the chamber door, maintaining the vacuum integrity essential for optimal performance.
- Efficient Venting: User-friendly 1/4 turn lever allows for straightforward vacuum and vent operations.
Specifications
| SKU |
Temperature Stability |
Ultimate Pressure |
Operating Temperature Range |
Power Requirement |
| CS-1801010551 |
90°C ± 0.2°C |
29.9 inHg |
10°C to 150°C |
120 V/ 1 ph/ 20 AMP |
Included Accessories
Each CVO-2 package comes complete with:
- 2 tall shelves, 2 medium shelves, 1 short shelf (Standard Model)
- Power cord & 4 leveling feet
High Temperature Oven Specifications
- High temp gasket for enhanced performance
- Programmable temperature controller
- Capable of reaching temperatures up to 220°C
- Operational vacuum range from 0 to 29.9 inHg
- Constructed with stainless steel and 20-gauge steel materials
- Heat-up time to 150°C: 120 minutes
- Temperature uniformity: ± 6% of set point
- Temperature stability: ± 0.2°C at 150°C
Operating Environment
The CVO-2 vacuum oven is intended for indoor use, operating best at room temperatures between 15°C and 40°C with a maximum relative humidity of 80%. Avoid placing the oven near heat-producing devices, HVAC vents, high-traffic areas, or direct sunlight, as these factors could impact temperature performance.
Cleaning and Maintenance
For cleaning, it is recommended to avoid deionized water or chlorine-based products. Instead, utilize wipes for applying appropriate cleaners to maintain the oven’s effectiveness.

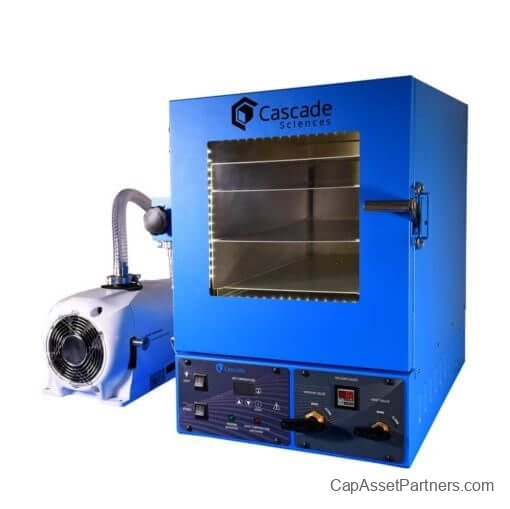

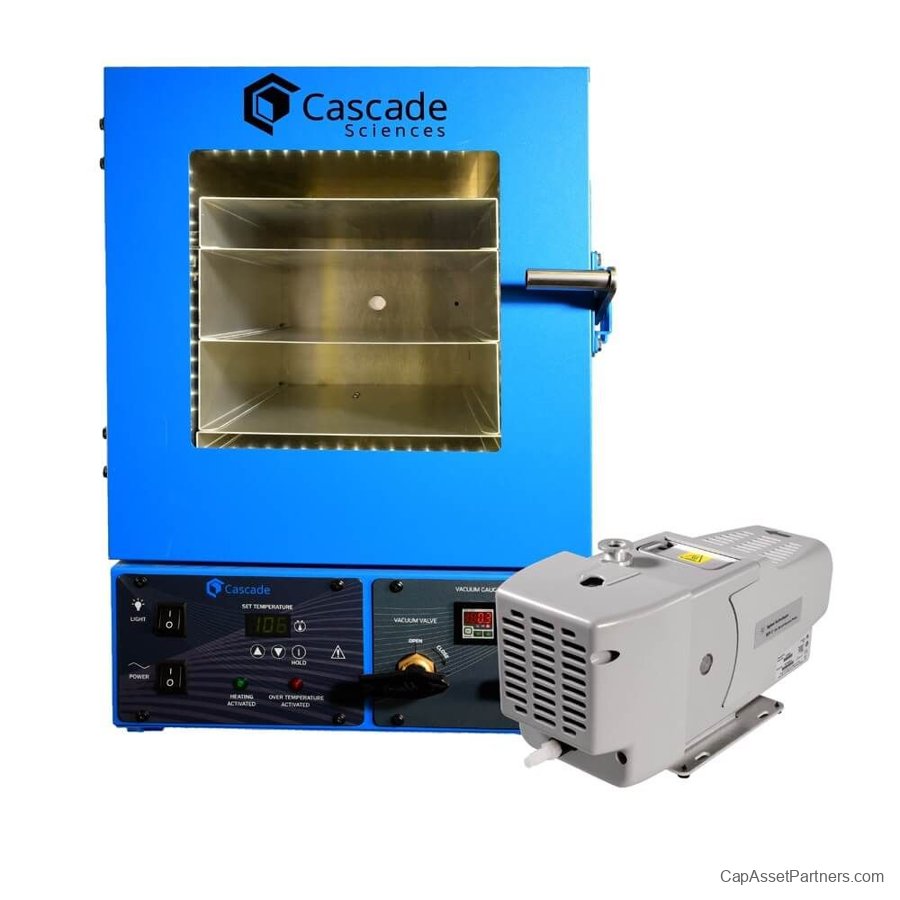

CVO-2 Oven Packages
Standard Package Includes:
Pro Package Includes:

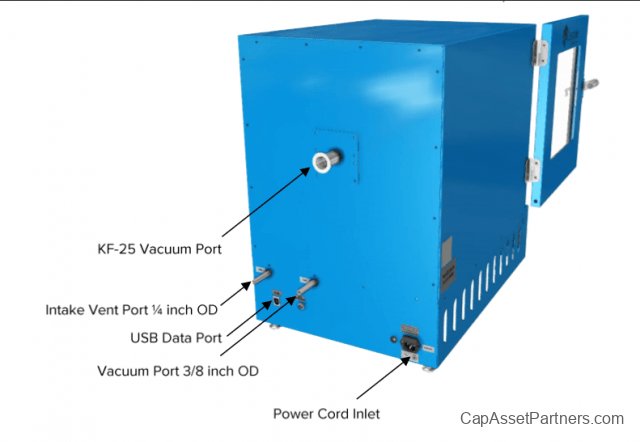

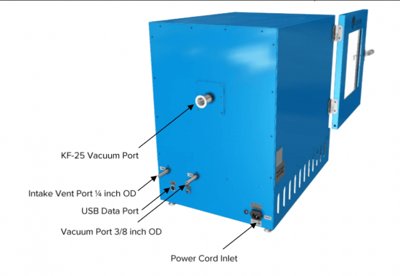

Compatibility & Connectivity
The standard CVO-2 vacuum oven requires a 110-120V power supply outlet (NEMA 5-15R), and it comes equipped with a 125V, 15A, 9 ft 5 in NEMA 5-15P power cord.
Dimension Details
| SKU |
# of Shelves |
Internal Dimensions |
External Dimensions |
| CS-1801010551 |
5 Shelves |
12 in W x 20 in D x 12 in H |
20.5 in W x 31 in D x 26.3 in H |
