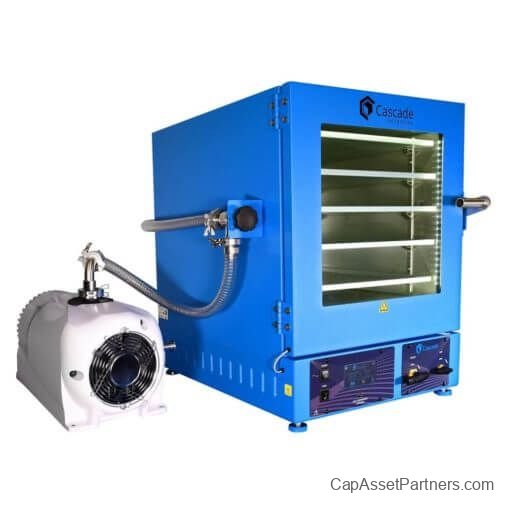

CVO-5 Vacuum Oven & Packages

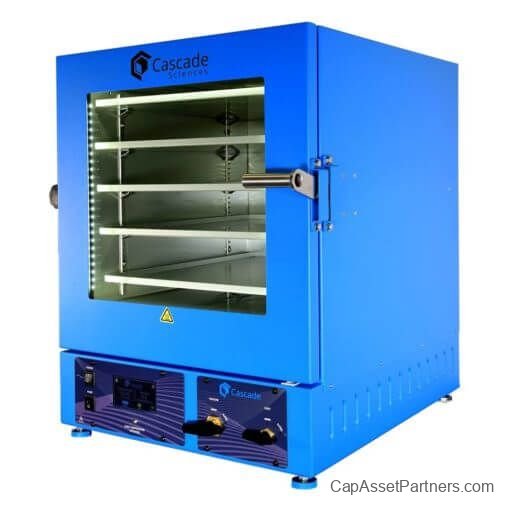

Introducing the CVO-5 Vacuum Oven, a state-of-the-art piece of medical equipment designed for precision and reliability in temperature-sensitive applications. This NRTL certified oven combines advanced technology with user-friendly features to meet the demanding needs of laboratories and medical facilities.

Key Features

• Adjustable Shelves: Customizable space with five shelves included.
• Leveling Feet: Ensures stability on uneven surfaces.
• Temperature Control: Stable internal temperature with uniformity at 90°C ± 2.0°C and stability at 90°C ± 0.2°C.
• LED Lighting: Bright interior LED lights and window visibility for monitoring sensitive materials.

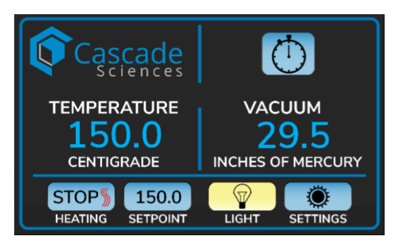

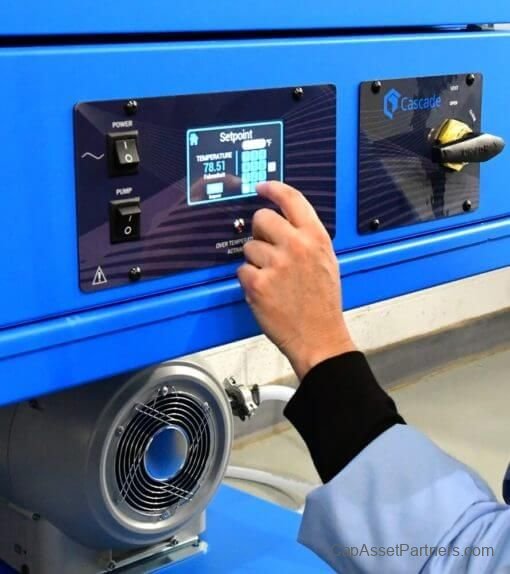

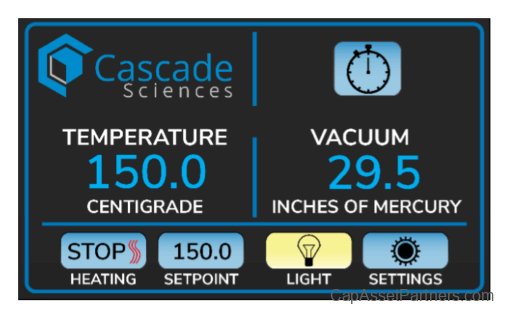

• Touchscreen Control: Intuitive touchscreen LED display allows easy adjustment of settings and energizing the vacuum pump.
• Vacuum and Vent Valve: User-friendly 1/4 turn lever for efficient operation.
• Dual Reading Vacuum Gauge: Choose between inches of mercury or torr, barr for accurate measurement.
• Durable Silicone Door Gasket: Seals effectively against the chamber door, ensuring vacuum integrity.

Specifications

Temperature Performance

• Heat Up Time: Reaches 90°C in 126 minutes.
• Cool Down Time: From 90°C in 285 minutes.

Package Options

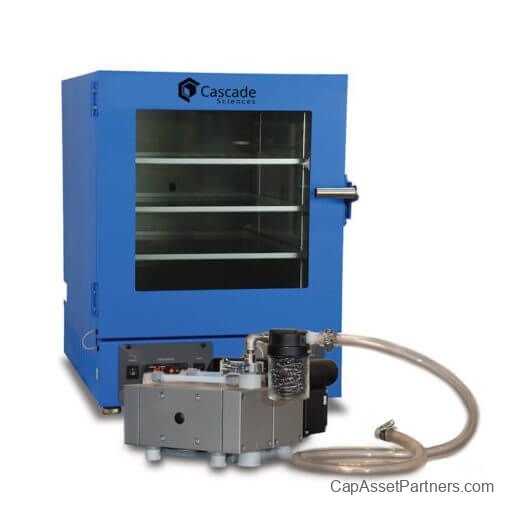

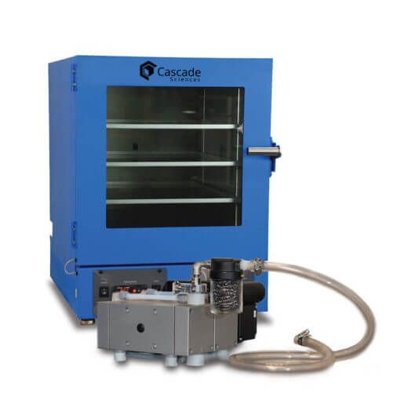

Standard CVO-5 Package Includes:

• CVO-5 Vacuum Oven
• 5 Shelves
• Welch 2052B-01 Oil-Free Diaphragm Vacuum Pump
• Passive Filter Trap
• Connections

CVO-5 Turbo Package Includes:

• CVO-5 Vacuum Oven
• 8 Shelves
• Agilent IDP15 Oil-Free Scroll Vacuum Pump
• MAXEVAP Connection Kit

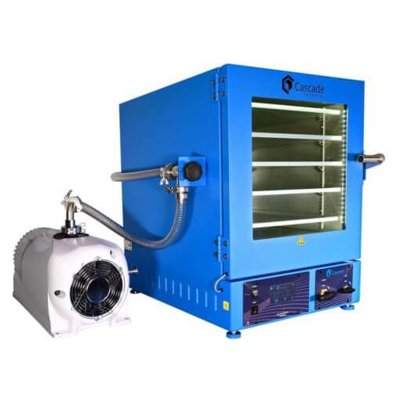

CVO-5 Pro Package Includes:

• CVO-5 Vacuum Oven
• 5 Shelves
• Agilent IDP7 Oil-Free Scroll Vacuum Pump
• MAXEVAP Connection Kit

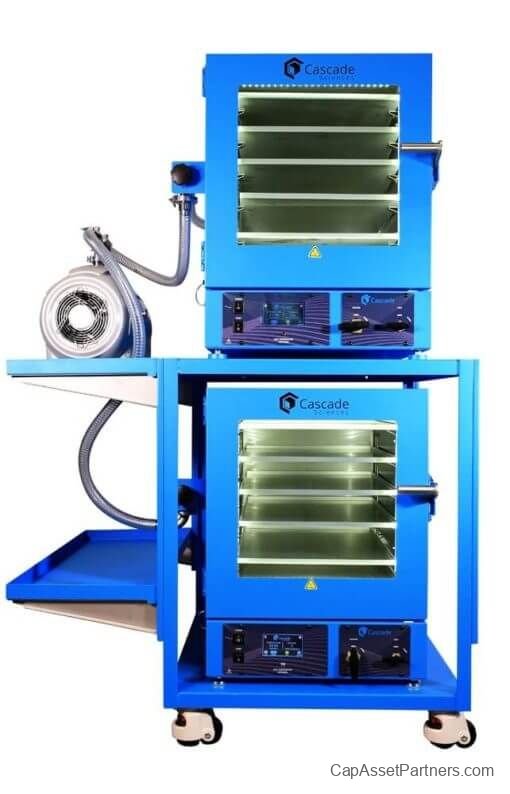

CVO-5 Double Up Package Includes:

• 2 CVO-5 Vacuum Ovens
• 10 Shelves
• Agilent IDP15 Oil-Free Scroll Vacuum Pump
• 2 MAXEVAP Connection Kits
• Heavy Duty Industrial Mobile Cart

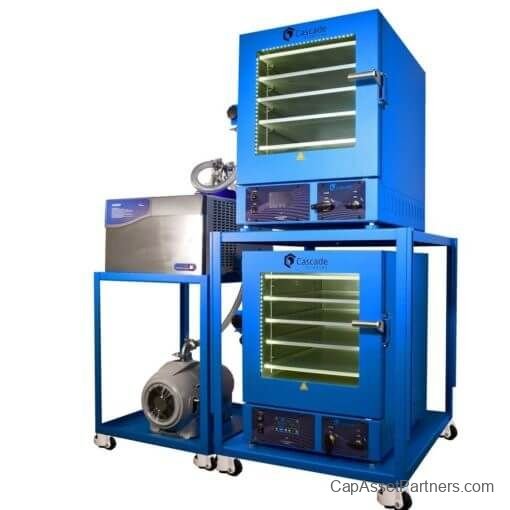

CVO-5 Double Up Package with MAXTRAP50 Includes:

• 2 CVO-5 Vacuum Ovens
• Agilent IDP15 Vacuum Pump
• 10 Shelves
• 2 MAXEVAP Connection Kits
• 1 Mobile Cart
• MAXTRAP Vacuum Cold Trap -50°C

CVO-5 Double Up Package with MAXTRAP105 Includes:

• 2 CVO-5 Vacuum Ovens
• Agilent IDP15 Vacuum Pump
• 10 Shelves
• 2 MAXEVAP Connection Kits
• 1 Mobile Cart
• MAXTRAP Vacuum Cold Trap -105°C

Welch 2052B-01 Vacuum Pump Specifications:

• Pumping Speed: 2.3 CFM
• Ultimate Pressure: 1.5 Torr
• Power Requirement: 120V / 1 ph
• Filter Connection: KF-16 with 3/8th Hose Barb

Agilent IDP15 Vacuum Pump Specifications:

• Type: Oil-Free, Scroll
• Pumping Speed: 9 CFM
• Ultimate Pressure: 0.01 Torr
• Power Requirement: 120V / 1 ph
• Intake Connection: KF-25

Agilent IDP7 Vacuum Pump Specifications:

• Type: Quiet, Oil-Free, Scroll
• Pumping Speed: 5.4 CFM
• Ultimate Pressure: 0.02 Torr
• Power Requirement: 100-120V / 1 ph / 6 Amp
• Exhaust Connection: KF-25 with 1/2 inch Hose Barb

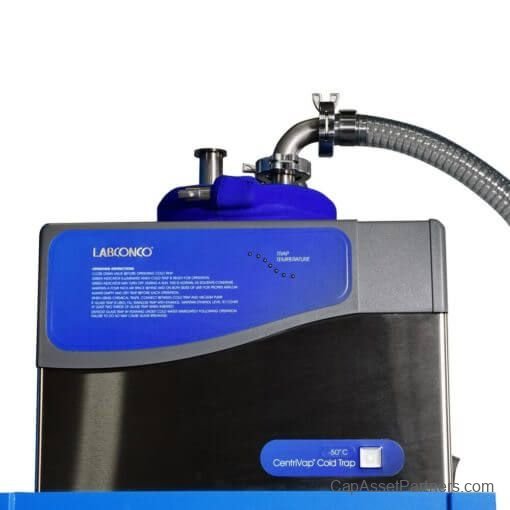

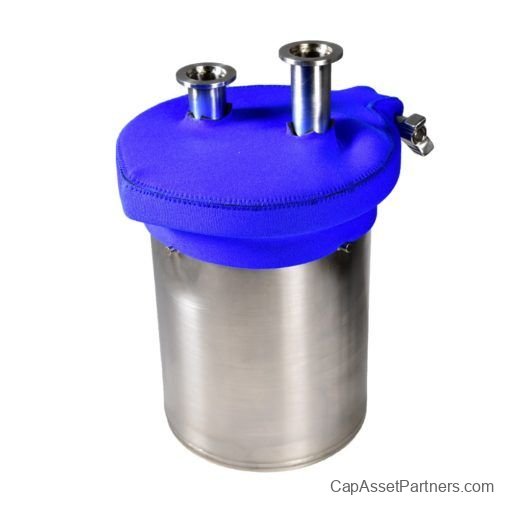

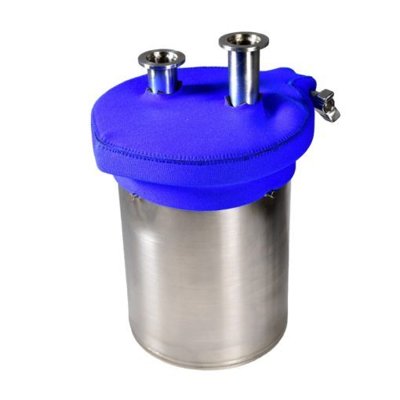

MAXTRAP Cold Trap Includes:

• 304 Stainless Steel Trap
• Viton Gasket
• Laconco Refrigerated Base: -105°C or -50°C
• CFC/HFC Free Refrigerants
• KF-25 Inlet/Outlet, Connections, and Hardware
• Power Cord
• 3mm Neoprene Insulator Cap

Oven Requirements

The CVO-5 Vacuum Oven requires a standard 110-120 volt power supply outlet (NEMA 5-15R) with the following specifications:

• Voltage: 110-120V
• Amperage: 14 Amps
• Frequency: 50/60 Hz

Ensure that the supplied voltage does not vary by more than 10% from the rating to avoid potential damage to the unit. It is designed for operation at room temperatures ranging from 15°C to 40°C and no greater than 80% relative humidity.

Cleaning should be done periodically using isopropyl alcohol wipes or non-chlorine-based wipes to maintain the chamber and prevent damage.
