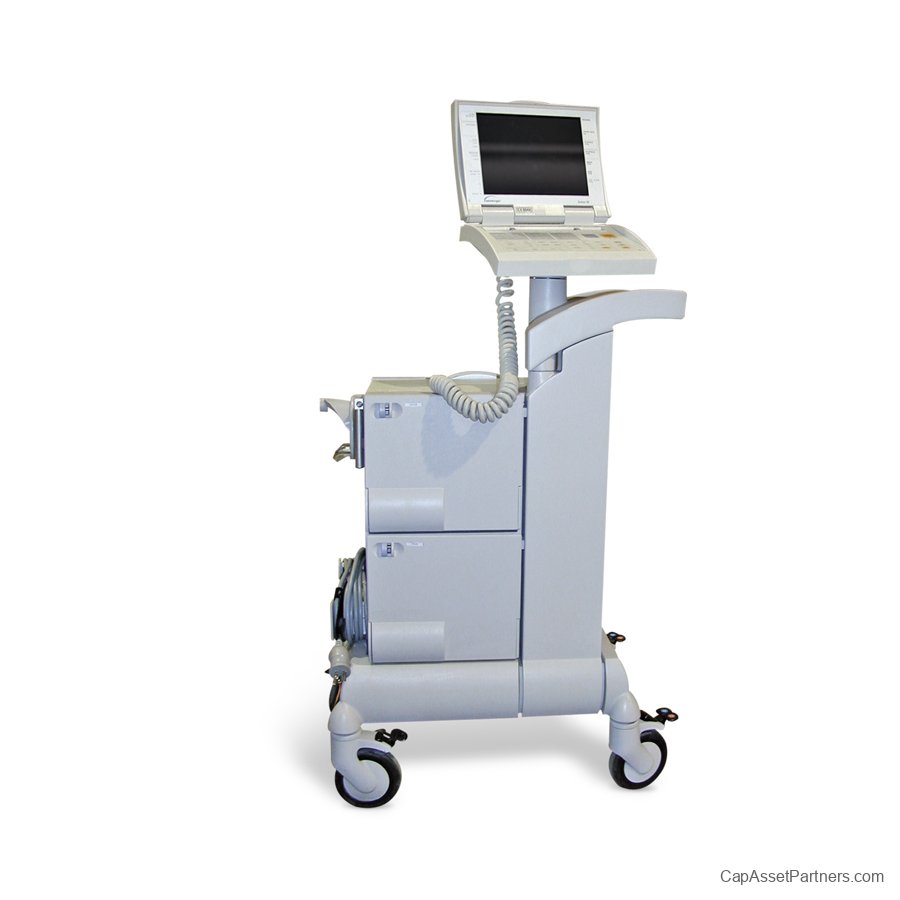

Datascope 98XT Intra-Aortic Balloon Pump

Datascope 98XT Intra-Aortic Balloon Pump: Advanced Cardiac Support System
The Datascope 98XT Intra-Aortic Balloon Pump is engineered to provide optimal cardiac support in even the most challenging clinical environments, including operating rooms, cath labs, and critical care units. Featuring the innovative CardioSync 2™ Software with the R-Trac™ system, this device brings cutting-edge technology for superior arrhythmia management and patient care.
Key Features:

• Cutting-Edge R-Trac Technology: The advanced autotiming supervisor provides automatic selection of R-wave deflation, reliable atrial fibrillation tracking, and rapid QRS identification, enhancing your ability to manage complex cardiac rhythms effectively.

• Advanced Pneumatic Performance: Experience faster inflation speeds, offering 18% greater augmentation, alongside improved deflation for greater unloading, ensuring swift and reliable patient support.

• Enhanced Arrhythmia Management: The 98XT excels in tracking isolated PVCs, bigeminy, and couplets while adapting rapidly to sudden changes in heart rate. The specialized "R" Wave Deflation mode allows for confident use in Afib patients.

• Largest Display in Its Class: The Datascope 98XT features the brightest display, automatically scaling ECG and arterial pressure waveforms. The display rotates and tilts for optimal viewing, while detailed help screens and time-in-standby alerts enhance user experience.

• Operator-Friendly Design: With automated one-button start-up and a user-friendly menu for customized preferences, the 98XT simplifies operation. It includes automated printing of vital waveforms and patient data, detachable keypad and display for flexible mounting, and built-in service diagnostics for easy maintenance.

• Safety and Convenience: Designed with patient safety in mind, the Datascope 98XT includes special cables to reduce noise from electrocautery and motion, along with fully automatic condensate removal.

Choose the Datascope 98XT Intra-Aortic Balloon Pump for a reliable, efficient, and user-friendly cardiac support solution that meets the demands of modern medical practice.

Datascope 98XT Intra-Aortic Balloon Pump Specifications

General

• EL Display:

• Dimensions: 8.3" W × 6.2" H (21.1 cm × 15.8 cm)

• Viewing angle: 160°

• Rotation: 330°

• Tilt: 180°

• Features: Detachable, laptop-like closure for storage and protection, remote monitor mount (optional)

• Preferences Menu:

• Display sweep speed: 25 or 50 mm/sec

• Brightness settings: low, medium, high

• Balloon waveform: on/off

• ECG inflation markers: on/off

• AP waveform auto-scaling: on/off

• Flashing alarms: on/off

• ECG Trigger:

• Threshold dynamically adjusted for sensitivity/selectivity

• Minimum: 120 µV (normal gain); 40 µV (max gain)

• Pressure Trigger:

• Automatic mode: 50% of the difference between peak systolic and end diastolic (average over multiple cycles)

• Variable mode: User adjustable between 7 and 30 mmHg ± 3 mmHg

• Pacer A Trigger:

• R-wave detection with blanking extended to 100 ms

• Pacer V/A-V Trigger:

• V Pacer: fixed up to 185 bpm (no demand pacing)

• A-V Pacer: fixed up to 125 bpm (no demand pacing) with A-V intervals between 80-224 ms

• Internal Trigger:

• Variable mode: 40-120 bpm

• Normal mode: 80 ± 1 bpm

• Tall T-Wave Rejection:

• Rejects all T-Waves where Q-T interval is.

• Pacer Rejection:

• Rejects all pulses of amplitude ± 2.0 mV to ± 700 mV and durations between 0.1 ms and 2.0 ms with:

• No tail

• ms time constant tail

• ECG Leads:

• Leads: I, II, III, AR, AVL, AVF, V (12 lead compatibility)

• Keypad switch: between direct leads and external monitor

• ECG Gain (default):

• 1 V output per 1 mV input ± 5% (waveform automatically scaled to occupy ECG display window)

• Gain (variable):

• 0.15 cm to 3.0 cm/mV ± 20% (autoscaling disabled)

• Frequency Response:

• Display: 0.5-12 Hz

• Monitor Output: 0.5-135 Hz

• Defibrillator Protection:

• Discharge levels ? 360 J (trace returns to screen in a maximum of 2 seconds)

• ESIS:

• Automatic suppression with internal ECG amplifier

• AP Source Selection:

• On-keypad switch (transducer/external)
