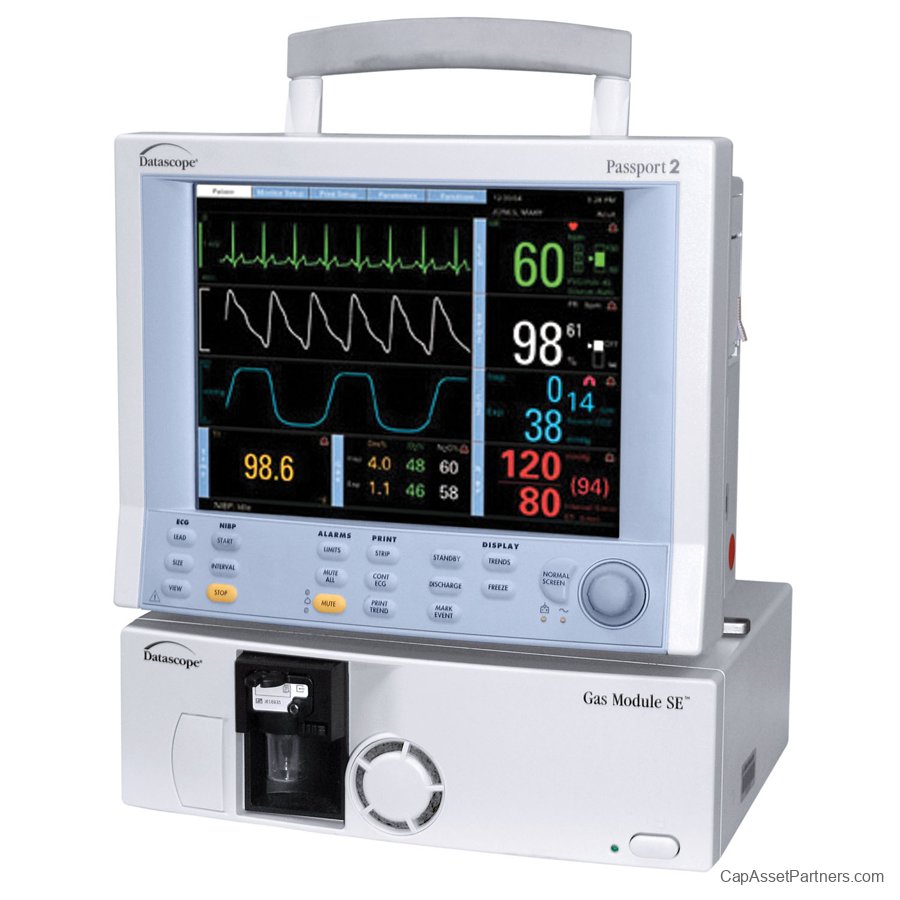

Datascope Passport 2 Patient Monitor with Gas Module SE – A Simplified Approach to Patient Monitoring
Experience streamlined patient management with the Datascope Passport 2 Patient Monitor equipped with the advanced Gas Module SE. This state-of-the-art device is designed for healthcare professionals who need reliable monitoring capabilities in critical care environments.
Key Features:
- User-Friendly Interface: The monitor boasts an intuitive navigator knob and dedicated function keys, ensuring that accessing vital information is quick and easy.
- High Visibility Display: A 10.4" color TFT screen provides maximum visibility, showcasing large numerics and up to six waveforms, which automatically configure based on patient needs.
- Versatile Monitoring Options: The device supports configurations featuring 3 or 5-lead ECG, enhanced with ESU noise rejection, lead-selectable respiration, and NIBP, alongside Masimo SET® motion-tolerant SpO2 and temperature measurement.
- Memory and Trend Management: Store up to 120 patient time measurements with graphical trends, expandable to 500 entries, allowing for comprehensive data review and analysis.
Basic Specifications:
- Display: 10.4" color TFT for improved readability
- Waveform Capacity: Flexible support ranging from 3 to 6 waveforms with automatic adjustments
- ECG Capability: Offers both 3 or 5 lead ECG with advanced noise rejection features
- Output Options: ECG and invasive blood pressure analog outputs for synchronization with other devices
- OXY-CRG Trend Feature: A 6-minute trend specifically designed for neonatal and pediatric applications
- Power Supply: Comes with a built-in power supply for direct AC connections
Gas Module SE Advantages:
- Comprehensive Gas Monitoring: The Gas Module SE enhances the Passport 2 with advanced capabilities for O2, CO2, and N2O monitoring, accommodating the measurement of five anesthetic agents either automatically or manually.
- Anesthesia Monitoring: Tailored to fulfill the comprehensive monitoring requirements of hospitals and surgery centers, ensuring the safety and well-being of patients during anesthesia.
- Optional Spirometry: This feature allows for the measurement of airway pressures and lung volumes, vital for respiratory assessment.
The Datascope Passport 2 Patient Monitor with Gas Module SE combines advanced technology with user-centric design, making it an indispensable tool in modern patient care. Optimize your monitoring capabilities and ensure high-quality outcomes in critical care settings.
Datascope Passport 2 Patient Monitor with Gas Module SE Specifications
- Display: 8.4-inch color LCD
- Dimensions: 12.6 x 10 x 4.5 inches (32 x 25.4 x 11.4 cm)
- Weight: 6.5 lbs (2.95 kg)
Parameters:
- Heart Rate: 30 to 300 bpm
- Respiratory Rate: 0 to 120 breaths/min
- Non-Invasive Blood Pressure (NIBP): 40 to 260 mmHg (5 to 34.6 kPa)
- CTBP (Cardiac Output): 0 to 15 L/min (0 to 15,000 mL/min)
- Temperature: 32 to 44 °C (89.6 to 111.2 °F)
Gas Monitoring:
- End-Tidal CO2: 0 to 99 mmHg (0 to 13.2 kPa)
- O2 Concentration: 0% to 100%
Battery Life: Approximately 6 hours
Network Connectivity:
- Communication Protocol: Ethernet, Serial, or Optional Wireless
Accessories:
- Printer, Multiparameter cables, and Additional sensors available
Compliance: CE marked, ISO 13485 certified
Operating Environment:
- Temperature: 0 to 40 °C (32 to 104 °F)
- Humidity: 10% to 95% non-condensing
This is a basic overview of the specifications. For detailed use and maintenance, refer to the manufacturer's manual.
