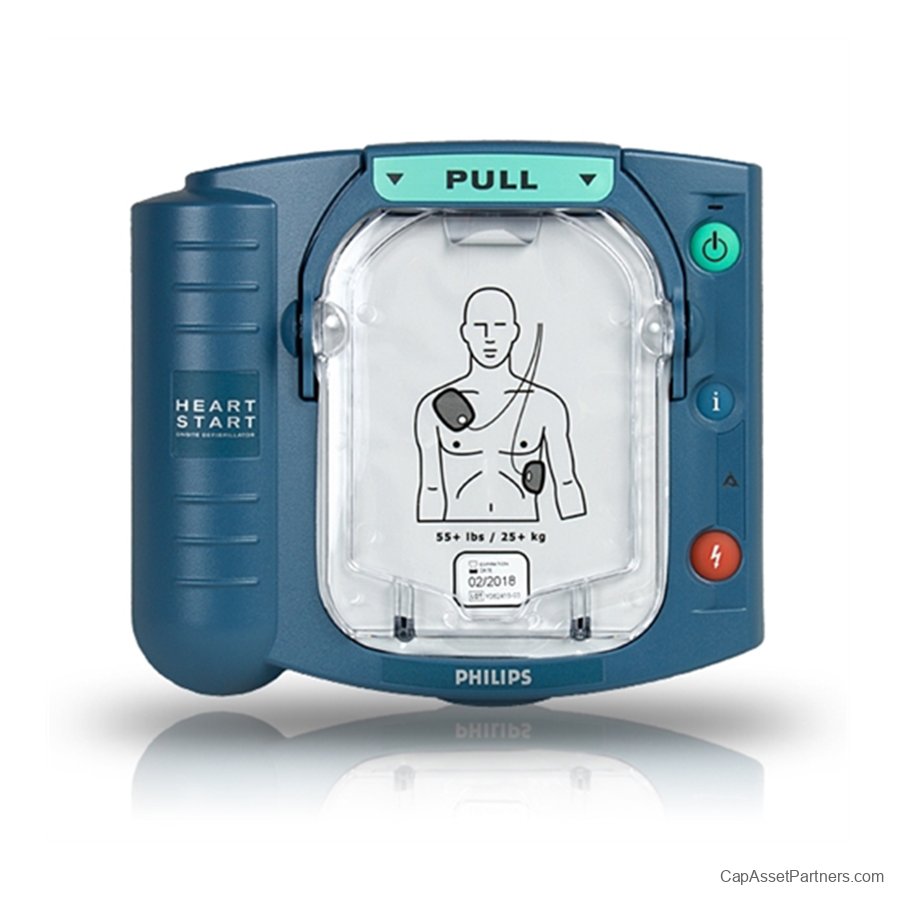

Philips HeartStart AED - Onsite Automated External Defibrillator

Product Description: Philips HeartStart AED

• Onsite Automated External Defibrillator

The Philips HeartStart AED (Automated External Defibrillator) is a vital tool for emergency response in any environment, providing essential support during cardiac emergencies. This user-friendly device is designed for individuals of all ages, equipped with both pediatric and adult defibrillation pads. The HeartStart AED features an optional training pad cartridge, allowing staff to practice their intervention skills and familiarize themselves with the device.
Key Features:

• Lightweight and Portable: Weighing just 3.3 pounds with battery and pads (2.4 pounds without), the HeartStart AED is easy to transport, making it ideal for various settings, from offices to schools.

• Intuitive User Experience: The HeartStart’s clean design and clear voice prompts are tailored to guide users through each step of the defibrillation process, instilling confidence when every second counts.

• Reliable Readiness: The device is powered by a long-lasting, four-year disposable battery that ensures it’s ready for action. Automated self-tests, conducted daily, verify the functionality of all components, including the pads.

• Versatility: This AED is suitable for patients of any age, specifically accommodating both adults and children, including infants, ensuring effective response across all demographics.

• Proven Effectiveness: Featuring patented SMART Analysis for heart rhythm assessment alongside SMART Biphasic defibrillation therapy, the Philips HeartStart AED boasts clinical validation gathered over nearly a decade. Its biphasic waveform is one of the most documented and trusted in the industry.

Ensure the safety and well-being of those around you with the Philips HeartStart AED, a dependable and efficient choice for emergency preparedness. Take the proactive step towards life-saving readiness today.

Philips HeartStart AED

• Onsite Automated External Defibrillator Specifications:

Defibrillator:

• Defibrillator Family: HS1

• How Supplied: Defibrillator, Owner's Manual, battery, 1 adult SMART Pads cartridge, Quick Reference Guide, and Quick Start poster

• Waveform: Truncated Exponential Biphasic; waveform parameters adjusted based on patient impedance

• Energy:

• Adult: nominal 150 Joules (111 Joules) into a 50 ohm load

• Infant/Child: nominal 50 Joules (37 Joules) into a 50 ohm load; automatically set based on SMART Pads cartridge

• Shock-to-Shock Cycle Time: Typically less than 20 seconds

• Quick Shock: Shock deliverable typically within 8 seconds after CPR interval

• Voice Instructions: Detailed voice messages to guide users

• CPR Coaching: Instructions for adult and infant/child CPR available

• Shock Delivery: Via adhesive pads on the patient's bare skin

• Controls: Green SMART Pads cartridge handle, green On/Off button, blue i-button, orange Shock button

• Indicators: Ready light; blue i-button; caution light

Physical Weight & Dimensions:

• Height: 2.8 inches (7 cm)

• Width: 8.3 inches (21 cm)

• Depth: 7.4 inches (19 cm)

• Weight:

• With battery and pads case: 3.3 lbs (1.5 kg)

• Without battery or pads case: 2.4 lbs (1 kg)

Environmental/Physical Requirements:

• Sealing: IP2X and IPX1 compliant

• Temperature Operating:

• Operating: 32°F to 122°F (0°C to 50°C)

• Standby: 50°F to 109°F (10°C to 43°C)

• Humidity Operating:

• Operating: 0% to 95% relative, non-condensing

• Standby: 0% to 75% relative, non-condensing

• Altitude:

• Operating: 0 to 15,000 feet

• Standby: 0 to 8,500 feet (>48 hours) and 8,500 to 15,000 feet (<48 hours)

• Shock/Drop Abuse: Withstands a 1 meter drop

• Vibration: Meets EN1789 specifications

• EMI (Radiated/Immunity): Meets EN55011 and EN61000-4-3 standards

Patient Analysis System:

• Patient Analysis: Evaluates ECG for shockable rhythms (VF and certain VT)

• Sensitivity/Specificity: Meets AAMI DF80 and AHA recommendations

• Artifact Detection: Minimizes effects of pacemaker artifact and electrical noise

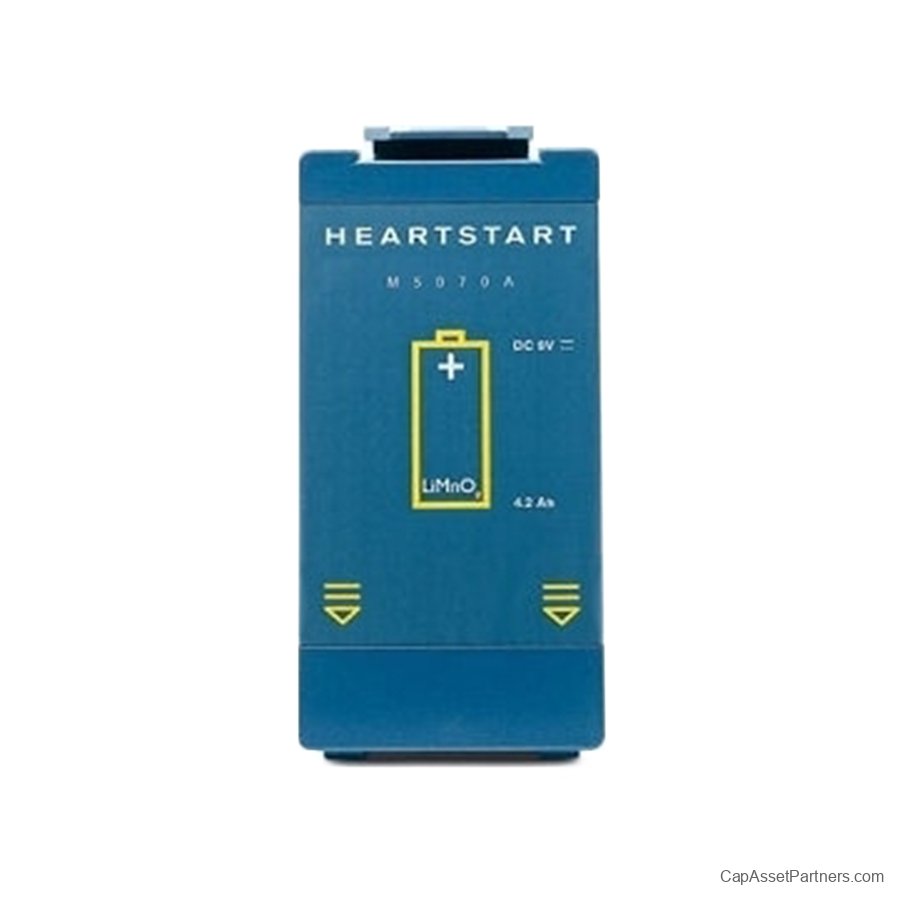

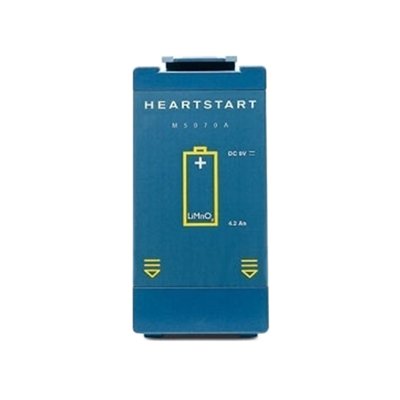

Battery (M5070A):

• Type: 4.2 Ah lithium manganese dioxide primary cells

• Capacity: Minimum 200 shocks or 4 hours of operating time

• Install-by Date: Minimum five years from manufacture

• Standby Life: Four years typical with proper installation

SMART Pads:

• Adult SMART Pads Cartridge: M5071A for patients 8 years and older or 55 lbs (25 kg) and over

• Infant/Child SMART Pads Cartridge: M5072A for patients under 8 years or 55 lbs (25 kg); Rx only

• How Supplied: Disposable cartridge for integrated system

• Energy Delivered:

• Adult: nominal 150 Joules

• Infant/Child: nominal 50 Joules

Training Pads:

• Adult Training Pads Cartridge: M5073A

• Infant/Child Training Pads Cartridge: M5074A

• Function: Puts AED in training mode, disables energy delivery, features 8 real-world training scripts

Automated and User-activated Self-tests:

• Daily Automatic Self-tests: Checks internal circuitry, waveform delivery, pads cartridge, and battery capacity

• Pads Integrity Test: Tests readiness of pads

• Battery Insertion Test: Extensive tests upon battery insertion

• Status Indicator: Blinking green "Ready" light; chirp for maintenance

Data Recording and Transmission:

• Infrared: Wireless event data transmission using IrDA protocol

• Data Stored: First 15 minutes of ECG and entire incident events and analysis decisions
