Manufactured by: BriskHeat

Category: Container Heaters

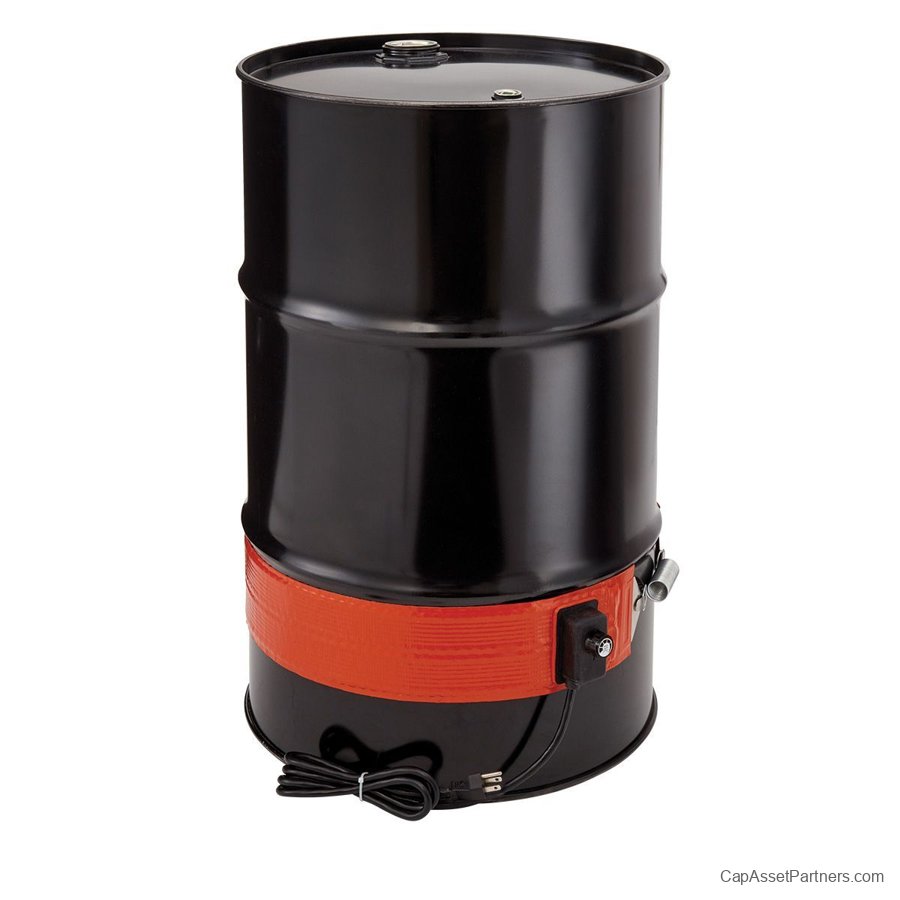

BriskHeat DHCH/DPCH Extra Heavy-Duty Silicone Rubber Drum/Pail Heaters

Extra Heavy-Duty Silicone Rubber Drum/Pail Heaters

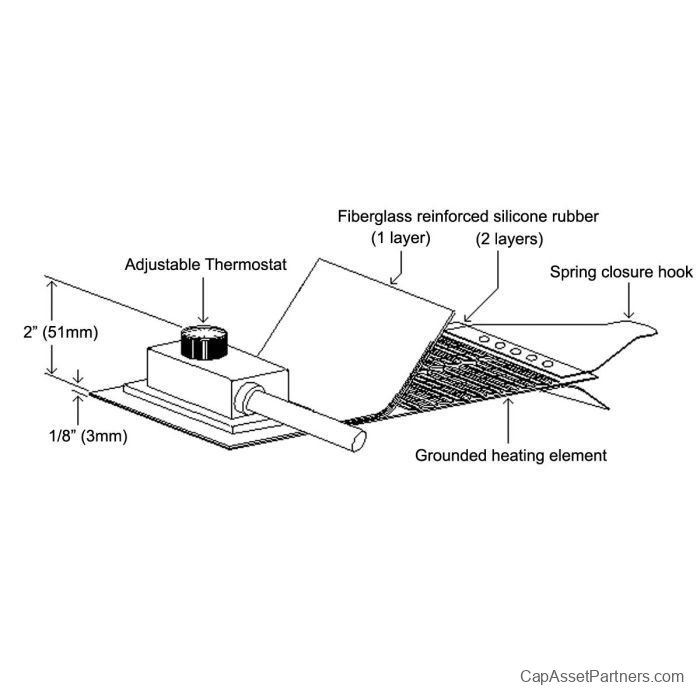

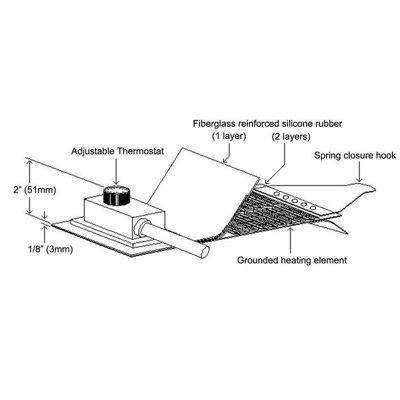

Engineered for optimal performance, our Extra Heavy-Duty Silicone Rubber Drum and Pail Heaters deliver reliable freeze protection, viscosity control, and temperature maintenance. Constructed with three layers of fiberglass reinforced silicone rubber, these heaters are ideal for metal drums and pails, ensuring toughness and durability in challenging environments.

Key Features:

Long service life suitable for a variety of settings

Moisture and chemical resistant with an IP54 rating

6 ft (1.8 m) power cord, offering options for plug or leads

Adjustable thermostat: Up to 425°F (218°C) for metal drums; Up to 160°F (71°C) for poly drums

Exceptional durability and flexibility for versatile use

Extra-wide 4 in (102 mm) surface coverage for effective heating

Grounded design for enhanced safety according to NEC 427.23 standards

Facilitates improved flow and reduced viscosity of drum and pail contents

Convenient plug-and-play operation for ease of use

Ideal Applications:

Viscosity Control

Freeze Protection

Temperature Maintenance

Melting of Solids

Specifications:

SKU	Capacity	Diameter	Density	Type	Temperature Range
DHCH10	3.5 - 7 gal (13 - 26 L)	11.1- 12.1 in (282 - 307 mm)	5.0 W/in² (0.78 W/cm²)	Metal	Up to 425°F (218°C)
DHCH11	15 - 16 gal (57 - 61 L)	14.0 - 15.0 in (355 - 381 mm)	5.0 W/in² (0.78 W/cm²)	Metal	Up to 425°F (218°C)
DHCH13	30 gal (114 L)	18.6 - 19.6 in (472 - 498 mm)	5.0 W/in² (0.78 W/cm²)	Metal	Up to 425°F (218°C)
DHCH15	55 gal (200 - 208 L)	22.3 - 23.2 in (566 - 589 mm)	5.0 W/in² (0.78 W/cm²)	Metal	Up to 425°F (218°C)
DPCH10	3.5 - 7 gal (13 - 26 L)	11.1- 12.1 in (282 - 307 mm)	1.25 W/in² (0.19 W/cm²)	Poly	Up to 160°F (71°C)
DPCH11	15 - 16 gal (57 - 61 L)	14.0 - 15.0 in (355 - 381 mm)	1.25 W/in² (0.19 W/cm²)	Poly	Up to 160°F (71°C)
DPCH13	30 gal (114 L)	18.6 - 19.6 in (472 - 498 mm)	1.25 W/in² (0.19 W/cm²)	Poly	Up to 160°F (71°C)
DPCH15	55 gal (200 - 208 L)	22.3 - 23.2 in (566 - 589 mm)	1.25 W/in² (0.19 W/cm²)	Poly	Up to 160°F (71°C)

Additional Information:

SKU	Voltage	Plug Type	Certification
DHCH10	120V	NEMA 5-15	cRUus (Up to 392°F/200°C), REACH, RoHS
DHCH11	120V	NEMA 5-15	cRUus (Up to 392°F/200°C), REACH, RoHS
DHCH13	120V	NEMA 5-15	cRUus (Up to 392°F/200°C), REACH, RoHS
DHCH15	120V	NEMA 5-15	cRUus (Up to 392°F/200°C), REACH, RoHS
DPCH10	120V	NEMA 5-15	CSA, cURus, IP54, NEMA 5-15P
DPCH11	120V	NEMA 5-15	CSA, cURus, IP54, NEMA 5-15P
DPCH13	120V	NEMA 5-15	CSA, cURus, IP54, NEMA 5-15P
DPCH15	120V	NEMA 5-15	CSA, cURus, IP54, NEMA 5-15P
