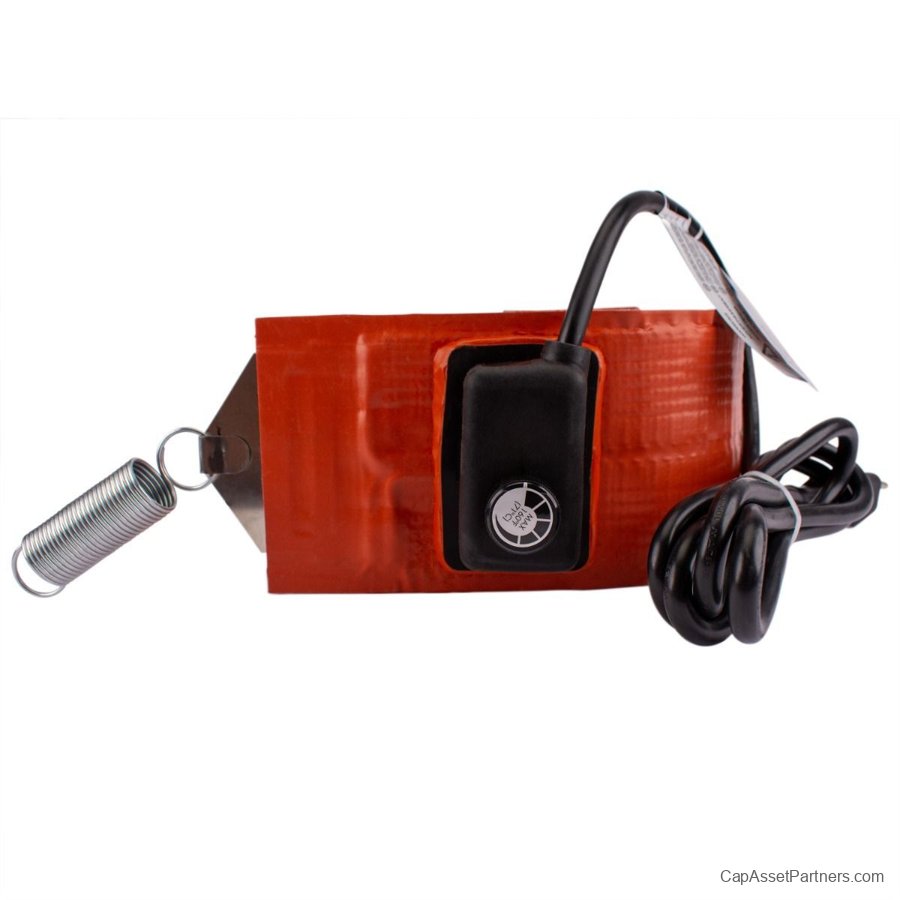

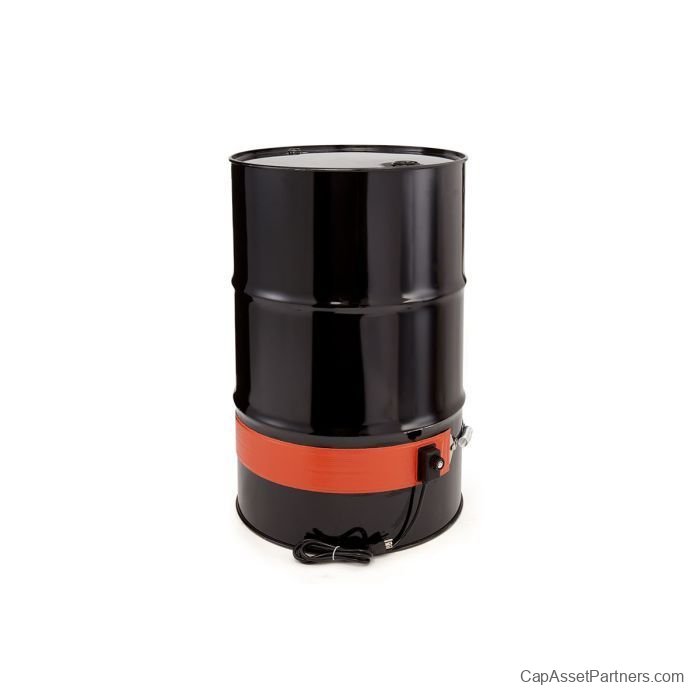

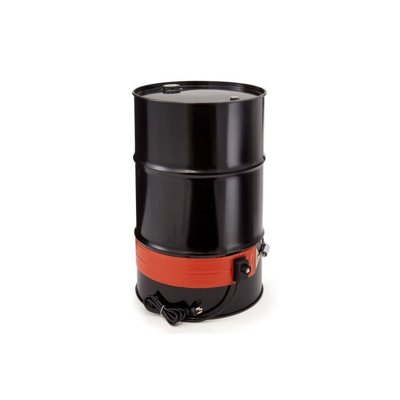

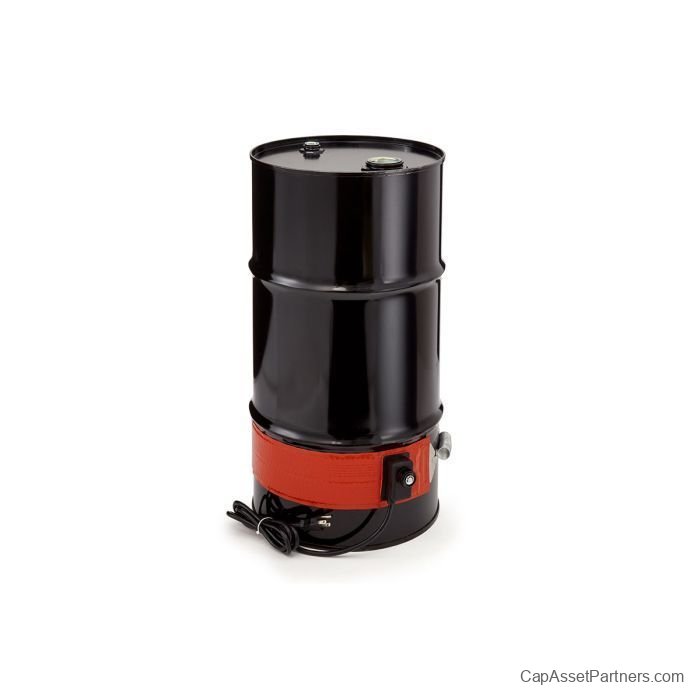

DHCS/DPCS Heavy-Duty Silicone Rubber Drum/Pail Heaters

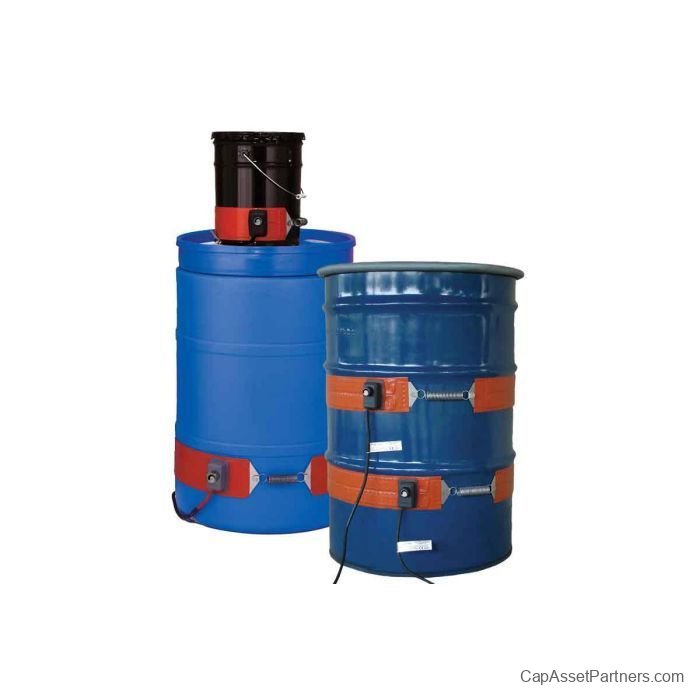

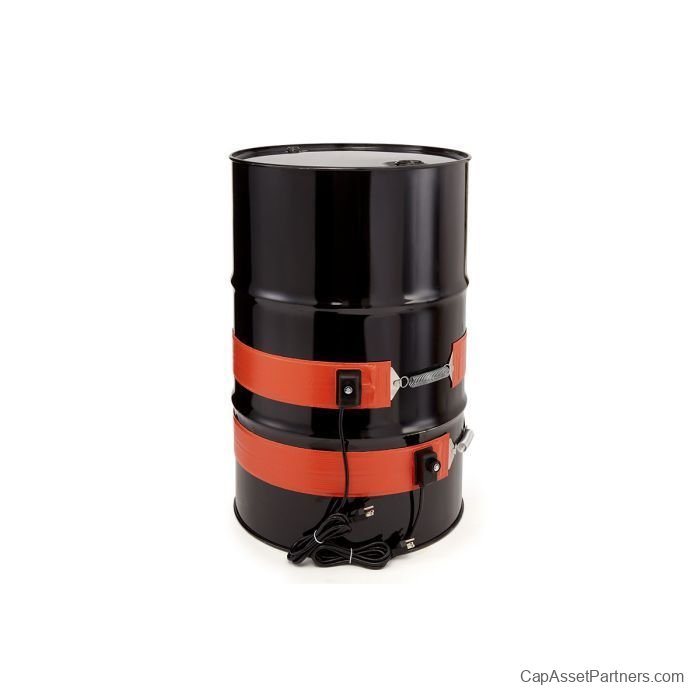

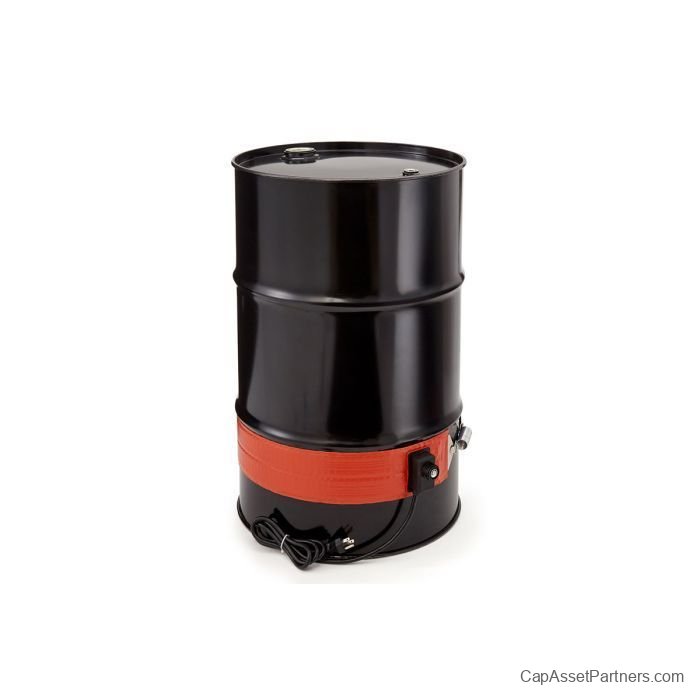

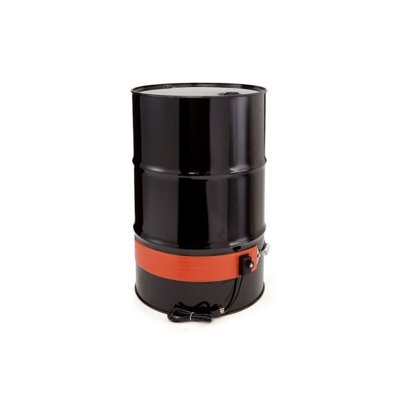

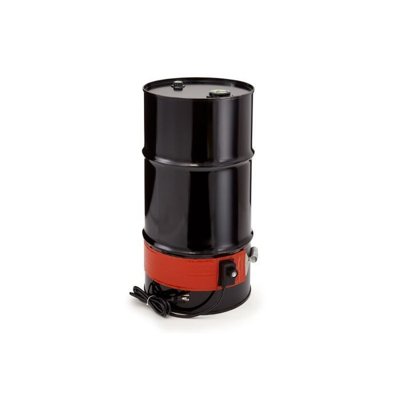

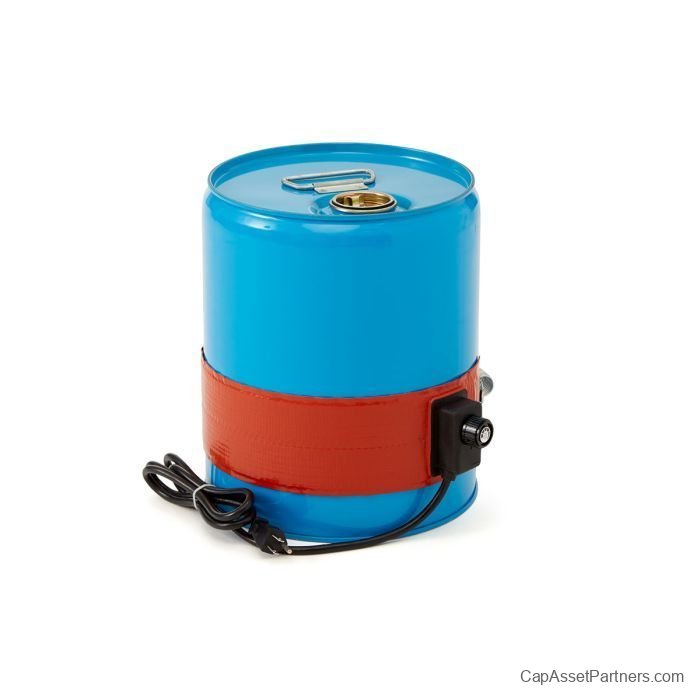

Experience unparalleled performance and efficiency with our DHCS/DPCS Heavy-Duty Silicone Rubber Drum and Pail Heaters, expertly engineered to ensure optimal freeze protection, viscosity control, and temperature maintenance for various materials. Utilizing robust materials, these heaters are perfect for metal and poly drums or pails, guaranteeing exceptional versatility across numerous applications.
Key Features:
- Enhances material flow by reducing viscosity levels in contents.
- User-friendly, featuring a simple plug-and-play design for quick setup.
- Designed for longevity and reliable performance in diverse environments.

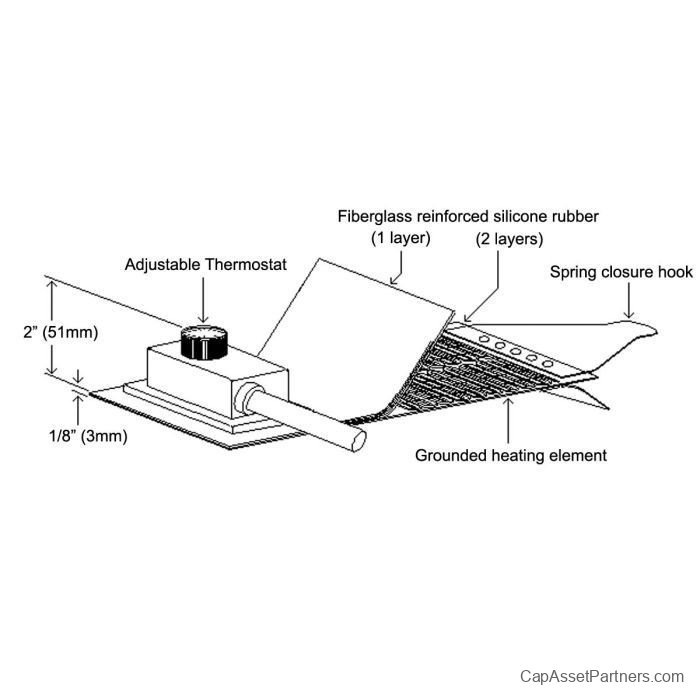

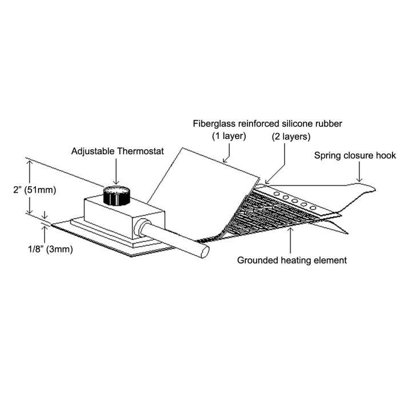

- Equipped with an adjustable thermostat, accommodating temperatures from 160°F to 425°F (71°C to 218°C).
- Durable and flexible to support a broad spectrum of heating applications for poly and metal drums/pails.
- Generous 4-inch (102 mm) wide surface coverage for enhanced efficiency.
- Moisture and chemical resistant, IP54 rated for dependable use.
- Safety grounded design complies with NEC 427.23 for peace of mind.
Specifications:
| SKU |
Capacity |
Diameter |
Density |
Type |
Temperature Range |
| DHCS10 |
3.5 - 7 gal (13 - 26 L) |
11.1-12.1 in (282 - 307 mm) |
5.0 W/in² (0.78 W/cm²) |
Metal |
Up to 425°F (218°C) |
| DHCS11 |
15 - 16 gal (57 - 61 L) |
14.0 - 15.0 in (355 - 381 mm) |
5.0 W/in² (0.78 W/cm²) |
Metal |
Up to 425°F (218°C) |
| DHCS13 |
30 gal (114 L) |
18.6 - 19.6 in (472 - 498 mm) |
5.0 W/in² (0.78 W/cm²) |
Metal |
Up to 425°F (218°C) |
| DHCS15 |
55 gal (200 - 208 L) |
22.3 - 23.2 in (566 - 589 mm) |
5.0 W/in² (0.78 W/cm²) |
Metal |
Up to 425°F (218°C) |
| DPCS10 |
3.5 - 7 gal (13 - 26 L) |
11.1-12.1 in (282 - 307 mm) |
1.25 W/in² (0.19 W/cm²) |
Poly |
Up to 160°F (71°C) |
| DPCS11 |
15 - 16 gal (57 - 61 L) |
14.0 - 15.0 in (355 - 381 mm) |
1.25 W/in² (0.19 W/cm²) |
Poly |
Up to 160°F (71°C) |
| DPCS13 |
30 gal (114 L) |
18.6 - 19.6 in (472 - 498 mm) |
1.25 W/in² (0.19 W/cm²) |
Poly |
Up to 160°F (71°C) |
| DPCS15 |
55 gal (200 - 208 L) |
22.3 - 23.2 in (566 - 589 mm) |
1.25 W/in² (0.19 W/cm²) |
Poly |
Up to 160°F (71°C) |
Additional Information:
| SKU |
Voltage |
Certification |
Plug Type |
| DHCS10 |
120V |
CE (Models with bare wire leads), cRUus (Up to 392°F/200°C), REACH, RoHS |
NEMA 5-15 |
| DHCS11 |
120V |
cRUus (Up to 392°F/200°C), REACH, RoHS |
NEMA 5-15 |
| DHCS13 |
120V |
cRUus (Up to 392°F/200°C), REACH, RoHS |
NEMA 5-15 |
| DHCS15 |
120V |
cRUus (Up to 392°F/200°C), REACH, RoHS |
NEMA 5-15 |
| DPCS10 |
120V |
CSA, cURus, IP54 |
NEMA 5-15 |
| DPCS11 |
120V |
CSA, cURus, IP54 |
NEMA 5-15 |
| DPCS13 |
120V |
CSA, cURus, IP54 |
NEMA 5-15 |
| DPCS15 |
120V |
CSA, cURus, IP54 |
NEMA 5-15 |
