Digital X-ray Generator

Do you have a Digital X-ray Generator you want to sell?

We buy used equipment! Learn about selling

Manufactured by: Avante

Category: Portable X-Ray Generators

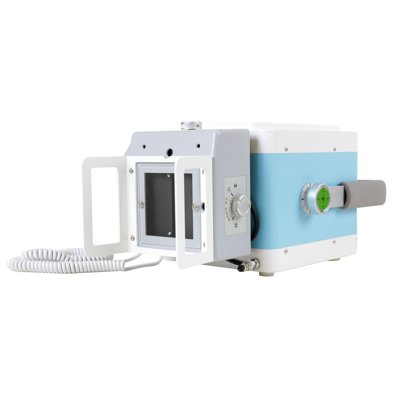

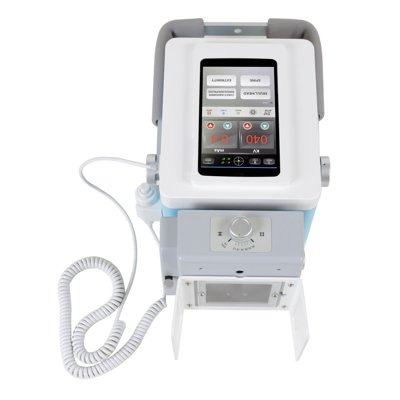

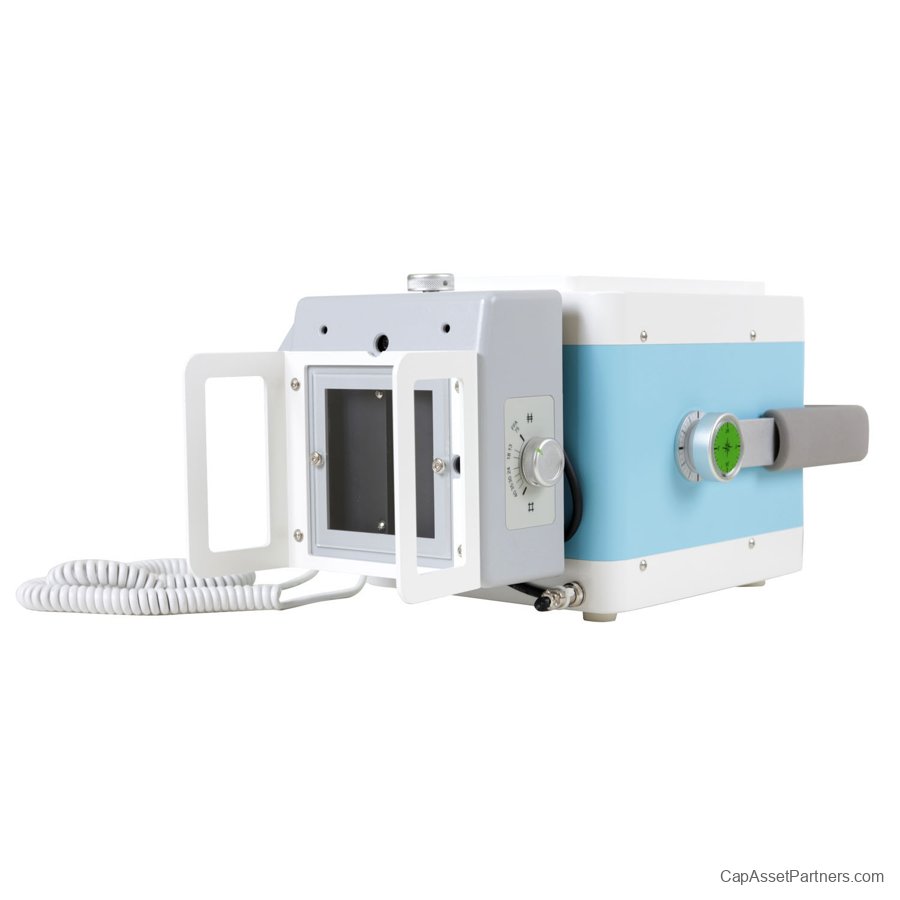

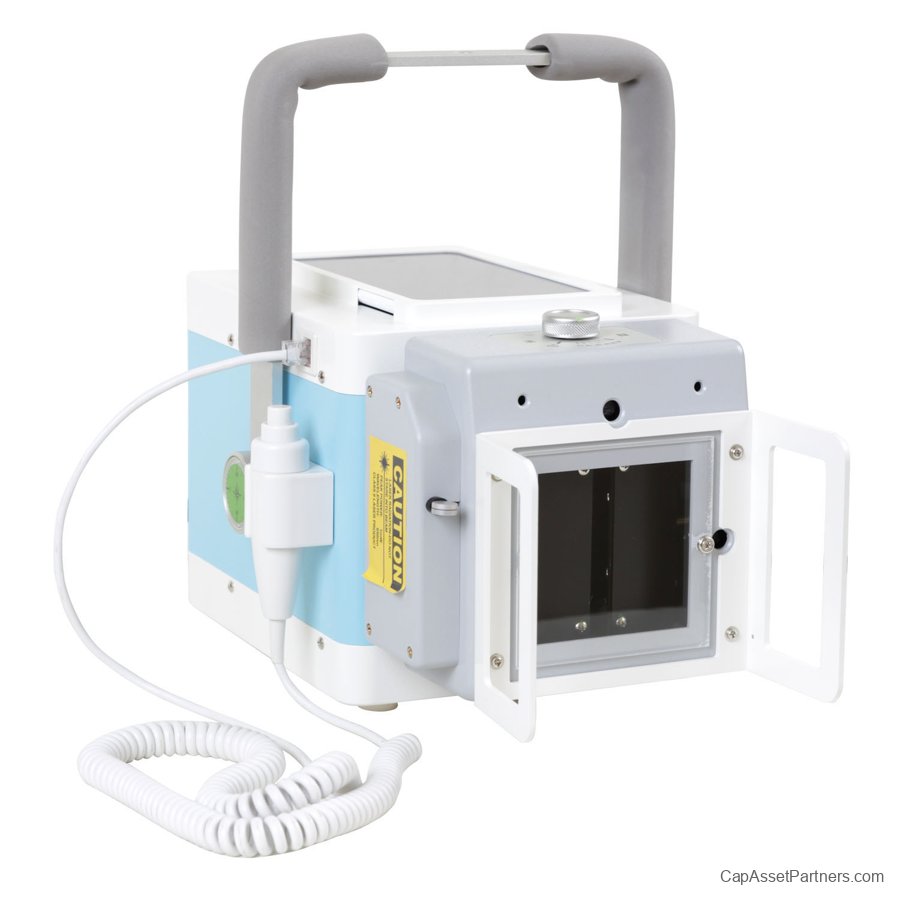

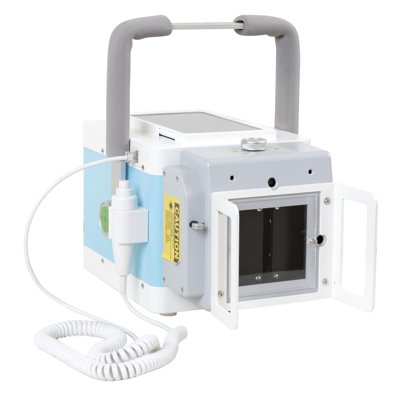

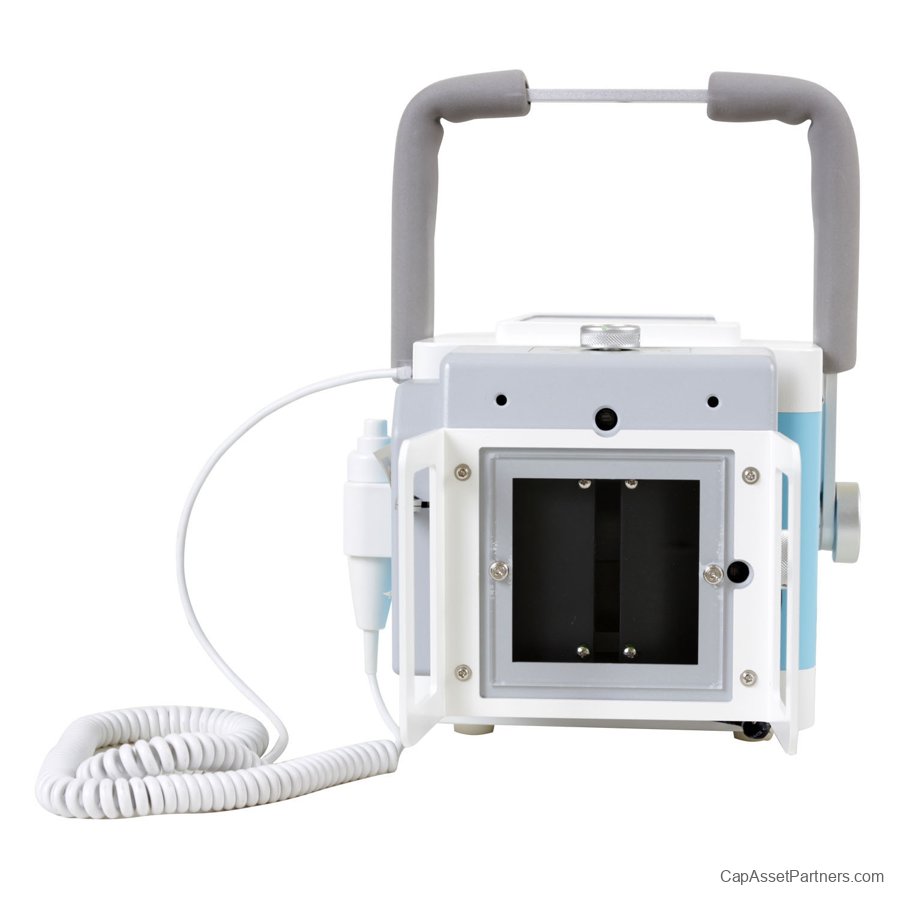

Avante Digital X-ray Generator
Avante Digital X-ray Generator
Avante Digital X-ray Generator
Avante Digital X-ray Generator
Avante Digital X-ray Generator
Avante None - Portable X-Ray Generators
Avante None - Portable X-Ray Generators
Avante None - Portable X-Ray Generators
Avante None - Portable X-Ray Generators
Avante None - Portable X-Ray Generators

Innovative, Ultra-Light, High-Frequency Portable X-Ray System


Discover superior imaging and exceptional performance with our advanced Digital X-Ray Generator. Designed for optimal accuracy and reproducibility, this portable x-ray system ensures long-term stability, making it an essential tool for any medical facility. Experience a new standard in diagnostic imaging that prioritizes patient safety and image quality.


Features




    • Innovative, ultra-light design facilitates easy transport and maneuverability.

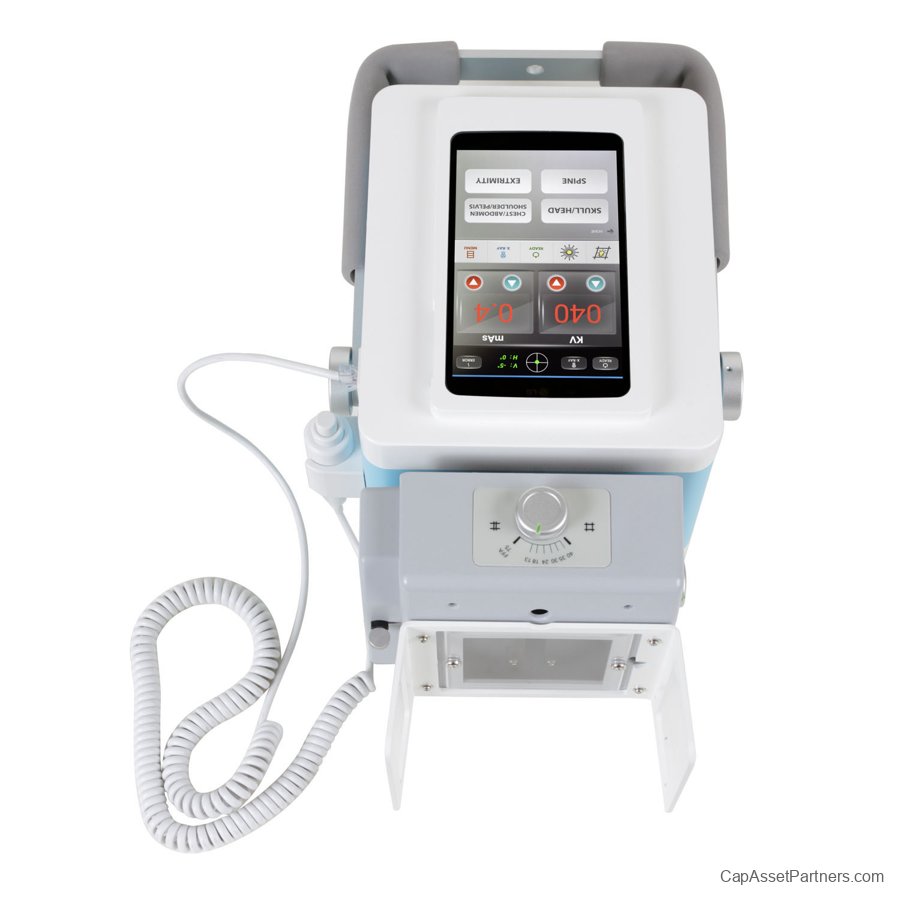

    • Built-in touchscreen interface provides clear access to x-ray settings and diagnostic data.
    • Rapid kV rising time effectively reduces unnecessary radiation exposure while delivering exceptional image quality.
    • User-friendly operating console simplifies the selection and adjustment of x-ray parameters.


    • Durable construction ensures reliable performance in demanding clinical environments.
    • Equipped with automatic calibration and DAP display functions for enhanced usability.
    • Includes x-ray unit, hand switch, and mobile stand for convenient operation.
    • Optional footswitch available for added ease of use during procedures.

Upgrade your imaging capabilities with the portability and innovation of our Digital X-Ray Generator, designed to meet the diverse needs of the modern healthcare environment.

Digital X-ray Generator Specifications

General:
  • Max output power: 2.8 kW
  • Generator frequency: 70 kHz
  • kV Range: 40 ~ 120 kV
  • mA Range: 12 ~ 40 mA
  • mAs Range: 0.4 ~ 100 mAs
  • Focal spot: 1.2 mm x 1.2 mm (0.047 in x 0.047 in)
  • Target angle: 16°

  • Anode heat storage: 50 kHU
  • Input voltage: 110 V / 220 V
  • Phase / frequency: Single / 50 ~ 60 Hz
  • Dimensions: 14.2 in x 7.9 in x 7.5 in (360 mm x 200 mm x 190 mm)
  • Packing size: 20.5 in x 15.8 in x 13 in (520 mm x 400 mm x 330 mm)
  • Net weight: 26.5 lb (12 kg)
  • Gross weight: 48.6 lb (22 kg)

Hand Switch:
  • Type: Two-step x-ray exposure hand switch
  • Working voltage (AC/DC): 125 V / 30 V
  • Working current (AC/DC): 1 A / 2 A

Mobile Stand:
  • Arm angle: 0° ~ 150°
  • Max arm vertical height: 4.6 ft (1.4 m)
  • Maximum load capacity: 66.1 lb (30 kg)

  • Wheel size: 50 mm (2 in), width 0.9 in (23 mm)
  • Weight (mobile stand): 25.6 lb (11.6 kg)
